Square D™ QO342L225GRB

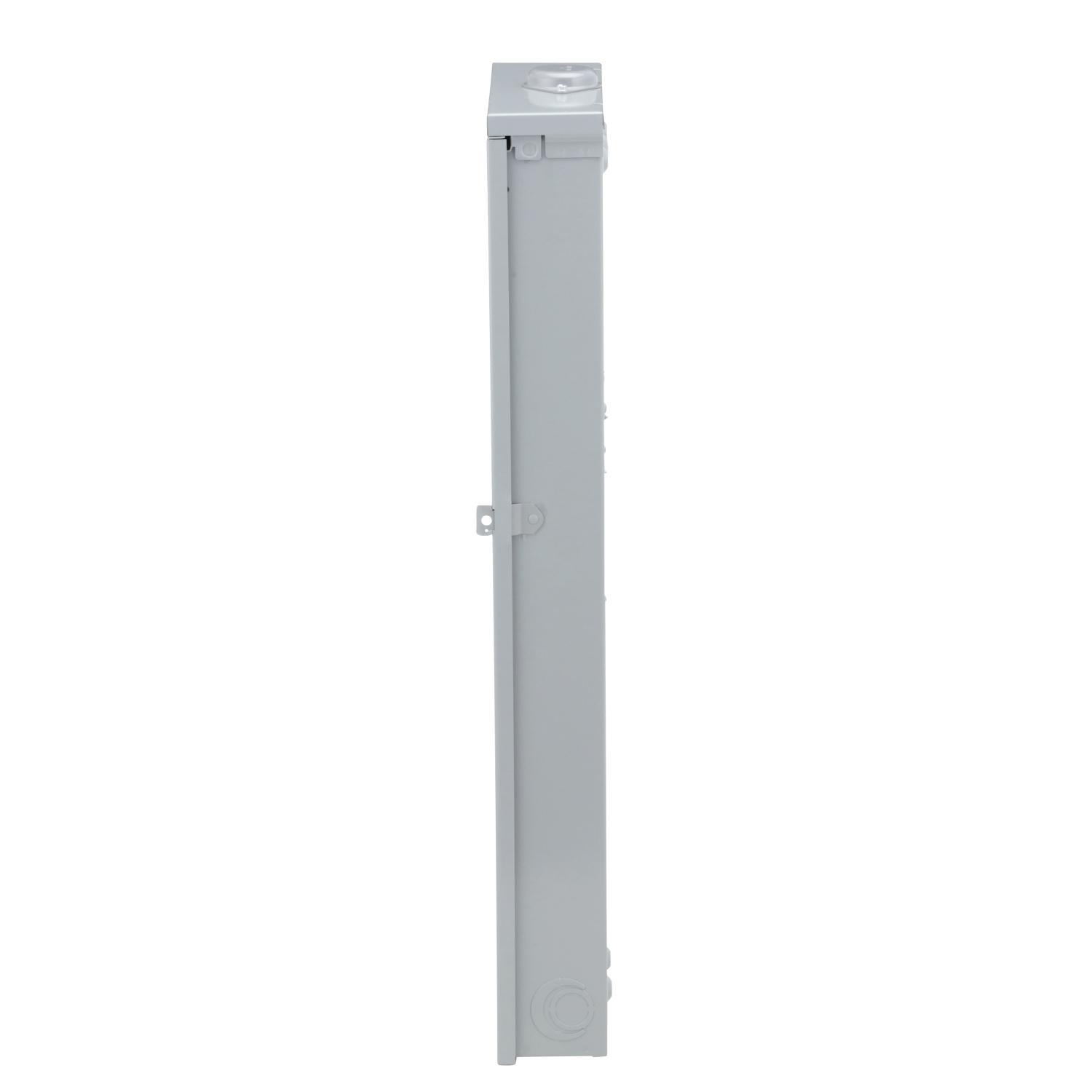

Square D™ QO® QO342L225GRB 3-Phase Fixed Main Lug Load Center With Surface Cover, 208Y/120 VAC/240/120 Delta VAC/240 Delta VAC, 225 A, 65 kA Interrupt
Brand: Square D™
Item ID: 57340
MPN: QO342L225GRB
Login for Price
Features
- Aluminum bus construction on fixed mains panels
- Shielded one piece tin plated aluminum bus construction on convertible mains panels, an industry exclusive for protection and performance
- Service entrance equipment capable panels
- Split branch neutral for clutter-free wiring
- Top or bottom feed by rotating convertible mains panels 180 deg
- Single captive screw interior mounting on indoor panels to ease removal
- Straight in wiring to help minimize service cable installation
- Side hinge doors on outdoor convertible main panels
- Gray baked enamel surface finish
- Provisions for door lock on convertible mains panel covers
Description
Square D™ QO® Main Lug Load Center, 3-Phase Fixed, 208Y/120 VAC/240/120 Delta VAC/240 Delta VAC, 225 A, 50/60 Hz Frequency, 65 kA Interrupt, 42 Circuits, QO/MLO Breaker, Panel Breaker Mounting, 3/4-Wire Wiring Configuration, 42 Spaces, 4 AWG to 300 kcmil Al/Cu Wire, NEMA 3R Enclosure, 8R Enclosure Box, Galvanized Steel Housing Material, 14.75 in W x 4.52 in D x 37.98 in H Dimensions
Specifications
Amperage Rating |
225 A |
Breaker Mounting |
Panel |
Breaker Type |
QO/MLO |
Dimensions |
14.75 in W x 4.52 in D x 37.98 in H |
Enclosure Box Size |
8R |
Enclosure Type |
NEMA 3R |
Frequency Rating |
50/60 Hz |
Housing Material |
Galvanized Steel |
Interrupt Rating |
65 kA |
Number of Circuits |
42 |
Number of Spaces |
42 |
Type |
3-Phase Fixed |
Voltage Rating |
208Y/120 VAC/240/120 Delta VAC/240 Delta VAC |
Wire Size |
4 AWG to 300 kcmil Al/Cu |
Wiring Configuration |
3/4-Wire |
Standard Approval |
RoHS Compliant|UL Listed|NOM Certified|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov |
Application |
For outdoor, residential, commercial, industrial requirements to protect electrical systems, equipment and people applications |
