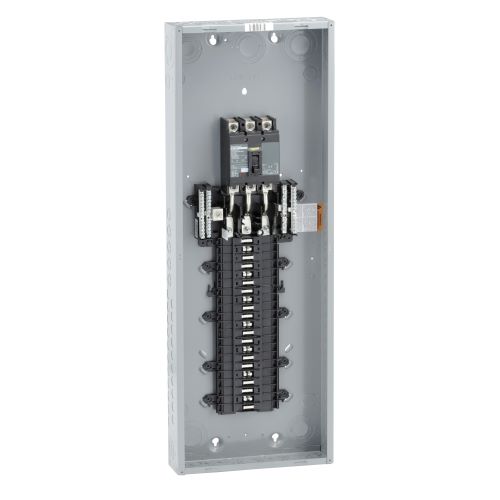

Square D™ QO342MQ200
Square D™ QO™ QO342MQ200 3-ph Convertible Main Breaker Load Center, 208Y/120 VAC, 240/120 Delta VAC, 240 Delta VAC, 200 A, 1 Pole, 25 kA Interrupt
Brand: Square D™
Item ID: 311636
MPN: QO342MQ200
Login for Price
Features
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Service entrance equipment capable panels
- Straight in wiring to help minimize service cable installations
- Single captive screw interior mounting on indoor panels to ease removal
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating enclosure
- Does not accepts plug-on neutral circuit breaker
- Lug electrical connection
- 208Y/120 VAC, 120/240 VAC delta, 240 VAC delta
- Aluminum/copper wire
Description
QO™ Circuit Breaker Load Centers from Square D™ are Underwriters Laboratories (UL) Listed panel boards. They are designed to meet residential, commercial and industrial requirements to protect electrical systems, equipment and people.
Square D™ QO™ Main Breaker Load Center, 3-ph Convertible, 208Y/120 VAC, 240/120 Delta VAC, 240 Delta VAC, 200 A, 1 Pole, 50/60 Hz, 25 kA Interrupt, 42 Circuits, MB/QO Breaker, Panel Breaker Mounting, 4-Wire Wiring Configuration, 42 Spaces, 4 AWG to 300 kcmil Wire, Bolt-On Mount, NEMA 1, Sheet Steel Housing, 14.25 in W x 3.75 in D x 39.37 in H
Specifications
Amperage Rating |
200 A |
Breaker Mounting |
Panel |
Breaker Type |
MB/QO |
Dimensions |
14.25 in W x 3.75 in D x 39.37 in H |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Housing Material |
Sheet Steel |
Interrupt Rating |
25 kA |
Mounting Type |
Bolt-On |
Number of Circuits |
42 |
Number of Poles |
1 |
Number of Spaces |
42 |
Type |
3-ph Convertible |
Voltage Rating |
208Y/120 VAC, 240/120 Delta VAC, 240 Delta VAC |
Wire Size |
4 AWG to 300 kcmil |
Wiring Configuration |
4-Wire |
Standard Approval |
RoHS Compliant|UL Listed|CE Certified|NOM Certified|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f0d2f87e8b649d95144f5f81986aeea5856f69cadf0c9db65c542130b8de412d.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_19b0ed725c881192a8ac6ef5021ab73d60fcb20281f6d836ba154d6de805270d.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO312L125G_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO312L125G_Technical_Bulletin.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO403L60NS_Technical_Bulletin.pdf
