Square D™ QOE260GFINM

• The QO load center and circuit breaker family is designed to satisfy individual requirements with a comprehensive selection. Innovative, high quality features include: 3/4" circuit breaker width
• Single and three phase
• 30 to 400 amps
• 2 to 60 circuits
• Exclusive shielded copper bus features electro tin-plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
• Indoor (NEMA 1) and Rainproof (NEMA 3R) versions
• Flush or surface mount covers available in gray and white
• Mono-Flat covers for high-end solutions with an aesthetic pleasing design
• Full complement of accessories
• QO marketing trade name
• Main breaker load center type
• 10 kA max short circuit current rating
• Grounding bar (factory installed) ground bar
• 1NM box number

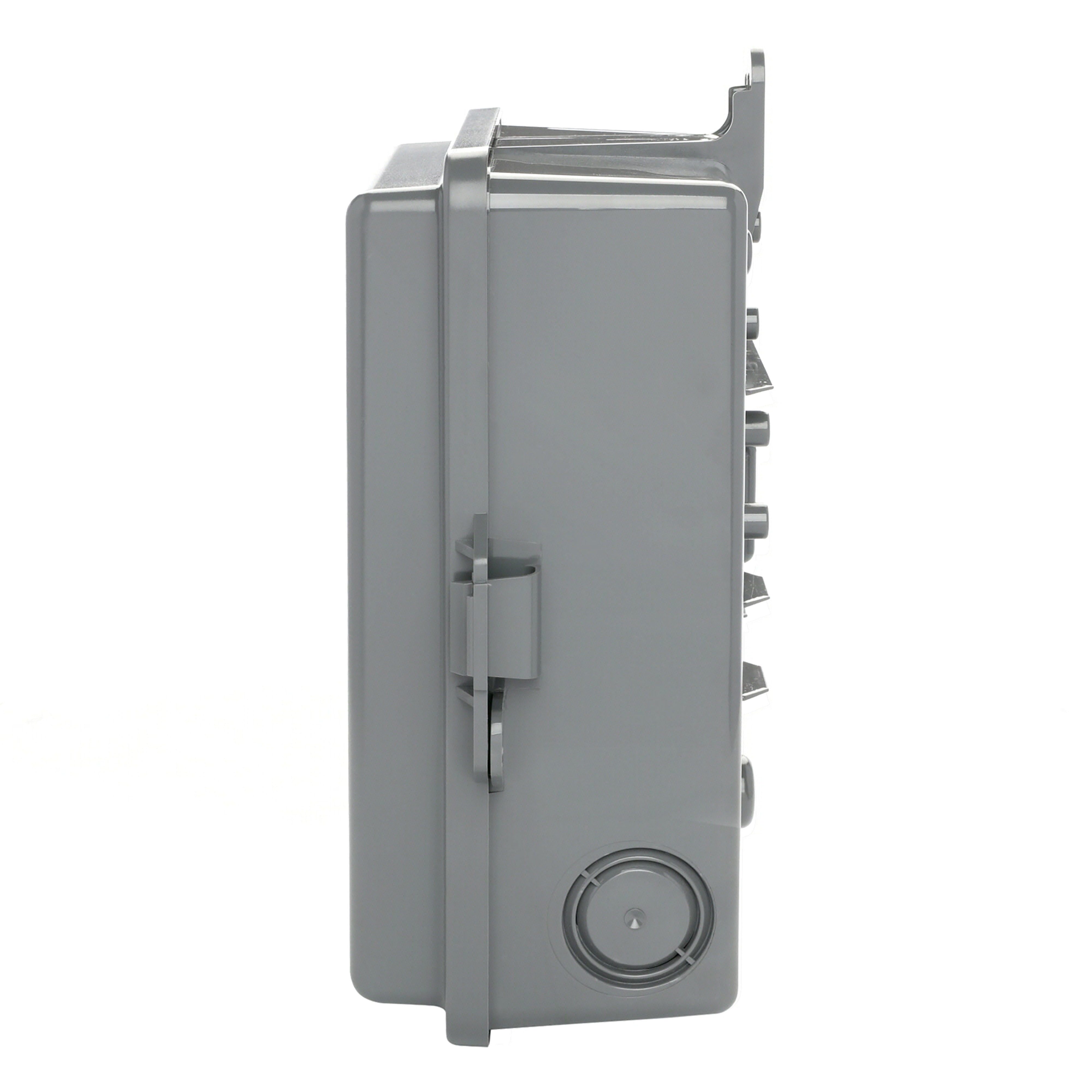

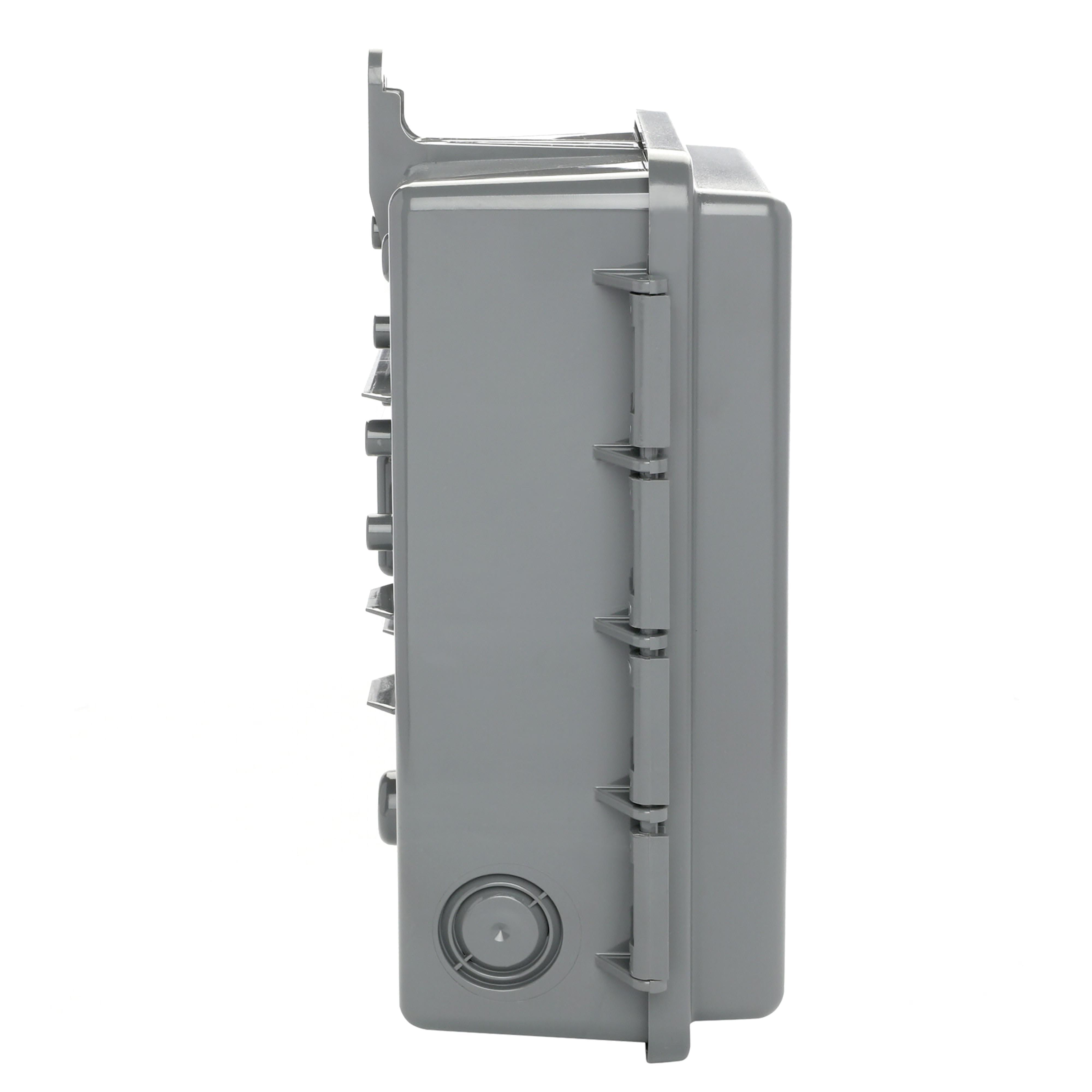

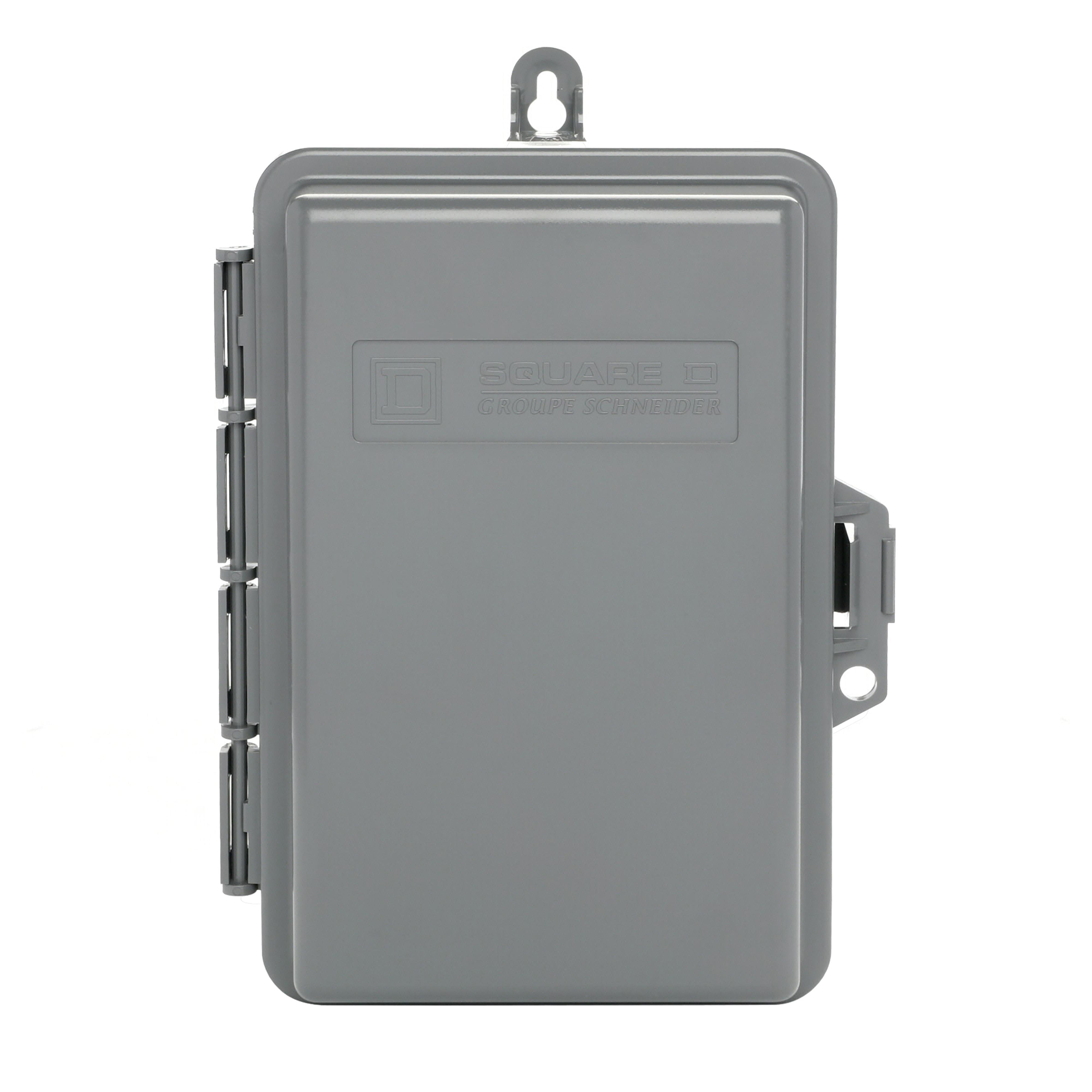

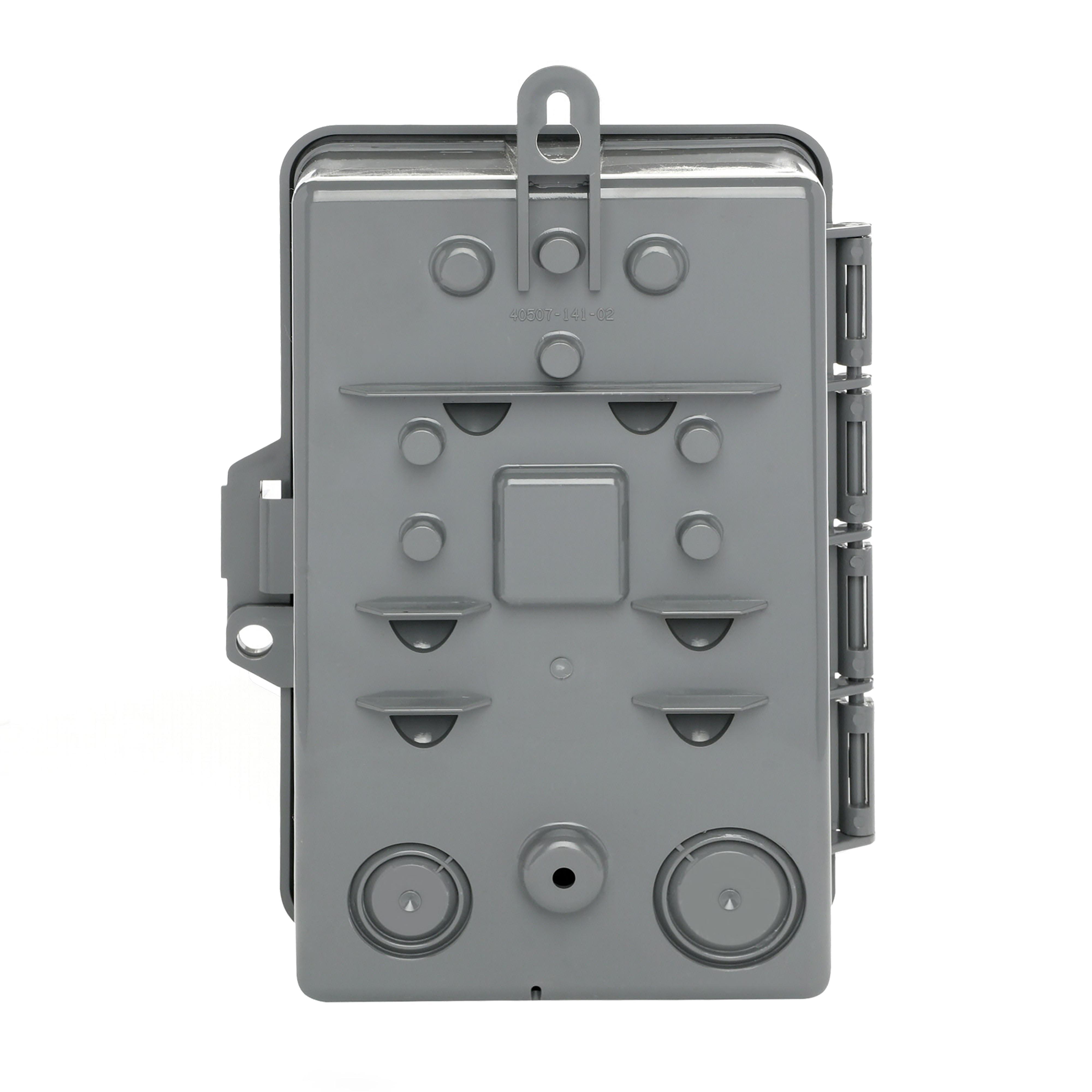

Square D™ QOE260GFINM, 120 to 240 VAC, 60 A, 10 kA Interrupt, Main Breaker Breaker, 3-wire Wiring Configuration, 2 Spaces, Weatherproof Enclosure, 9.17 in H x 6.54 in W x 3.90 in D Dimensions
