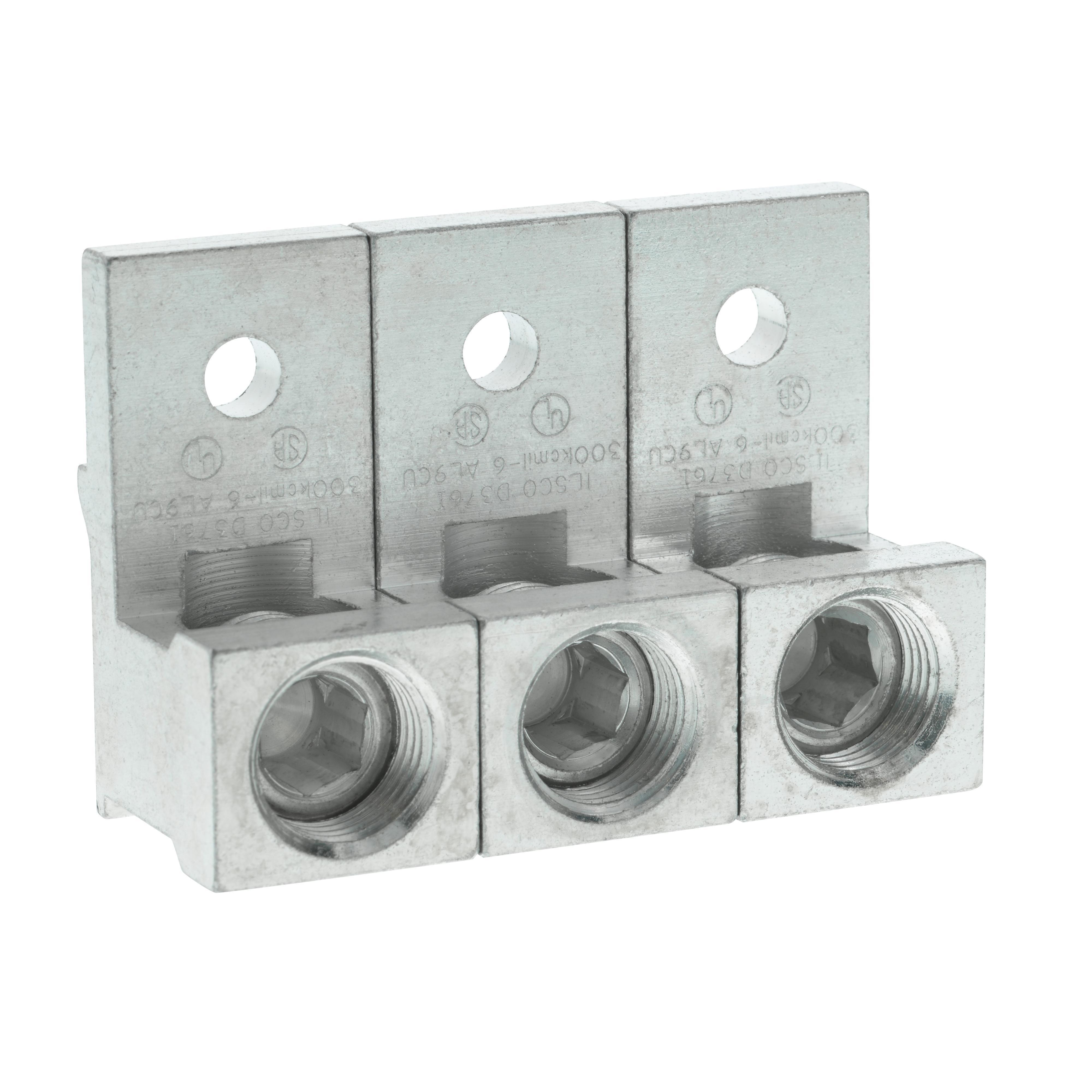

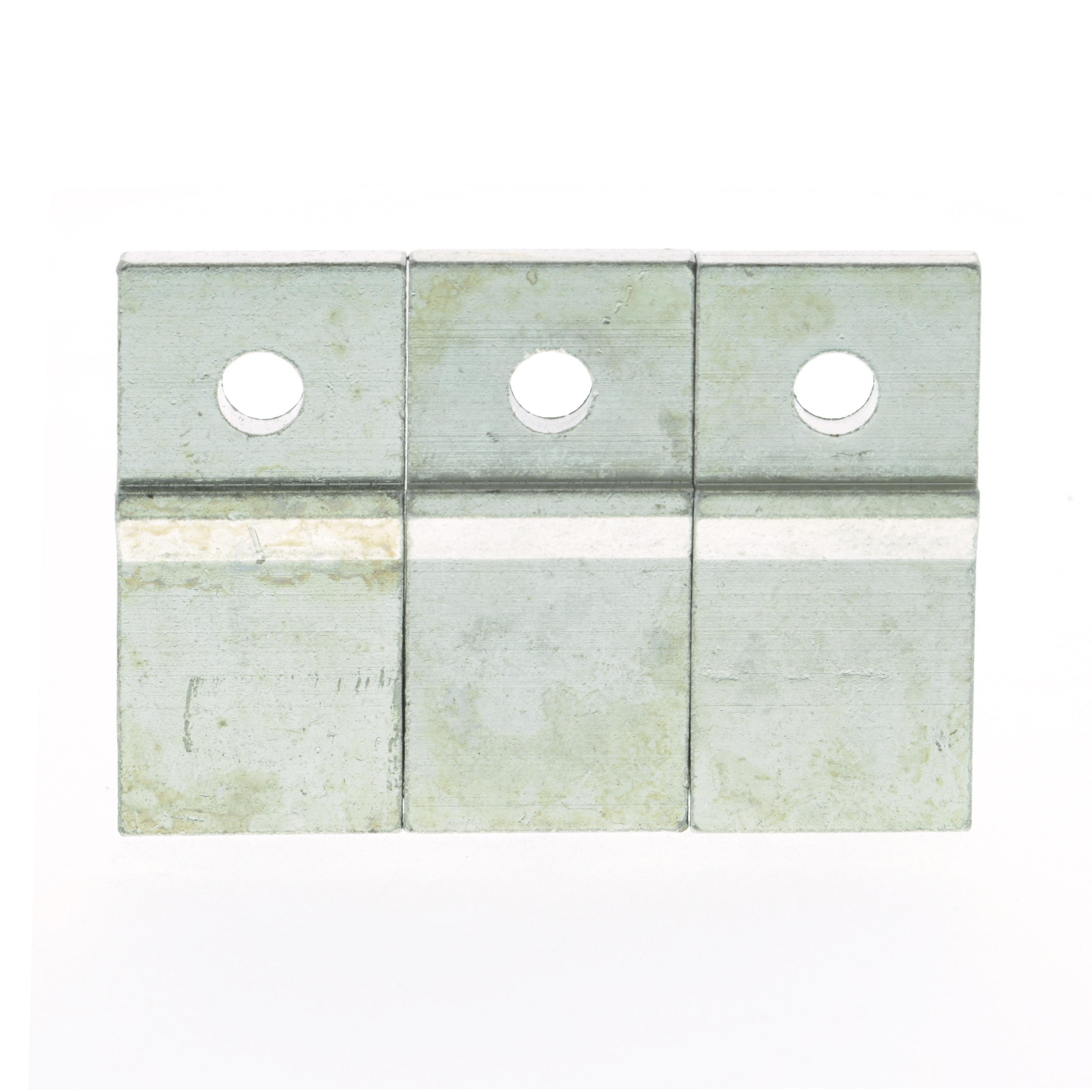

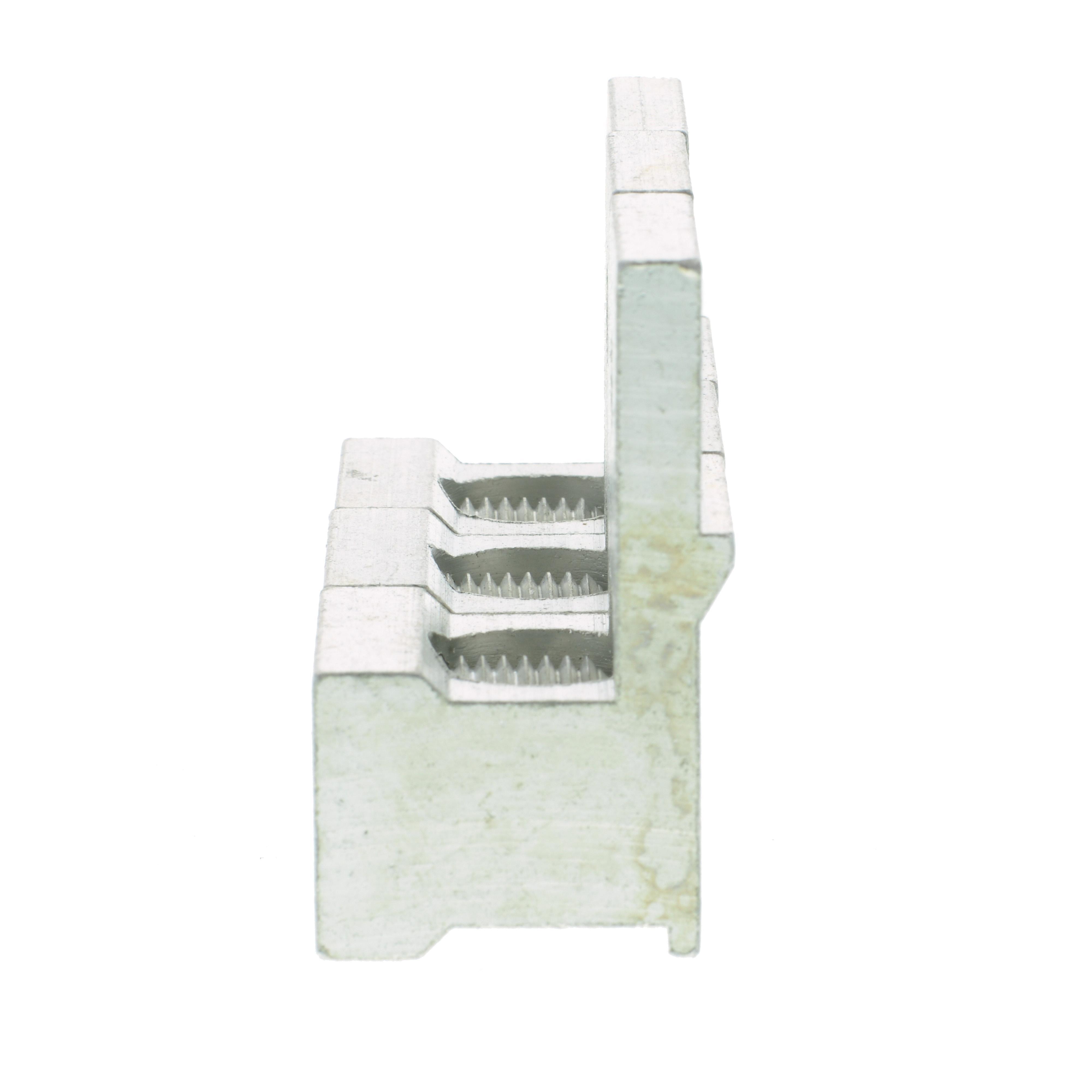

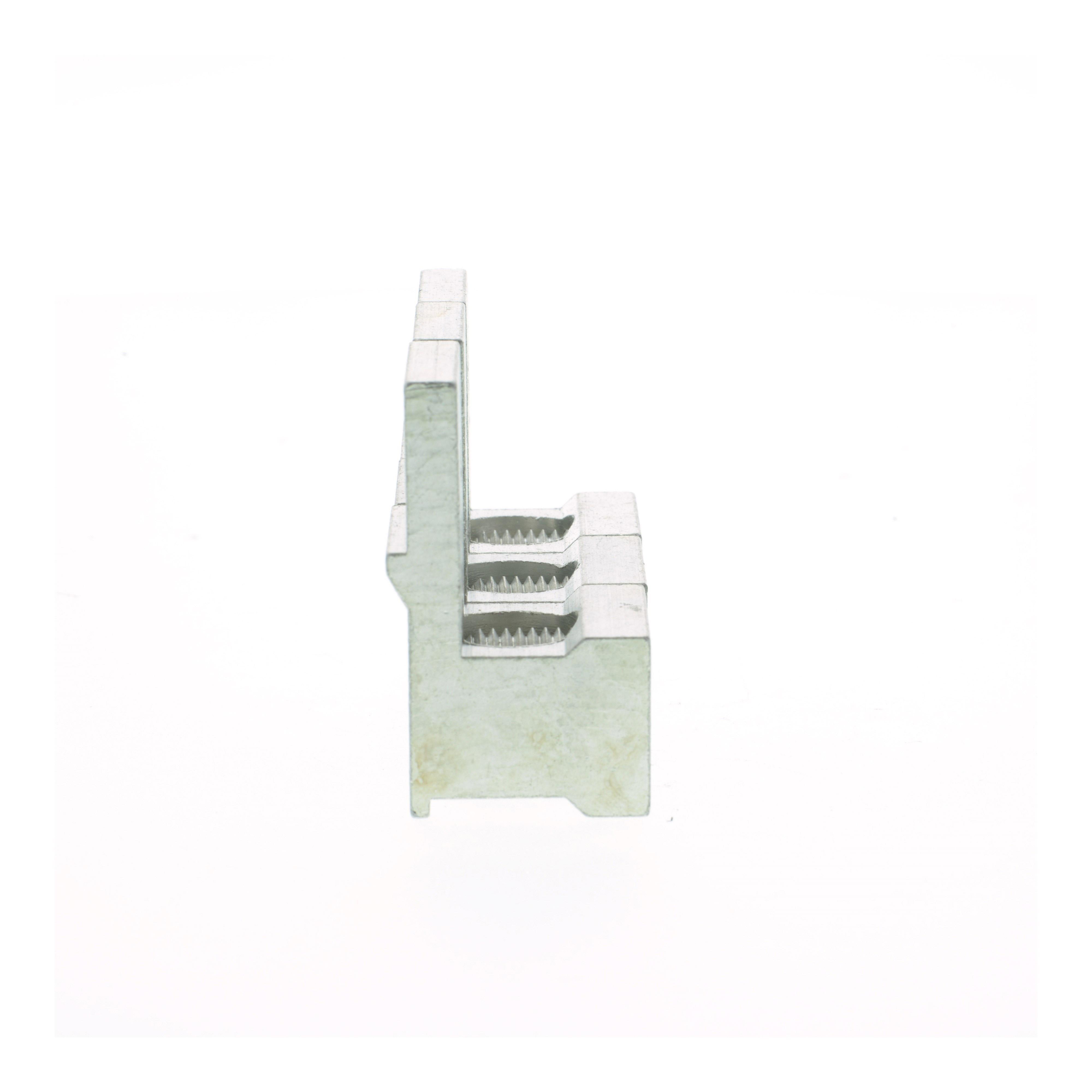

Square D™ QOL3225
Square D™ QOL3225 3-Phase Main Lug Kit, 6 AWG to 300 kcmil Al/Cu, For Use With QO™ and Homeline™ S1 Series 150/225 A QO330L200G Load Center
Brand: Square D™
Item ID: 475205
MPN: QOL3225
UPC: 785901737629
Login for Price
Description
Square D™ Main Lug Kit, 3-Phase, 6 AWG to 300 kcmil Al/Cu Conductor, For Use with: QO™ and Homeline™ S1 Series 150/225 A QO330L200G Load Center
Specifications
Conductor Range |
6 AWG to 300 kcmil Al/Cu |
Suitable For Use With |
QO™ and Homeline™ S1 Series 150/225 A QO330L200G Load Center |
Type |
3-Phase |
Standard Approval |
RoHS Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Indoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6eb0814ee80ee6cd8db575ffc9f0bf676471f5dcc44bcba426f32befa7e445cf.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_992057316676c5abe2e0065eeeecd74af38b7e85250af4f40ac1f89fac053797.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOL3225_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOL3225_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOL3225_Instruction_Installation_Manual.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_CR1F630F7_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOL3225_RoHS.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3a3e340e4808bb22b55ba17e898e21443c7070c746d2da955e28dce440637d5d.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOL3225_Specification_Sheet.pdf
