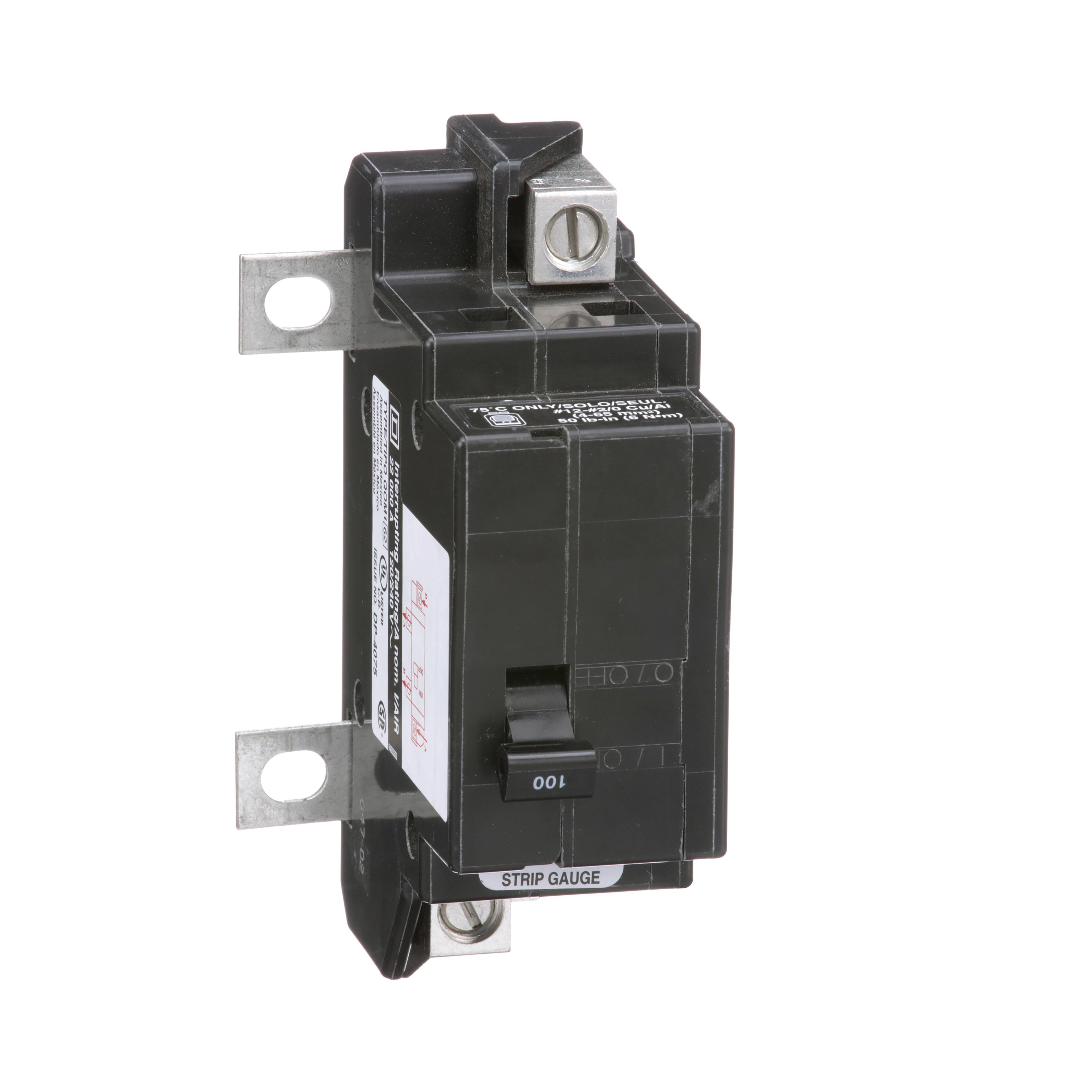

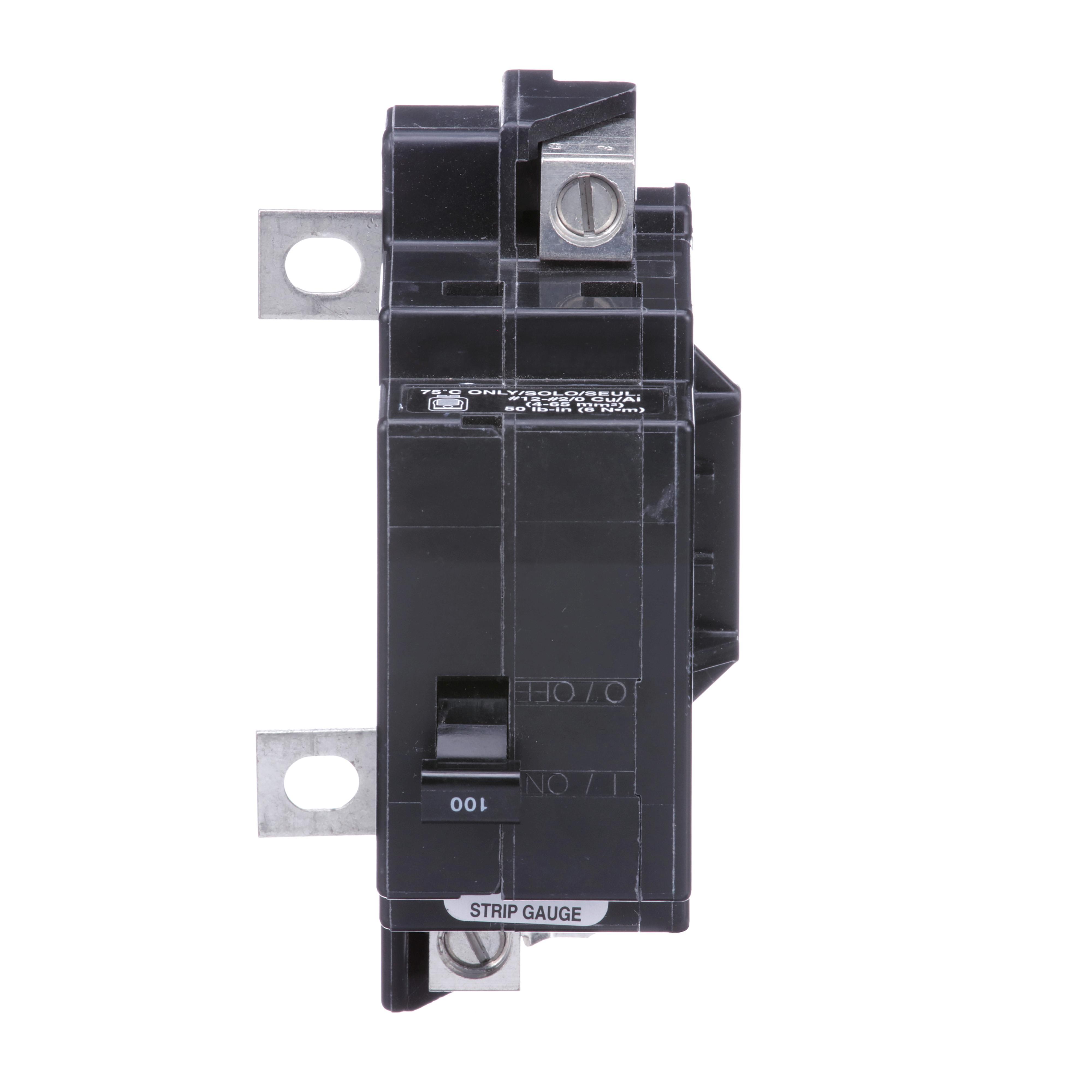

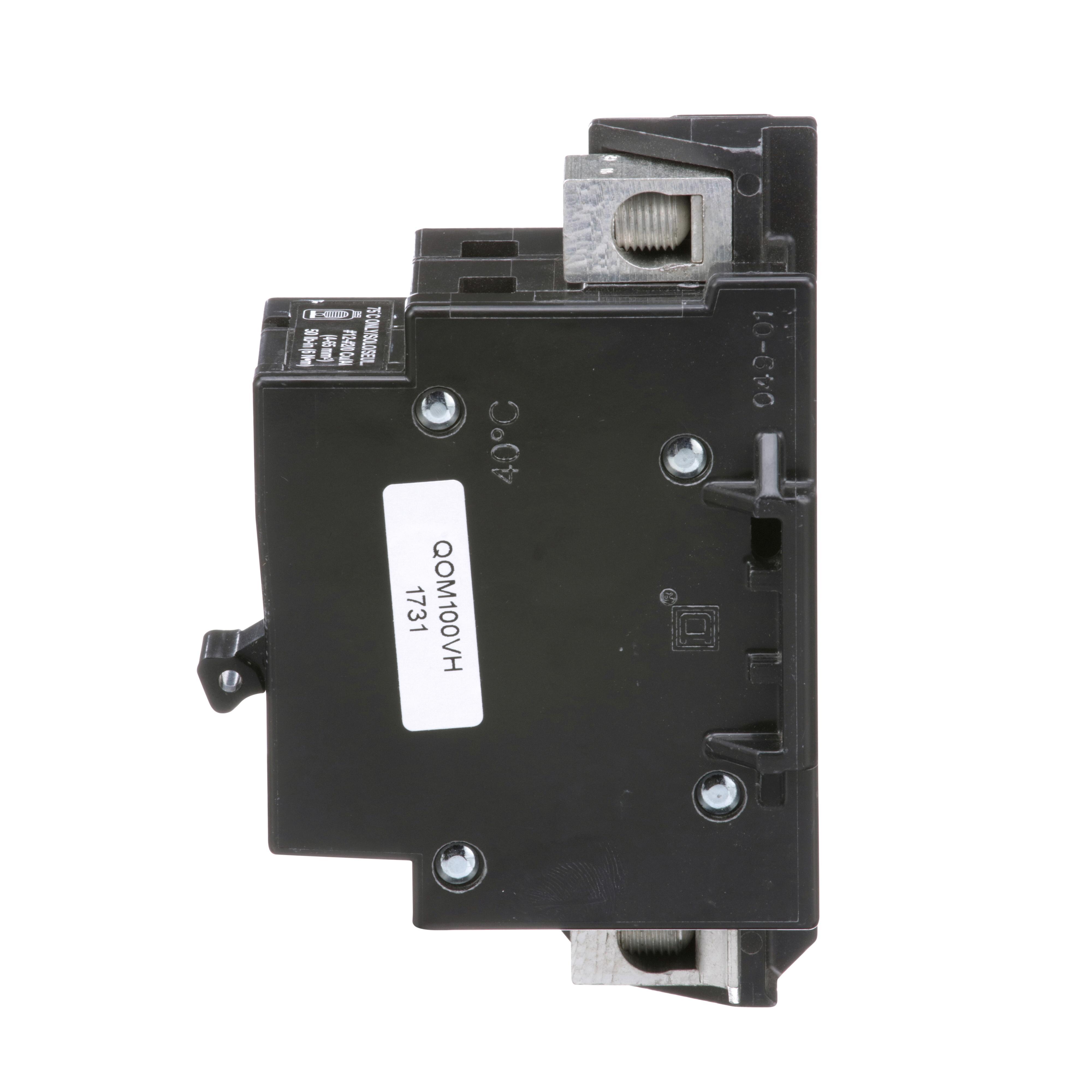

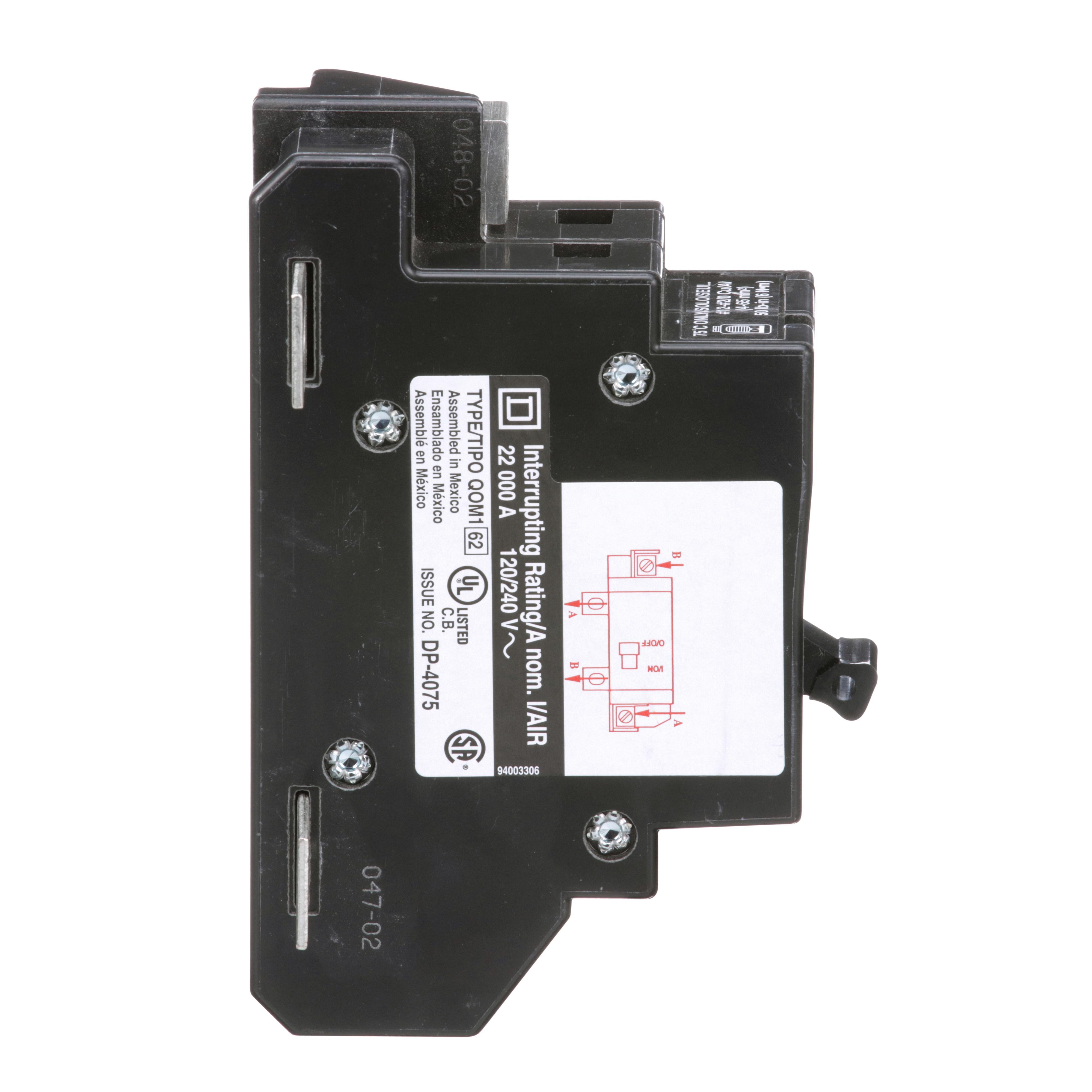

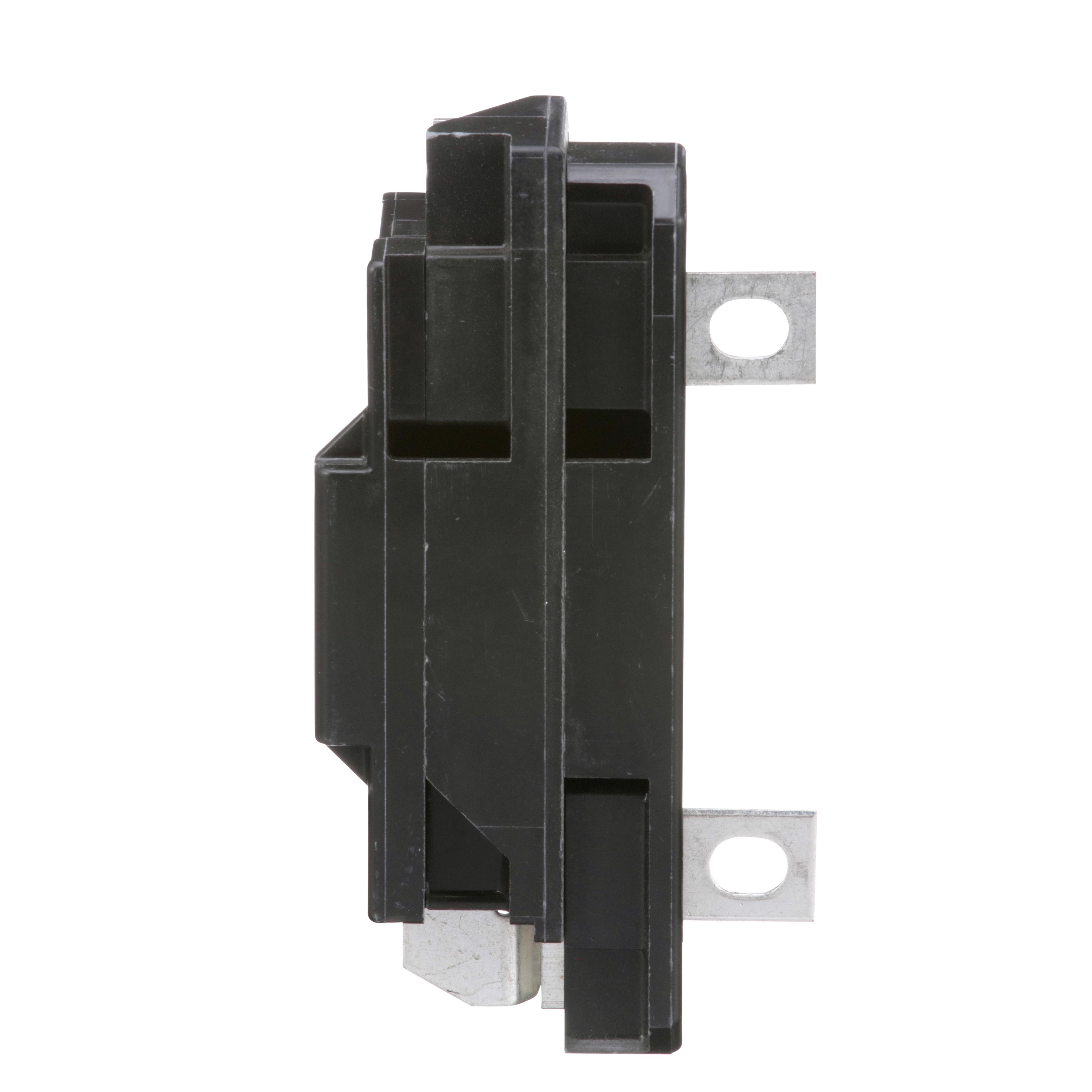

Square D™ QOM100VH
Square D™ QOM100VH Standard 2-Pole Miniature Circuit Breaker, 240 VAC, 100 A, 22 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
Brand: Square D™
Item ID: 57711
MPN: QOM100VH
Login for Price
Features
- 4 to 2/0 AWG aluminum/copper wire
- 50 lb-in Lug torque
- Standard
Description
Square D™, QOM100VH, 2-Pole Miniature Circuit Breaker, Standard, 240 VAC, 100 A, 50/60 Hz Frequency, 22 kA Interrupt, QOM Frame, Thermal/Magnetic Trip, 2 Pole, 1 ph, Toggle Actuator, Box Lug Connection, 4 to 2/0 AWG Wire, Bolted-On Mounting, 40 deg C, 5.09 in H x 5 in W x 3.47 in D Dimensions, Black
Specifications
Actuator Type |
Toggle |
Amperage Rating |
100 A |
Color |
Black |
Connection Type |
Box Lug |
Dimensions |
5.09 in H x 5 in W x 3.47 in D |
Frame |
QOM |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
22 kA |
Mounting Type |
Bolted-On |
Number of Poles |
2 |
Phase |
1 |
Temperature Rating |
40 deg C |
Trip Type |
Thermal/Magnetic |
Type |
Standard |
Voltage Rating |
240 VAC |
Wire Size |
4 to 2/0 AWG |
Standard Approval |
CSA Certified|UL Listed |
Application |
For load center main breaker |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO2150_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO1HPL_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO1HPL_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOB350VH_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOM100VH_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOM100VH_Specification_Sheet.pdf
