Square D™ QOM22225NRB

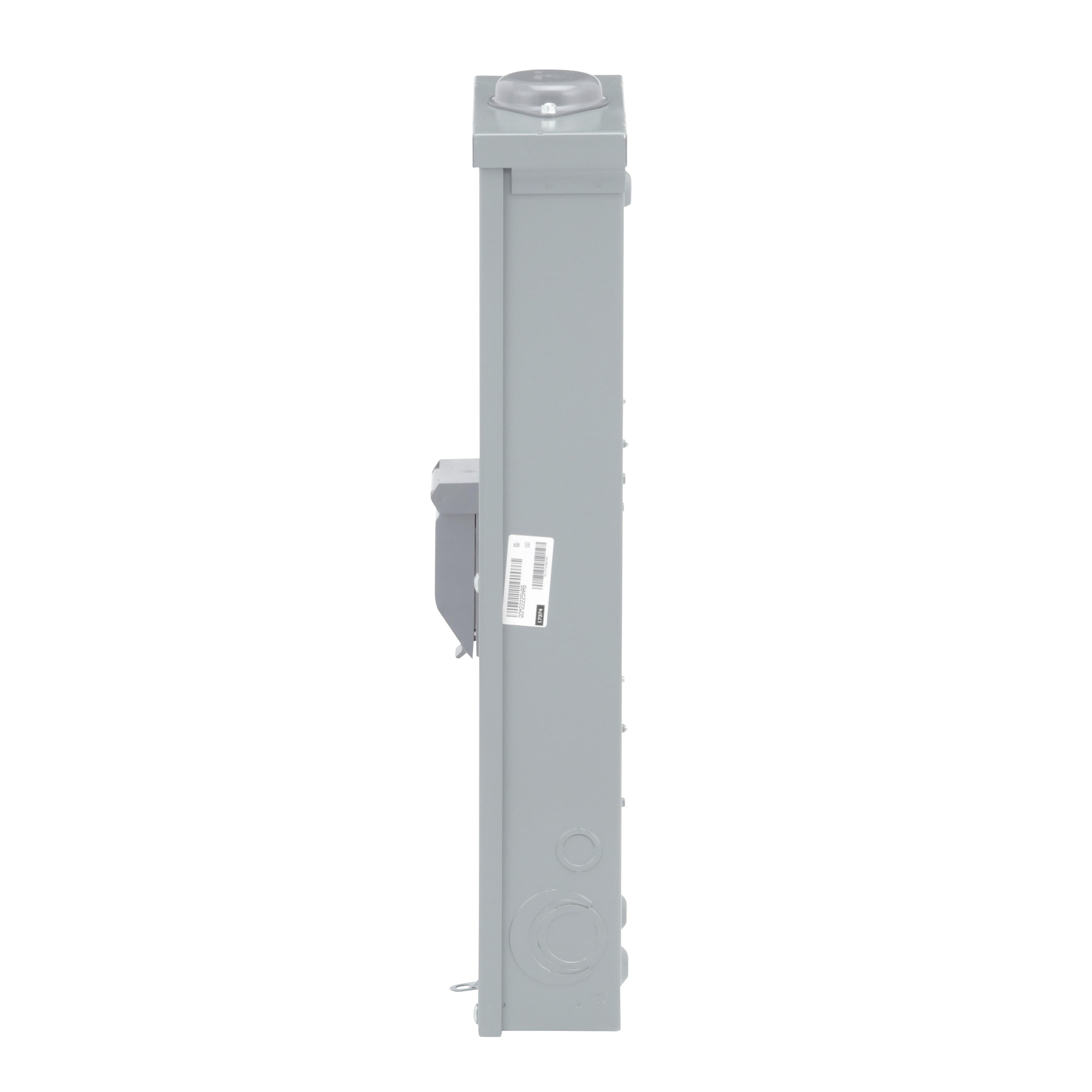

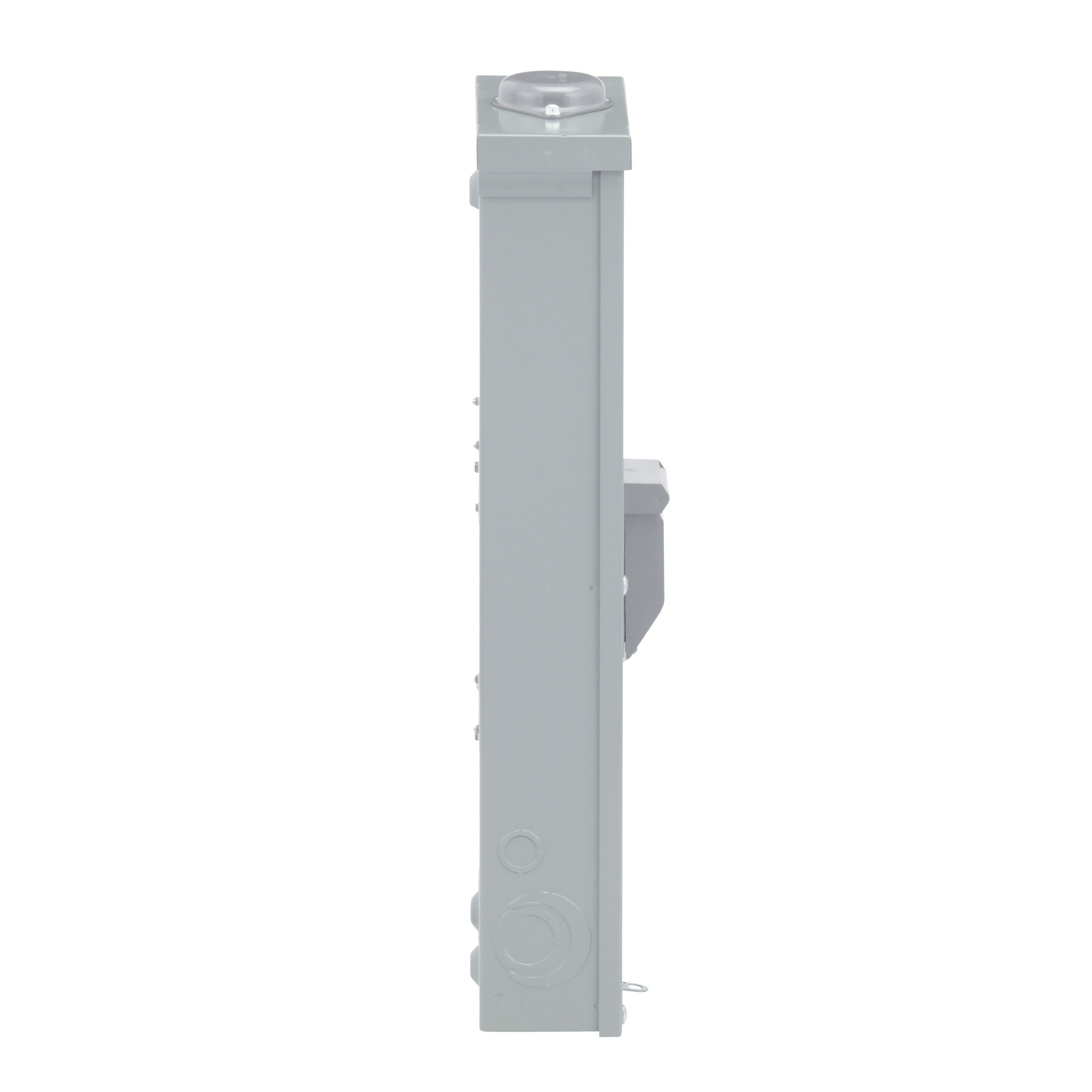

Square D™ QO™ QOM22225NRB Circuit Breaker Enclosure, 8.55 in W x 4.16 in D x 24-3/4 in H, NEMA 3R NEMA Rating, Steel
Brand: Square D™
Item ID: 525298
MPN: QOM22225NRB
UPC: 785901328872
Login for Price
Features
- 22 ka short circuit current
Description
Square D™ QO™ Circuit Breaker Enclosure, 8.55 in Width, 4.16 in D, 24-3/4 in Height, NEMA 3R, QOM2 Frame, 2 Pole, 100 to 225 A, 120/240 VAC, Surface Mount, Steel
Specifications
Depth |
4.16 in |
Electrical Ratings |
100 to 225 A, 120/240 VAC |
Frame |
QOM2 |
Height |
24-3/4 in |
Material |
Steel |
Mounting Type |
Surface |
NEMA Rating |
NEMA 3R |
Number of Poles |
2 |
Width |
8.55 in |
Standard Approval |
ECCN: EAR99|REACH Compliant|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Application |
Industrial and Residential Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f7826dbb977b3b87fd59c5680a3c3fa36de7c8b0a8e1dcf0ade266d406d80667.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ac85b636090fd92dfeb2813be89076eb8bf3f6747d51cc6afc14448326033c94.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM24L70F_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HOM4080M200PTBP_Instruction_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_21742aca60d089a24a41c9a6c524a3bc797acb4a8156d43bf3d9edb6ac716c5d.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO240EPD2100_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QO240EPD2100_Owners_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOB350VH_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QOM22225NRB_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_37faabc13cdce226d6f12f6f367aa9b9c0b11de23a6862112e72ef6e4de3f4f4.pdf
