Square D™ QOSAMK
Square D™ QO® QOSAMK Surge Arrester Mounting Kit, For Use With QO™ Load Center and Circuit Breaker
Brand: Square D™
Item ID: 57794
MPN: QOSAMK
UPC: 785901002987
Login for Price
Description

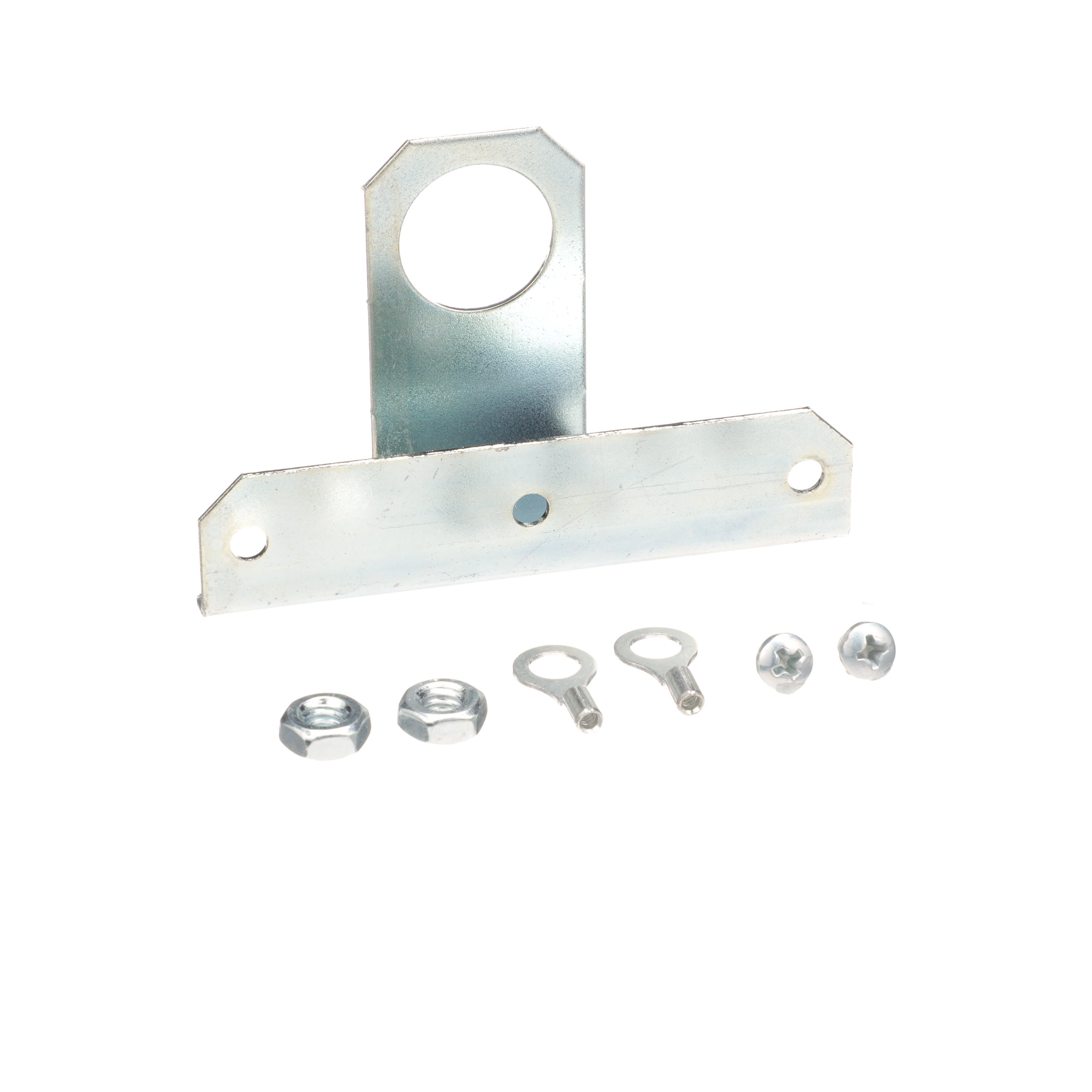

Square D™ QO® Surge Arrester Mounting Kit, For Use With: QO™ Load Center and Circuit Breaker
Specifications
Clamping Voltage |
1020 VAC |
Color |
Black |
Dimensions |
3.6 in W x 3.4 in D x 3.1 in H |
Electrical Ratings |
600 VAC |
Enclosure Type |
NEMA 4X |
Environmental Conditions |
149 deg F Operating Temperature |
Frequency Rating |
50/60 Hz |
Indicator Type |
LED |
Material |
Plastic |
Modes of Protection |
L-L |
Mounting Type |
Nipple |
Nominal Discharge Current |
10 kA |
Number of Poles |
3 |
Number of Wires |
3 |
Peak Surge Current |
36 kA |
Phase |
3 |
Series |
SDSA |
Short Circuit Current Rating |
200 kA |
Suitable For Use With |
QO™ Load Center and Circuit Breaker |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Application |
For mounting SDSA1175 surge arrester into ground bar mounting holes on convertible main circuit breaker load centers |
