Square D™ QOU130

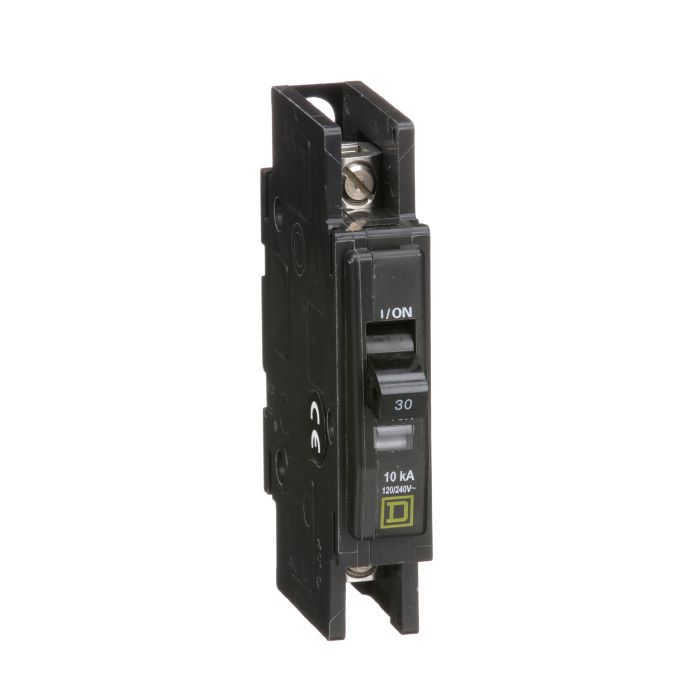

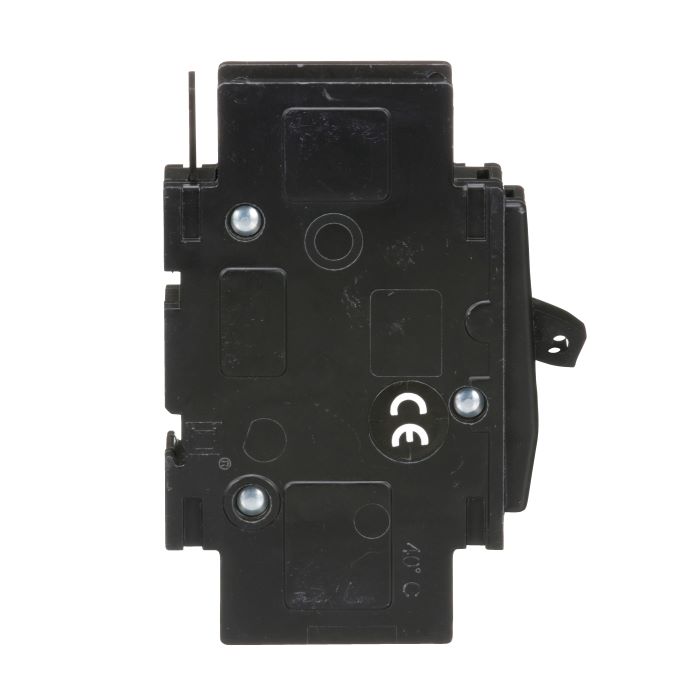

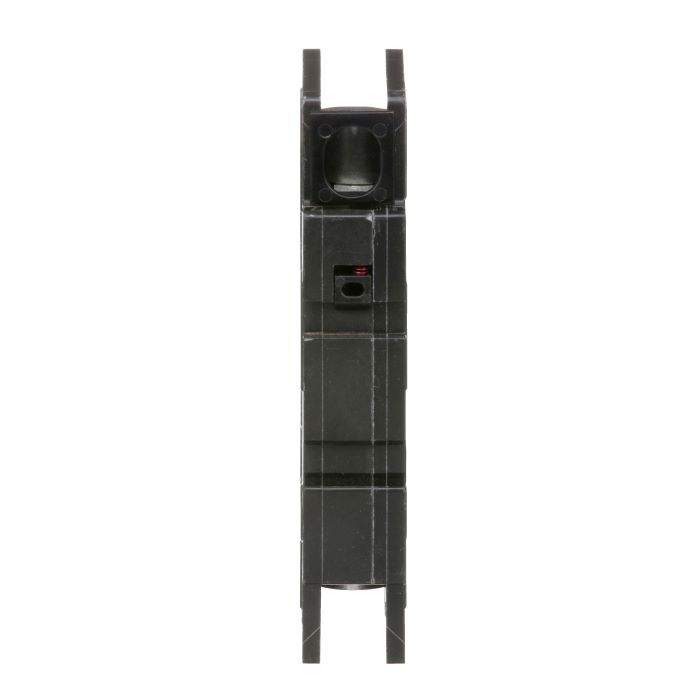

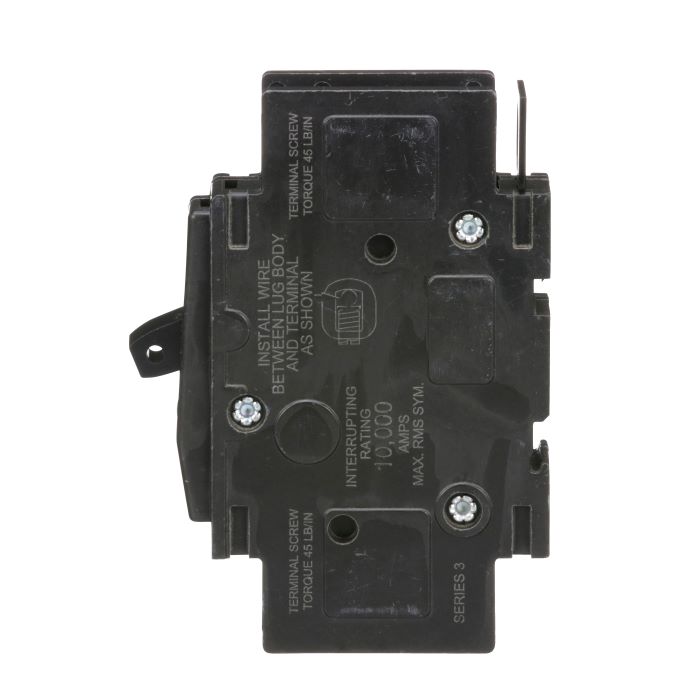

Square D™ QO™ QOU130 Type QOU Standard Unit Mount Miniature Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 1 Pole, Thermal/Magnetic Trip
Brand: Square D™
Item ID: 57819
MPN: QOU130
Login for Price
Features
- Miniature molded case circuit breakers are intended for use in residential and commercial applications
- QOU miniature circuit breakers are unit mount (lug/lug) thermal magnetic circuit breakers
- Provide a means to manually open a circuit
- Automatically open a circuit under overload or short circuit conditions
- Feature common tripping of all poles
- Visi-Trip® trip indicator
- Lugs at both ends (cable-in/cable-out construction)
- Operate in any position
- Single handle with internal common trip
- Reversible line and load lugs
- Field installable quick connectors
- 5 kA at 277 VAC, 10 kA at 120/240VAC short circuit current rating
- 14 to 2 AWG aluminum/copper wire
Description
The Square D™ Extreme Duty QOU circuit breaker was developed specifically with the unique challenges of harsh environments in mind. The circuit breaker has specially constructed internal components that make it resistant to the damaging effects of high humidity and salt, which are common in commercial HVAC and wastewater treatment applications. The circuit breaker has passed a 500 hr salt spray test. The QOU circuit breaker is also appropriate for any application that endures a corrosive atmosphere or highly humid conditions, such as wastewater treatment. It is available in 30 or 60 A and can be used with standard QOU devices and accessories.
Square D™ QO™ Miniature Circuit Breaker, Type QOU Standard Unit Mount, 120/240 VAC, 30 A, 50/60 Hz, 10 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, 1 ph, Toggle Actuator, Box Lug, 14 to 2 AWG Wire, DIN Rail/Flush Mount, 104 deg F, 2.95 in L x 0.75 in W x 4.05 in H, Black
Specifications
Actuator Type |
Toggle |
Amperage Rating |
30 A |
Color |
Black |
Connection Type |
Box Lug |
Dimensions |
2.95 in L x 0.75 in W x 4.05 in H |
Frequency Rating |
50/60 Hz |
Interrupt Rating |
10 kA |
Mounting Type |
DIN Rail/Flush |
Number of Poles |
1 |
Phase |
1 ph |
Temperature Rating |
104 deg F |
Trip Type |
Thermal/Magnetic |
Type |
Type QOU Standard Unit Mount |
Voltage Rating |
120/240 VAC |
Wire Size |
14 to 2 AWG |
Standard Approval |
Buy American Act Compliant|RoHS Compliant|UL 489 File No. E84967|CSA C22.2 No. 5.1|CE Certified|IEC 60947-2|HACR Rated|SWD Rated|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
Appliance Manufacturers, Car Wash Systems, Facility and Infrastructure, Food and Beverage, HVAC, Industrial Machinery, Material Handling, Specialty Machinery and Waste Water Treatment Facilities Applications |
