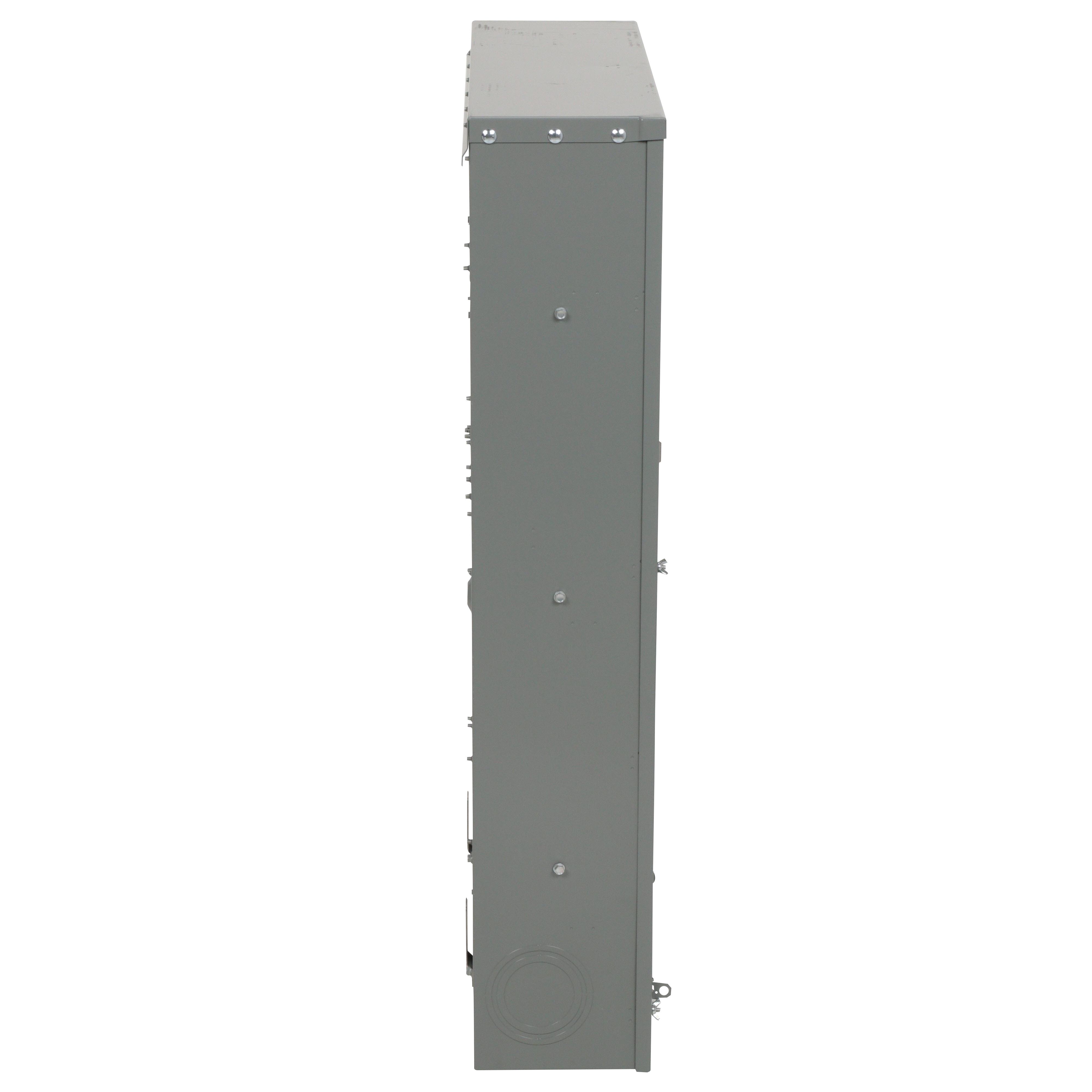

Square D™ QU12L400CL
Square D™ QO™ QU12L400CL 12-Circuit All-in-One Field Installed Rainproof Combination Service Entrance Meter Main With Class 320 Lever Bypass and Field Installed Flange Kit, 120/240 VAC, 400 A, 1 Phase, NEMA 3R Enclosure
Brand: Square D™
Item ID: 550593
MPN: QU12L400CL
UPC: 785901421009
Login for Price
Features
- Multiple disconnect units can accommodate plug-on surge Breaker™ secondary surge arrester
- Multiple disconnect units can be converted to semi-flush with addition of flange kit
- 4 AWG to 250 kcmil aluminum/copper service ground lug
- Knockout provided in cover for use with barrel lock kit SCBRLLOCK
- Surface mount or convertible to semi-flush with field installed flange kit
- 3-wire configuration
- 5th jaw factory installed
Description
Meter main devices are used in residential applications where local codes require service disconnects to be located outside the dwelling. They include the utility meter socket and factory installed and provisions for field installation of service disconnect to feed downstream devices. Meter mains are surface mount and typically used with interior mounted sub-feed load centers.
Square D™ QO™ Combination Service Entrance Meter Main, 12-Circuit All-in-One Field Installed Rainproof, 120/240 VAC, 400 A, 1 ph, Underground Feed, 5 Jaws, 4 AWG to 250 kcmil Wire, A-L Hub, 2-1/2 in, 3 in, 3-1/2 in, 4 in Hub, Ringless Cover, Lug/Stud Terminal, Surface Mounting, NEMA 3R Enclosure, 43 in H x 28-1/4 in W x 7-1/2 in D Dimensions
Specifications
Amperage Rating |
400 A |
Cover Type |
Ringless |
Dimensions |
43 in H x 28-1/4 in W x 7-1/2 in D |
Enclosure Type |
NEMA 3R |
Feed Type |
Underground |
Hub Size |
2-1/2 in, 3 in, 3-1/2 in, 4 in |
Hub Type |
A-L |
Mounting Type |
Surface |
Number of Jaws |
5 |
Phase |
1 |
Terminal Type |
Lug/Stud |
Type |
12-Circuit All-in-One Field Installed Rainproof |
Voltage Rating |
120/240 VAC |
Wire Size |
4 AWG to 250 kcmil |
Standard Approval |
UL 50/67/414 File No. E6294|ANSI C12.7|NEMA PB-1|EUSERC Approved|Federal Specification W-P-115C|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov|CSA Approved |
Application |
Residential Applications |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MP55125_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_MP55125_Owners_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QU12L400CL_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QU12L400CL_RoHS.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QU12L400CL_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_QU12L400CL_Specification_Sheet.pdf
