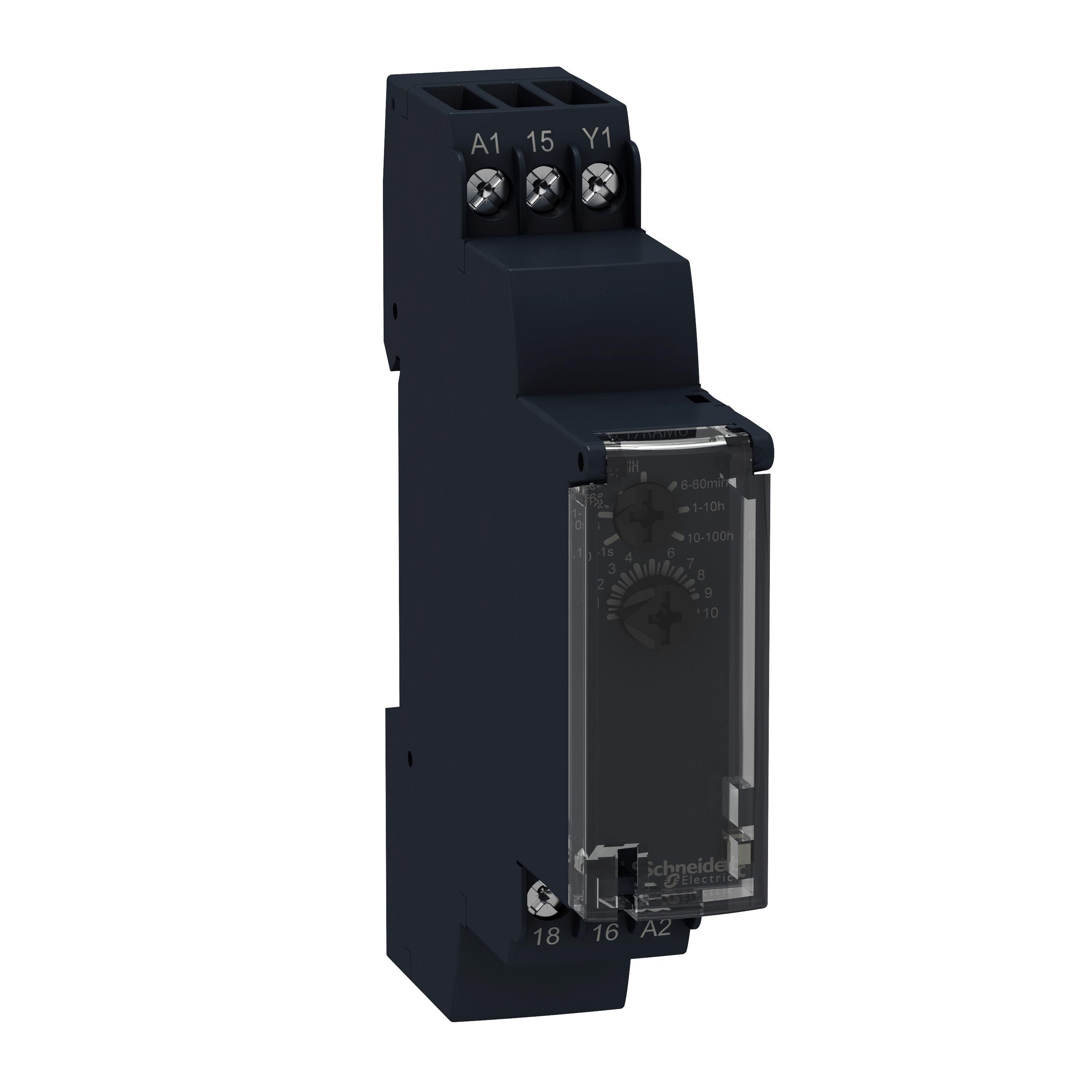

Schneider Electric RE17LCBM
Schneider Electric Square D™ Zelio™ RE17LCBM Modular Timing Relay With Solid State Output, 0.1 sec to 100 hr Setting, 24 to 240 VAC, SPDT Contact, 1 Poles
Brand: Schneider Electric
Item ID: 466527
MPN: RE17LCBM
UPC: 785901147244
Login for Price
Features
- Read relay status
- Overwrite the output
- Manage NFC Timer Relay without power
- Diagnostic button that helps you check the downstream circuit immediately without sending a fault input signal to the relays
- Experience simplified product selection, unprecedented accuracy, and diagnostic and superior security with NFC Timer Relay
Description
The Zelio™ RE17, RE22 and RENF22 modular timer range is comprised of both 8 A relay and 0.7 A solid state outputs. Thanks to its space saving 17.5 mm design, this relay is ideal for applications that require a lot of control in a small foot print. The RE17 series is designed to attach to a 35 mm DIN rail.
Schneider Electric Square D™ Zelio™ Modular Timing Relay, Operation Mode: Off-Delay with Control Signal, 24 to 240 VAC, 0.7 A, 1 Pole, SPDT Contact Form, 0.1 sec to 100 hr Time Setting, LED Display, Screw Electrical Connections, IP20/IP40/IP50 Enclosure, -20 to 60 deg F, DIN Rail Mounting, 17.5 mm W x 90 mm H Dimensions
Specifications
Amperage Rating |
0.7 A |
Contact Form |
SPDT |
Dimensions |
17.5 mm W x 90 mm H |
Display Type |
LED |
Electrical Connections |
Screw |
Enclosure Type |
IP20/IP40/IP50 |
Mounting Type |
DIN Rail |
Number of Poles |
1 |
Operation Mode |
Off-Delay with Control Signal |
Temperature Rating |
-20 to 60 deg F |
Time Setting |
0.1 sec to 100 hr |
Voltage Rating |
24 to 240 VAC |
Standard Approval |
CE Certified|CSA Certified|cULus Listed|ECCN: EAR99|EC-EN 61000-6-1|EC-EN 61000-6-3|EN 61000-6-2|IEC 61812-1|EN 61000-6-4|GL|IEC 60068-2-27|IEC 60068-2-6|IEC 60529|IEC 61000-4-2|IEC 61000-4-3|IEC 61000-4-4|IEC 61000-4-4|3|IEC 61000-4-5|IEC 61000-4-5|3|IEC 61000-4-6|IEC 61000-4-11|IEC 61000-4-11|EN 55022|Green Premium™|RoHS Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_38883d9af2fb32181f8bca874df3f5842627c8bedd5020f055c26b745d7f3963.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_938dd1141973ec741f72c99df586c0e4b8148f5257b7fdade1cd3579904f4a48.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_RE17LAMW_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_RE17LAMW_Instruction_Installation_Manual.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_RE17RLMU_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_RE17LAMW_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_RE17LAMW_Owners_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_RE17RLMU_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_RE17LCBM_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_31243576e5b9e701fbedebc690cf974589e71bc6fb9b45808320b76e39018883.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_RE17LCBM_Specification_Sheet.pdf
