Square D™ S29386

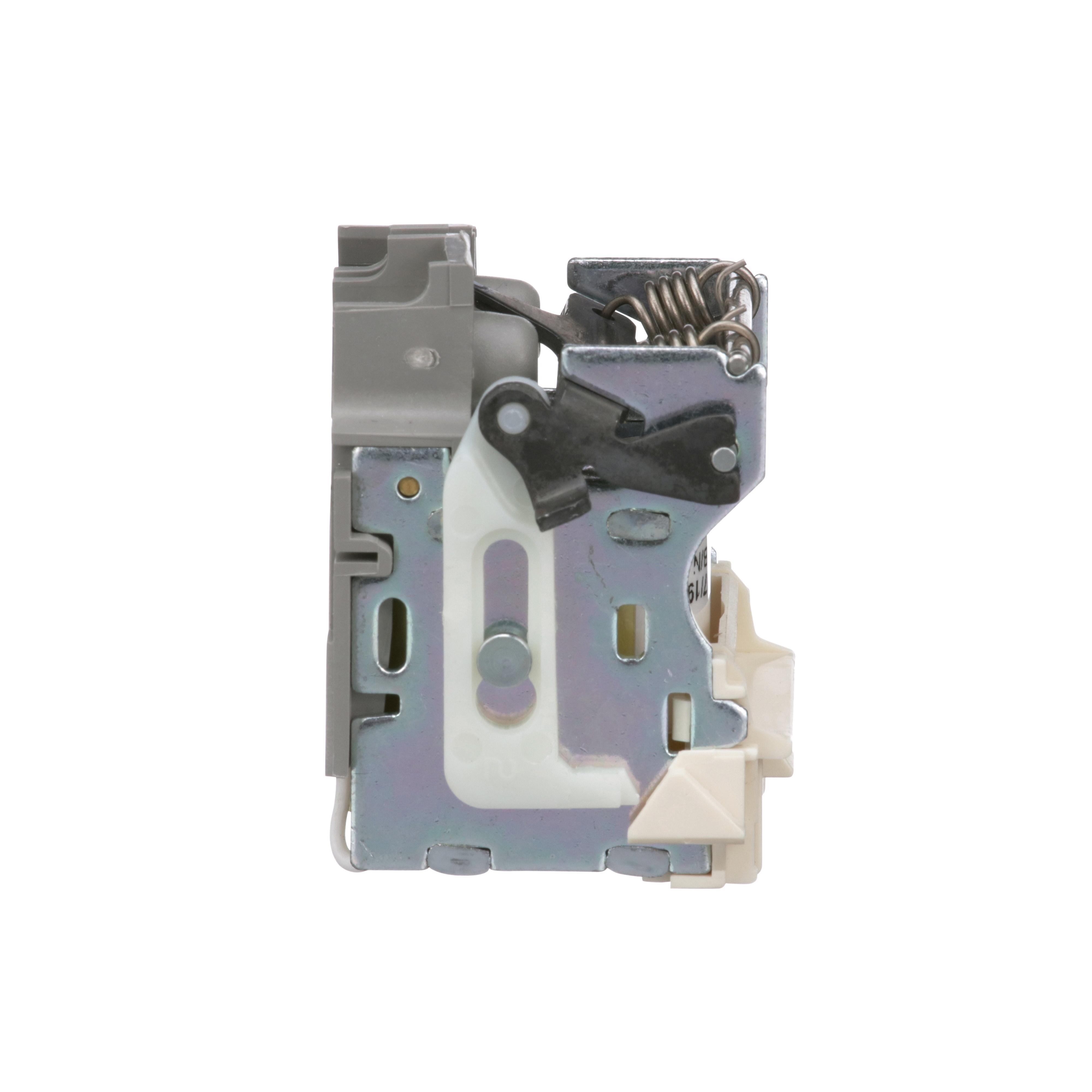

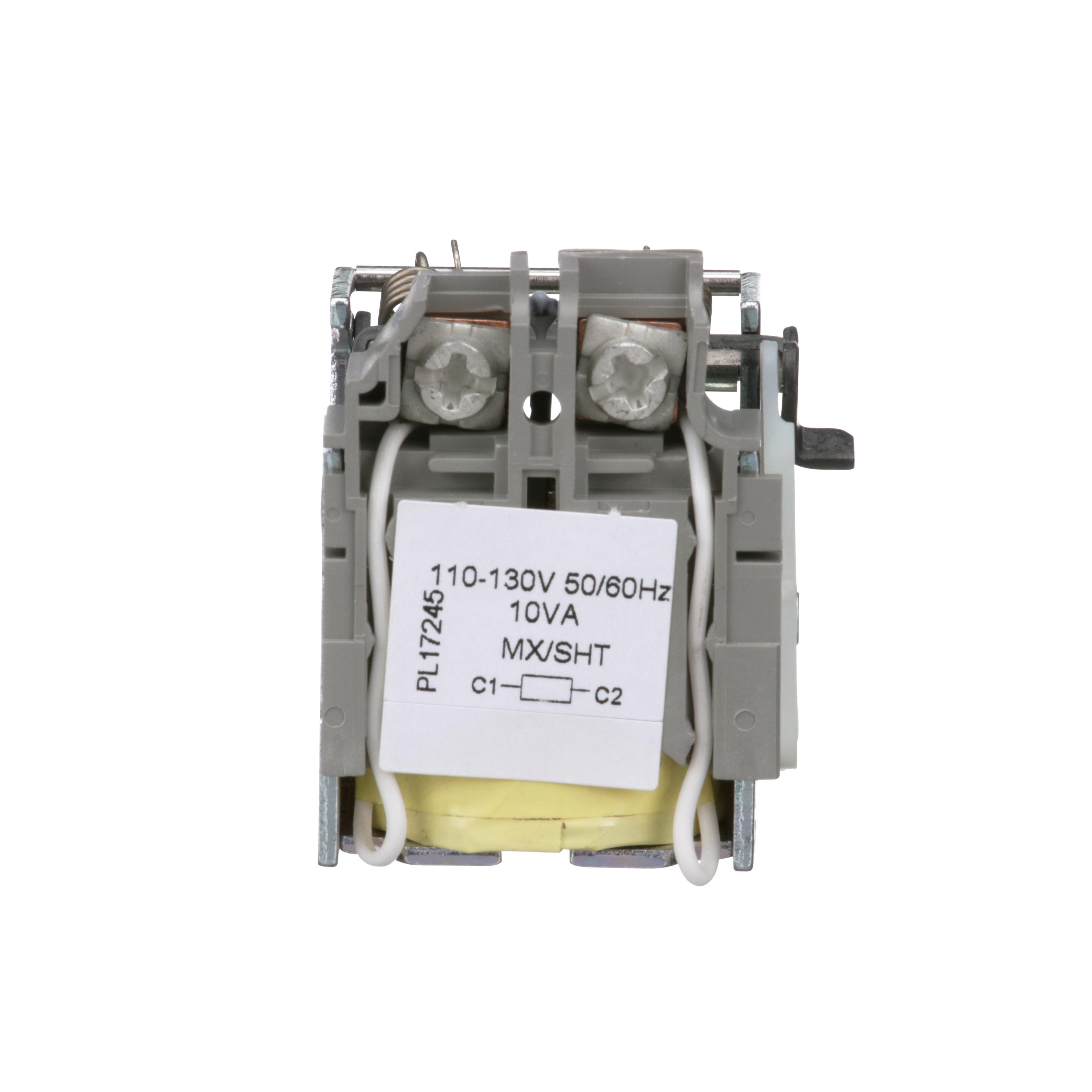

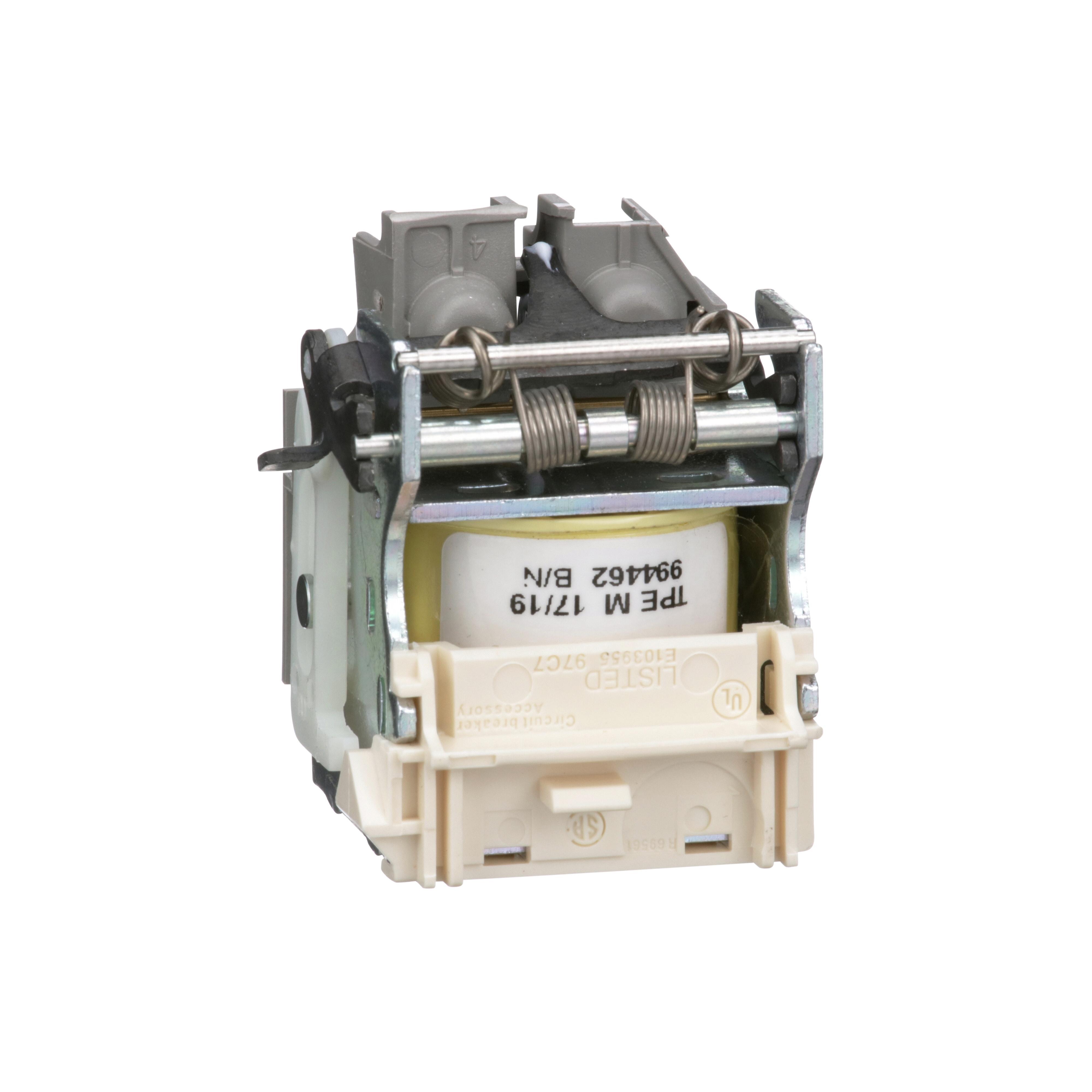

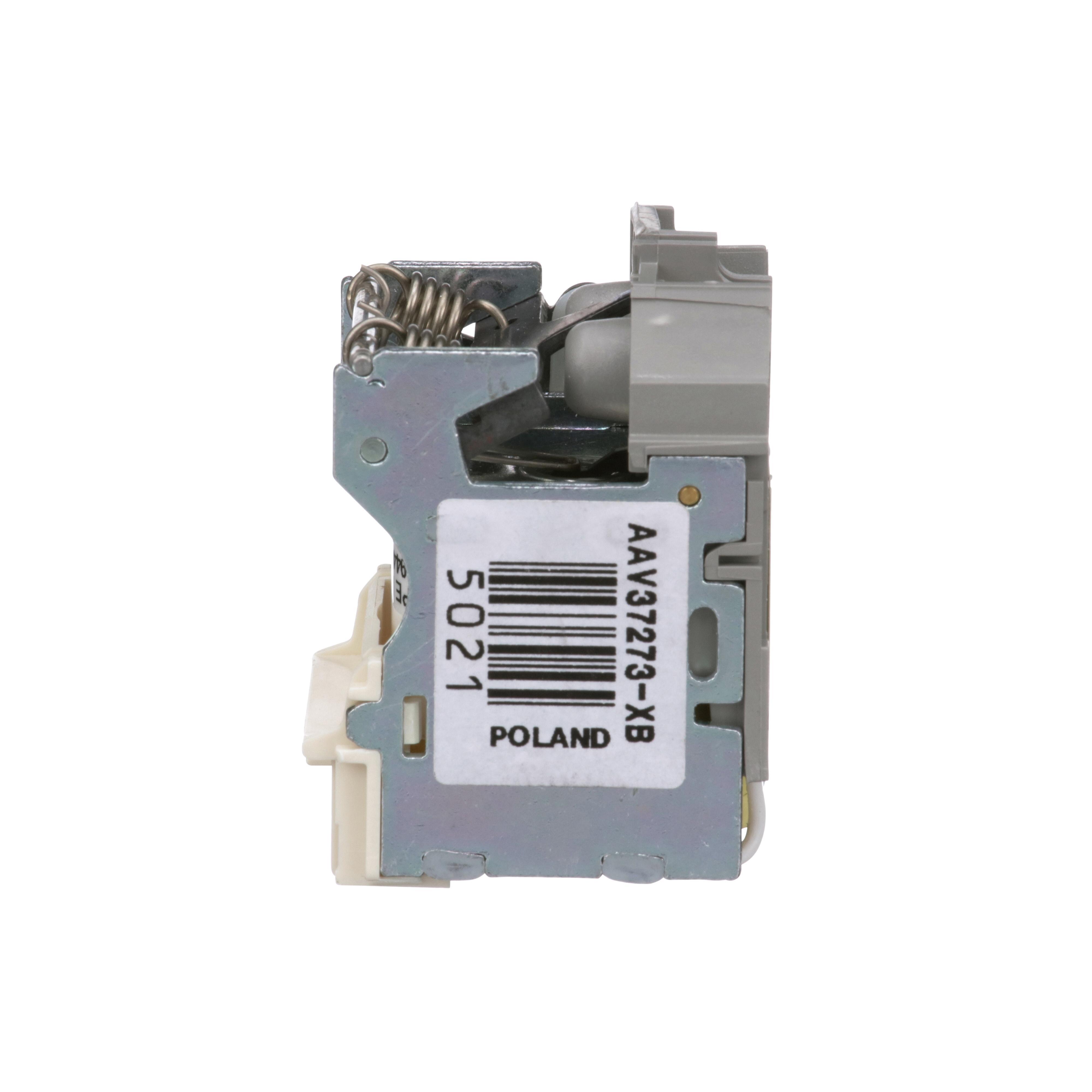

Square D™ PowerPact™ S29386 Standard Circuit Breaker Shunt Trip, 110/130 VAC
Brand: Square D™
Item ID: 371879
MPN: S29386
UPC: 785901712282
Login for Price
Features
- S29386 is a PowerPact H, J-Frame Molded Case Circuit Breakers Shunt Trip 110-130VAC for standard circuit breaker types
- This Shunt Trip has an operational voltage of 130VAC
- Trips the circuit breaker from a remote location by means of a trip coil energized from a separate circuit
- Coil burden - less than 10 VA
Description
The PowerPact™ H-, J- and l-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H- and j-frame circuit breakers are available with either thermal magnetic or Micrologic™ electronic trip units. L-frame circuit breakers are available with Micrologic electronic trip units only.
Square D™ PowerPact™ Circuit Breaker Shunt Trip, Standard, 110/130 VAC, For Use with: H, J and L Frame Molded Case Circuit Breaker
Specifications
Suitable For Use With |
H, J and L Frame Molded Case Circuit Breaker |
Type |
Standard |
Voltage Rating |
110/130 VAC |
Standard Approval |
RoHS Compliant|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
Used to trip circuit breaker from remote location by means of a trip coil energized from a separate circuit |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_30787a631a6bc44184ec2cd8f8b2206a8d1c90713b0065e7eefb316ea06e4829.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_S29386_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HDL26125C_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HJA360506_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HJA360506_Owners_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PJL36080U44A_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Schneider_Electric_XCSB803_RoHS.pdf
RoHS 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_S29386_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_866d035bc304ece9874d42a0ba563ab4aa0fd0c1decf86526a40a7ebbbcc02e0.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_S29386_Specification_Sheet.pdf
