Square D™ S33661

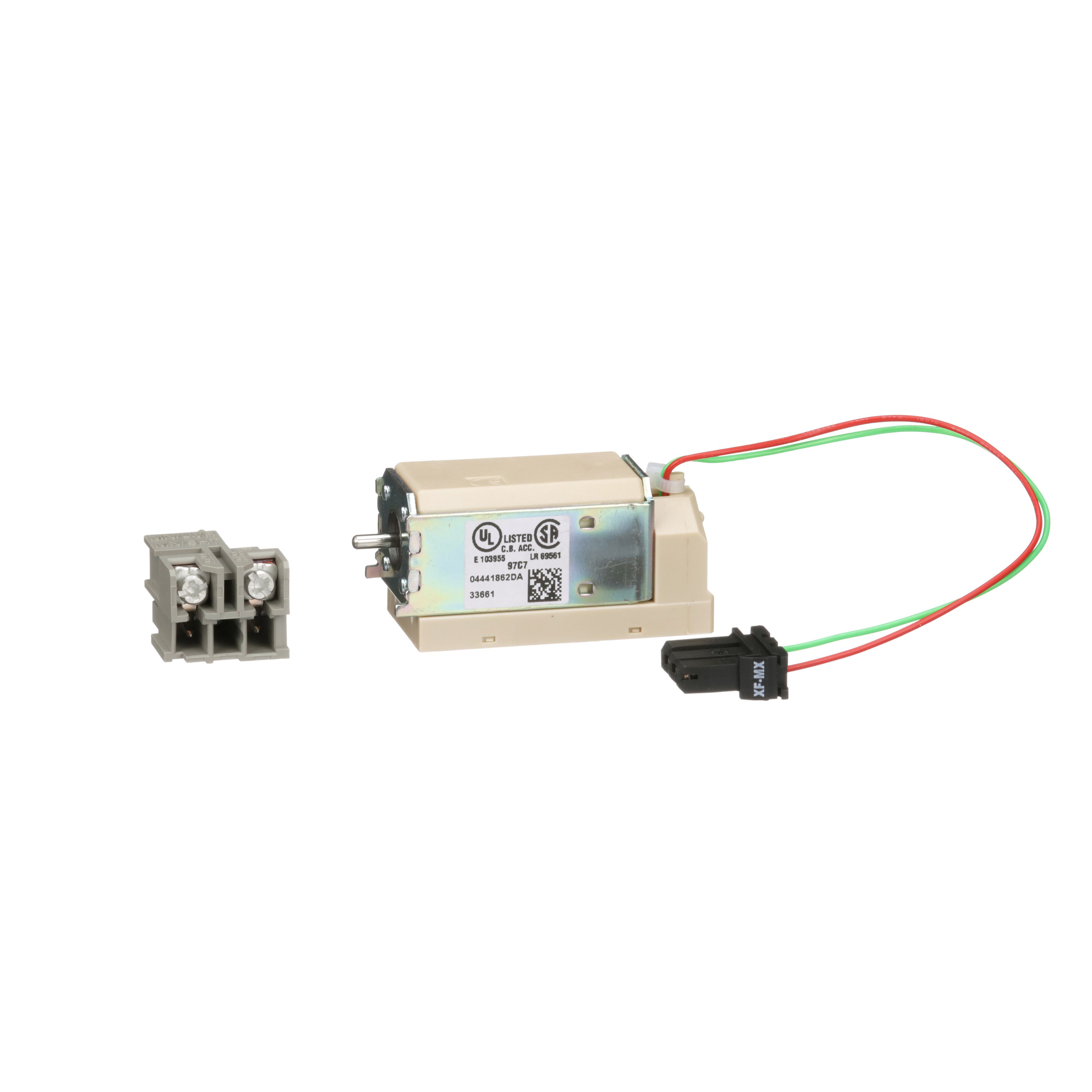

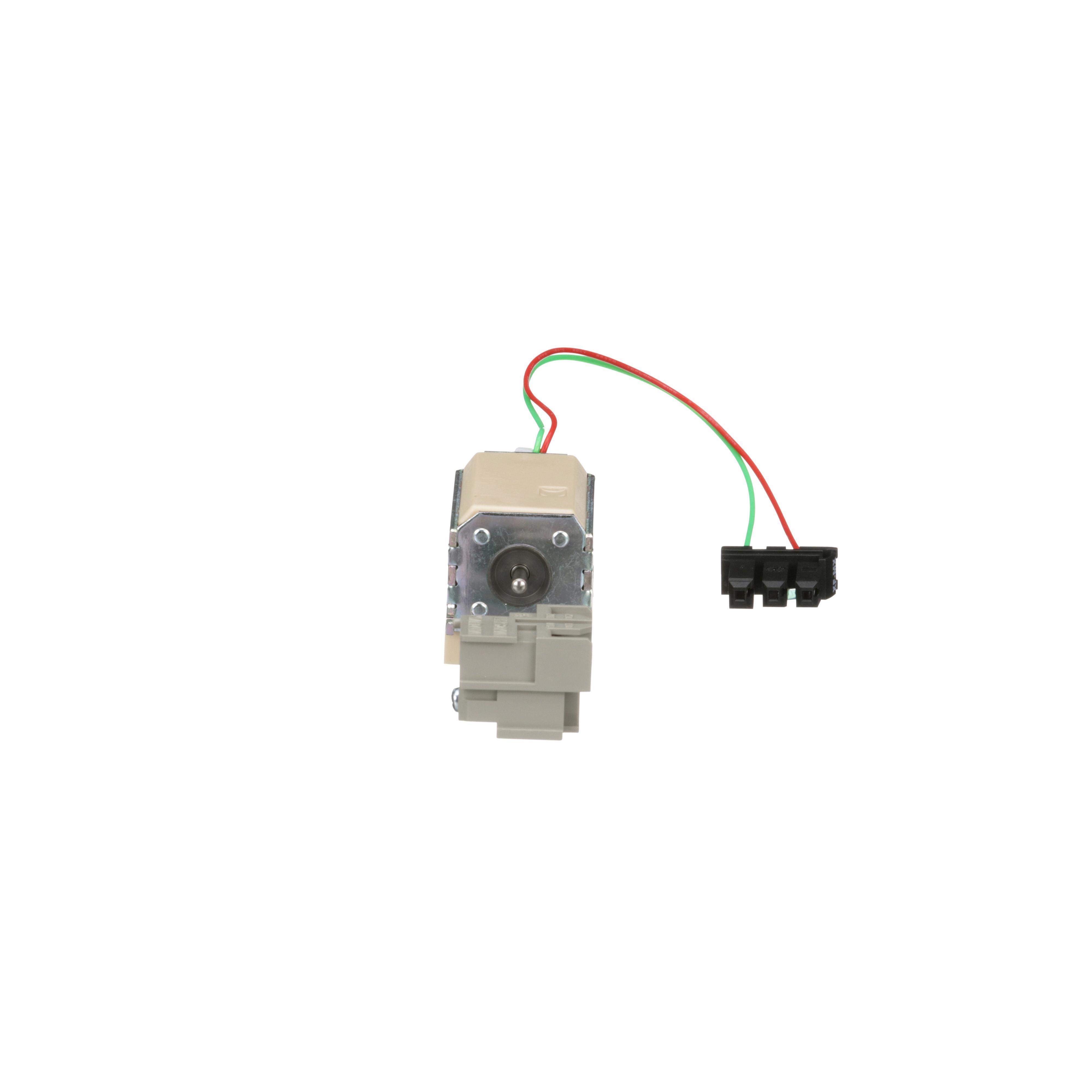

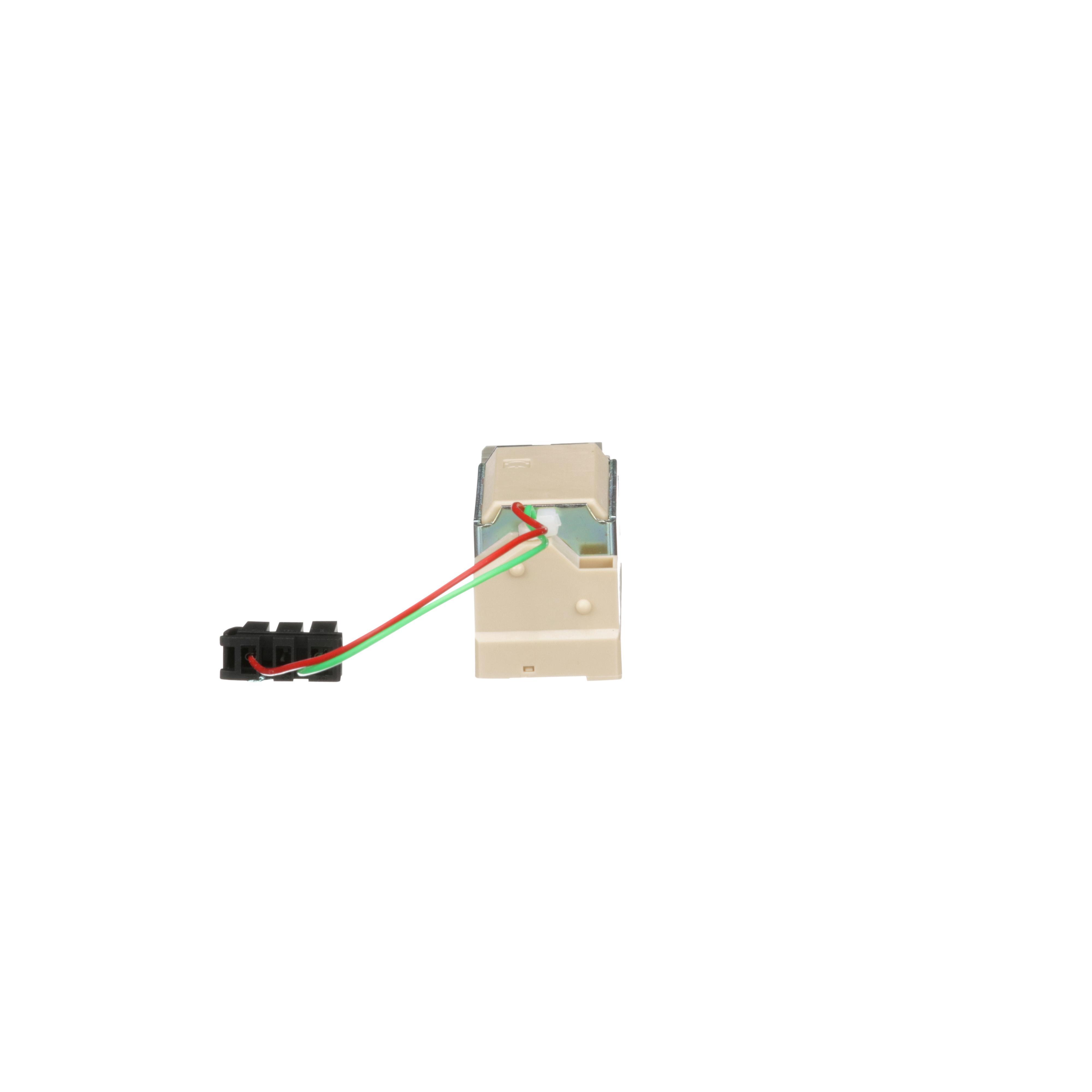

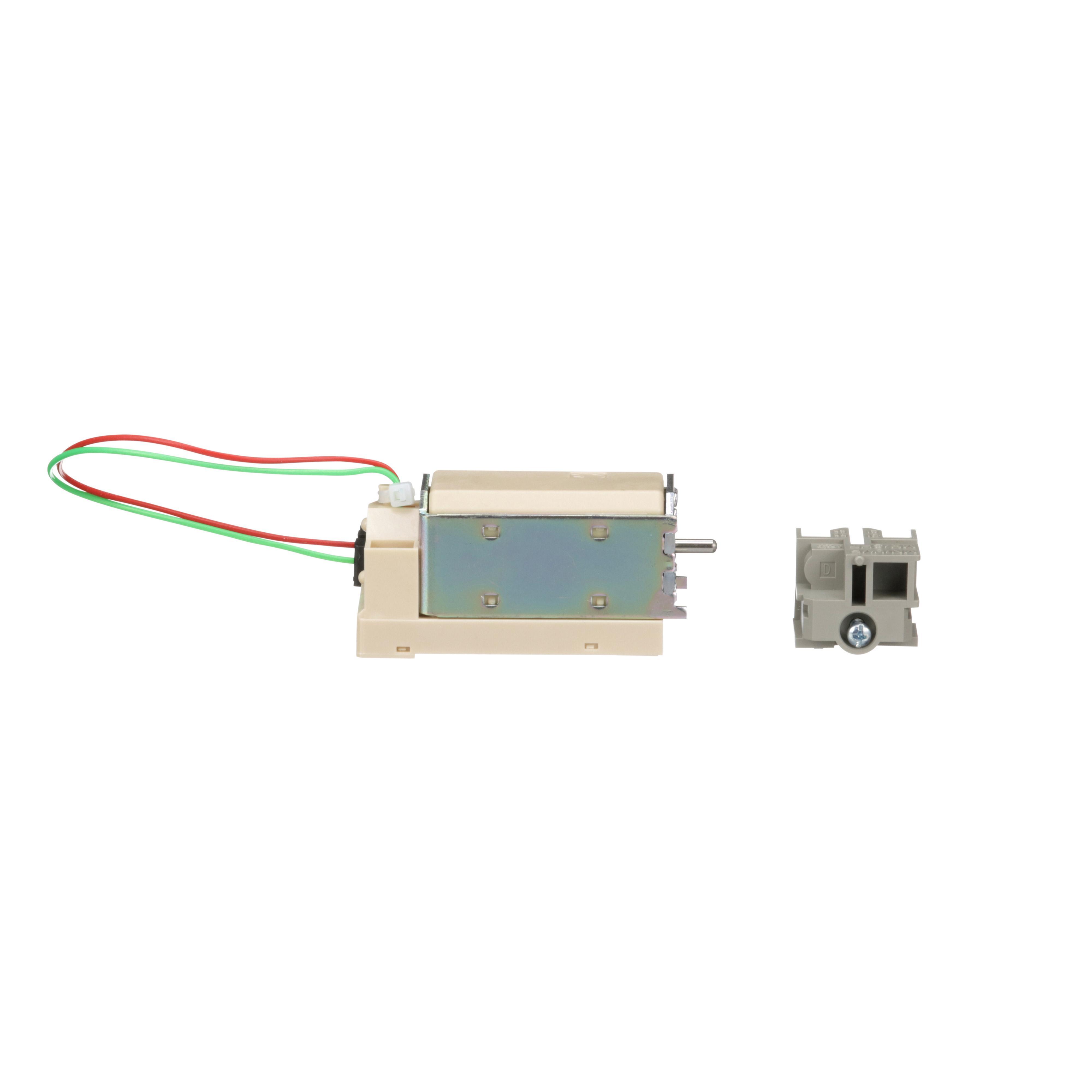

Square D™ PowerPact™ S33661 Standard Circuit Breaker Shunt Trip, 110 to 130 VAC/VDC
Brand: Square D™
Item ID: 440447
MPN: S33661
UPC: 785901700425
Login for Price
Features
- S33661 is a Shunt Trip 24-30VAC/DC for standard breaker types for LV Circuit Breaker Enclosures
- With a device application for trips circuit breaker from remote location
- This Shunt Trip has a rated operational voltage of 110/130 V
- Trips the circuit breaker from a remote location by means of a trip coil energized from a separate circuit
Description
The enclosures for the F- and L-frame thermal magnetic circuit breakers are UL listed and CSA certified. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit ratings of these enclosed circuit breakers are equal to the interrupter rating, at the supply voltage marked on the circuit breaker installed.
Square D™ PowerPact™ Circuit Breaker Shunt Trip, Standard, 110 to 130 VAC/VDC, For Use With: M, P and R Frame Molded Case Circuit Breaker
Specifications
Suitable For Use With |
M, P and R Frame Molded Case Circuit Breaker |
Type |
Standard |
Voltage Rating |
110 to 130 VAC/VDC |
Standard Approval |
RoHS Compliant|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov |
Application |
For used to trip circuit breaker from remote location by means of a trip coil energized from a separate circuit |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_S33661_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HDL26125C_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HJA360506_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HJA360506_Owners_User_Manual.pdf
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PJL36080U44A_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_S33661_RoHS.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_S33661_Specification_Sheet.pdf
