Square D™ SDSA1175

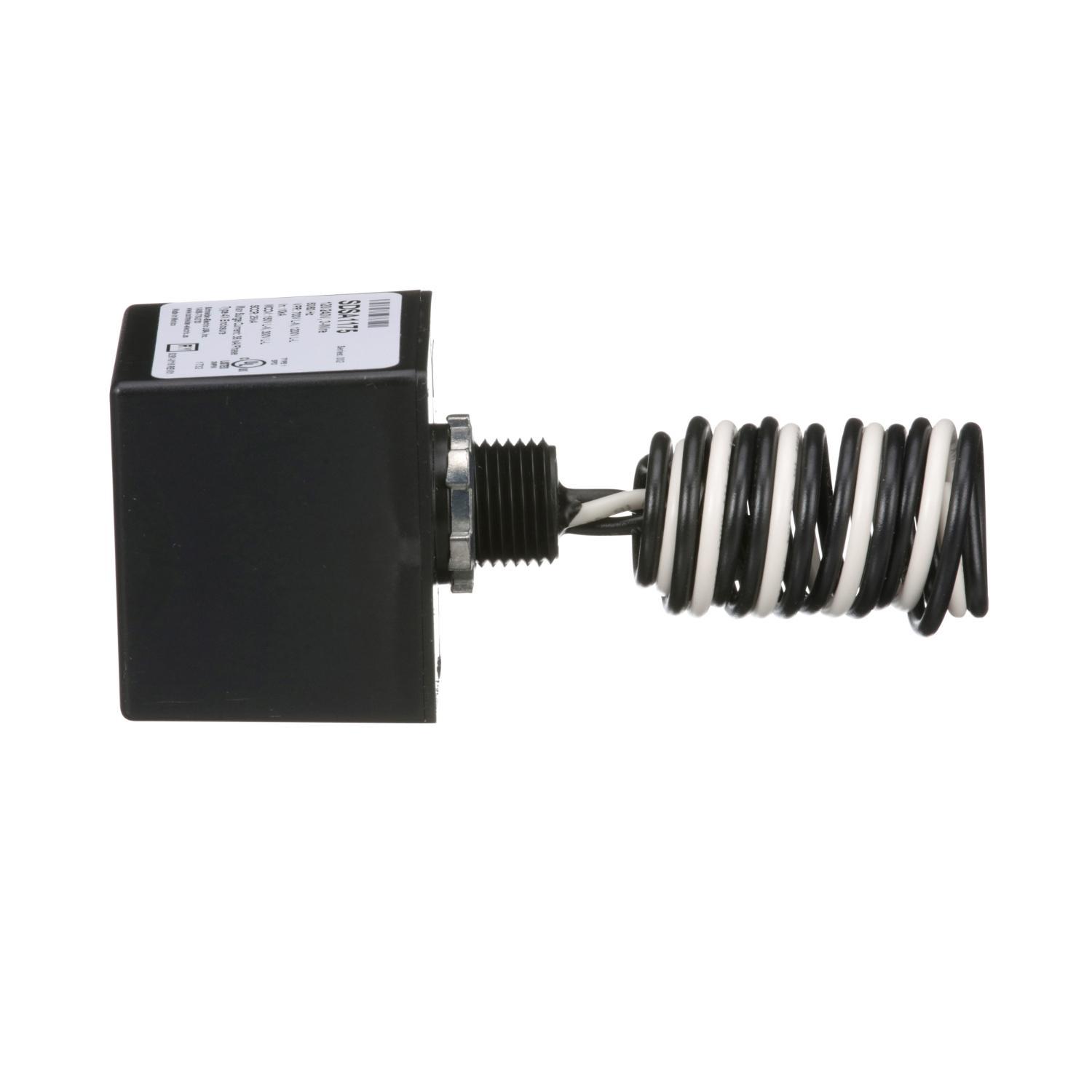

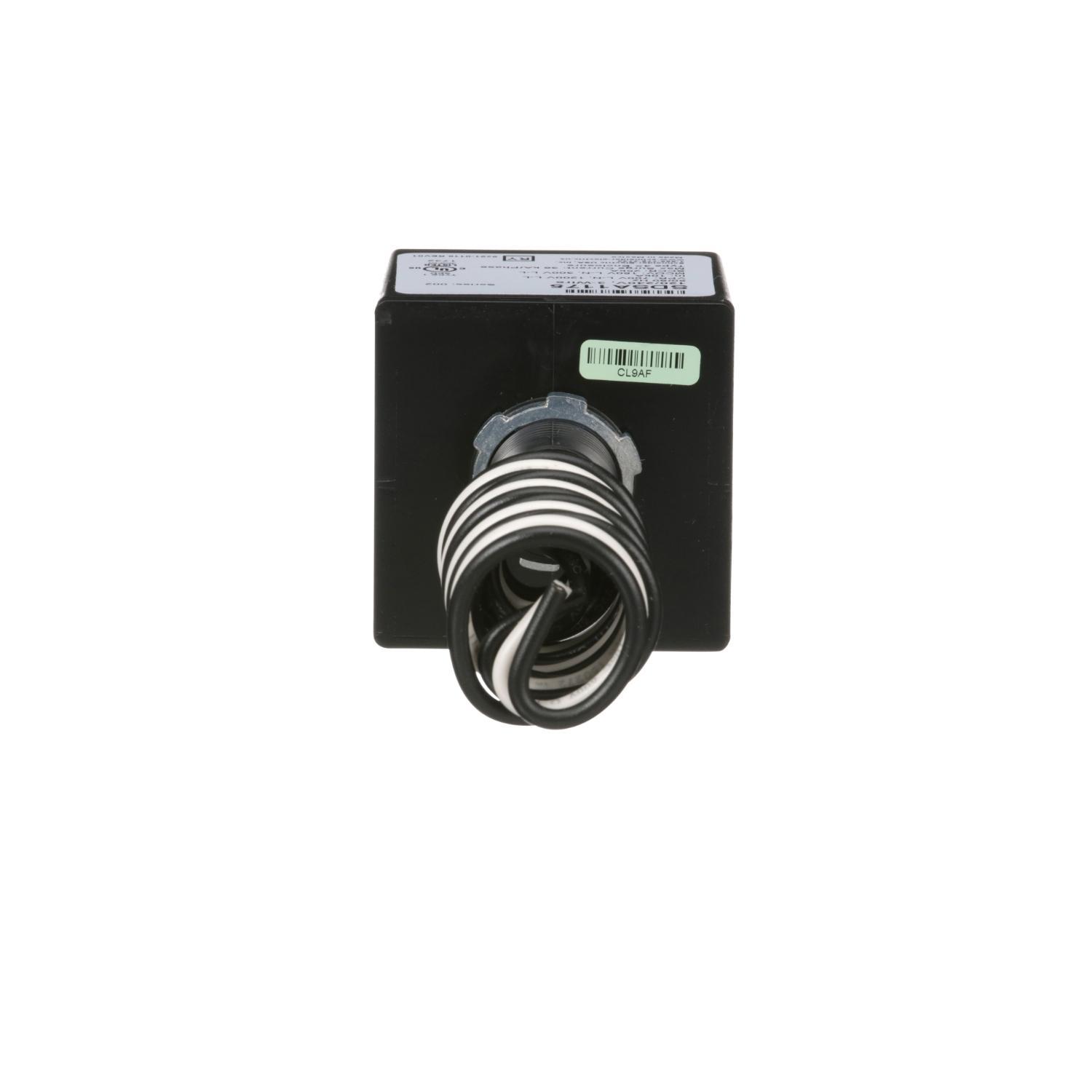

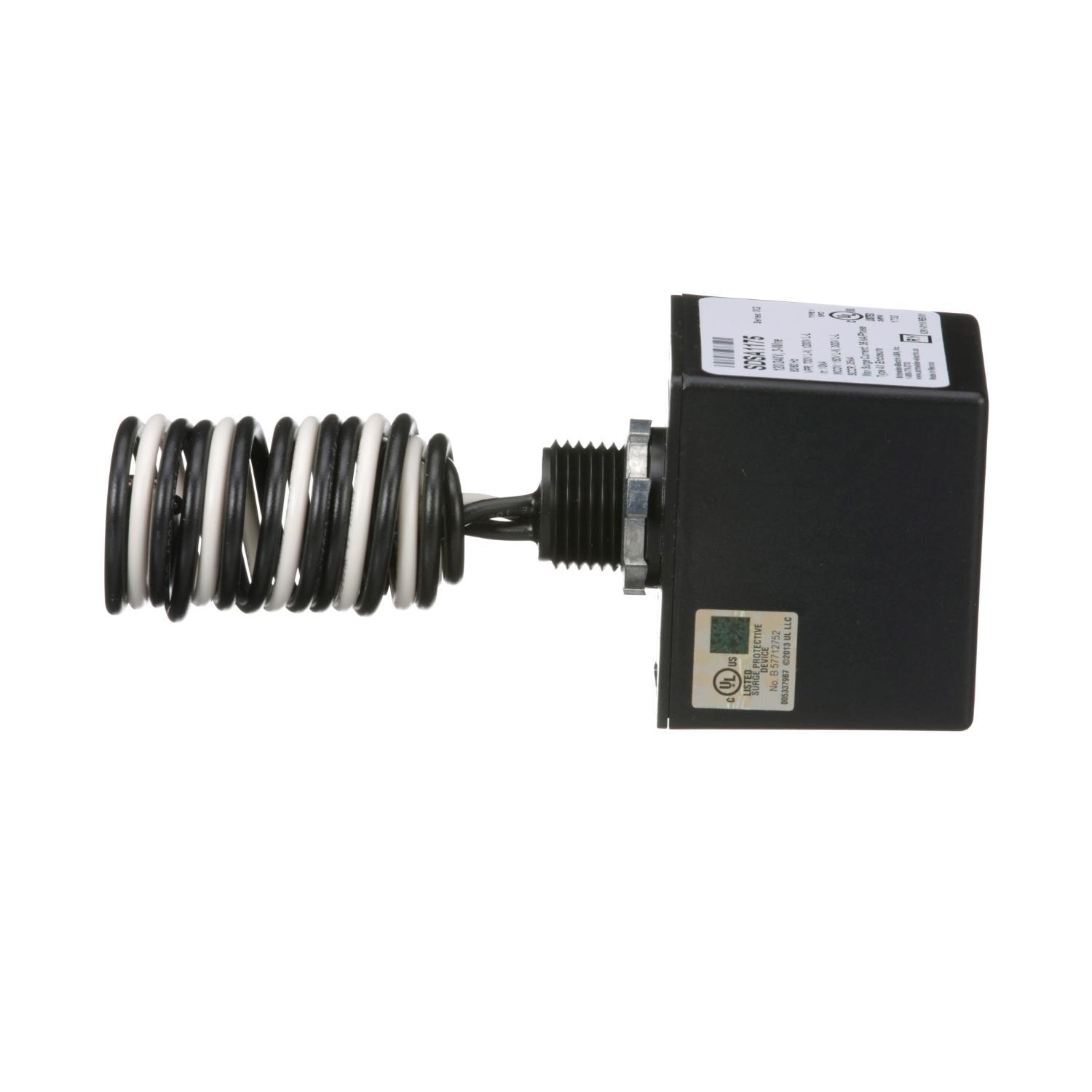

Square D™ Surgelogic™ SDSA1175 Surge Arrester, 50/60 Hz, 25 kA SCCR, 1 Phase
Brand: Square D™
Item ID: 58404
MPN: SDSA1175
Login for Price
Features
- High-energy suppression circuitry that can be located at any point in the electrical system, as a Type 1 rated device, they have the flexibility to be used with or without an Overcurrent Protection Device (OCPD)
- Surge suppression for equipment from severe transient activity
- Each metal oxide varistor (MOV) is individually fused
- NEMA Type 4X rating suitable for installing indoors, outdoors or in other harsh environments

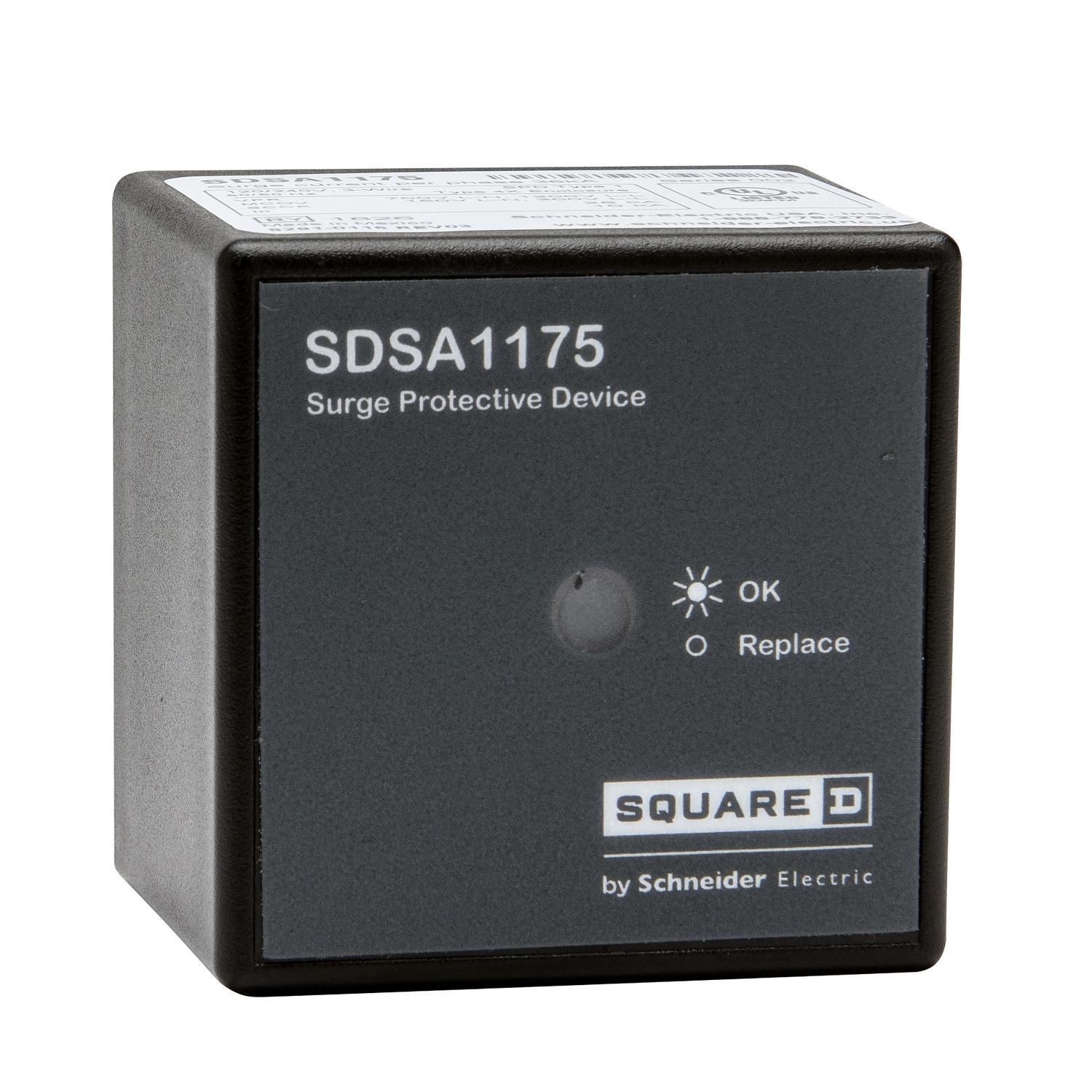

- LED indicates operational status
- Convenient back nipple mounting
Description
SDSA1175 SPDs are designed and listed for indoor or outdoor installation and surge suppression for single-phase three-wire 120/240 VACor two-wire 120 VAC60 Hz electrical services. This product is ideal for residential applications for single phase power systems. SDSAs work together with surge protection plug strips to provide surge suppression for sensitive electronics. Two SDSA1175 surge protection devices can be installed to provide suppression for 208Y/120 VACthree-phase four-wire services.
Square D™ Surgelogic™ Surge Arrester, 50/60 Hz Frequency, 25 kA Short Circuit, 36 kA Peak Surge Current, 120/240 VAC Clamping, Modes of Protection: 3, LED Indicator, 1 ph, Environmental Conditions: -40 to 149 deg F, NEMA 4 Enclosure, Nipple Mounting, 2.6 in D Dimensions
Specifications
Amperage Rating |
200 A |
Clamping Voltage |
120/240 VAC |
Connection Type |
Lug |
Dimensions |
2.6 in D |
Enclosure Type |
NEMA 4 |
Environmental Conditions |
-40 to 149 deg F |
Frequency Rating |
50/60 Hz |
Indicator Type |
LED |
Interrupt Rating |
22 kA |
Modes of Protection |
3 |
Mounting Type |
Nipple |
Number of Poles |
2 |
Peak Surge Current |
36 kA |
Phase |
1 |
Short Circuit Current Rating |
25 kA |
Temperature Rating |
40 deg C |
Trip Range |
200 A |
Trip Type |
Shunt/Thermal Magnetic |
Type |
Type QOM |
Voltage Rating |
120/240 VAC |
Wire Size |
4 AWG to 300 kcmil |
Standard Approval |
UL 1449|CSA 233.1-87, C22.2 No. 8-M1986 |
Application |
For pumping applications and motor control feeder |
