Square D™ SN100FA

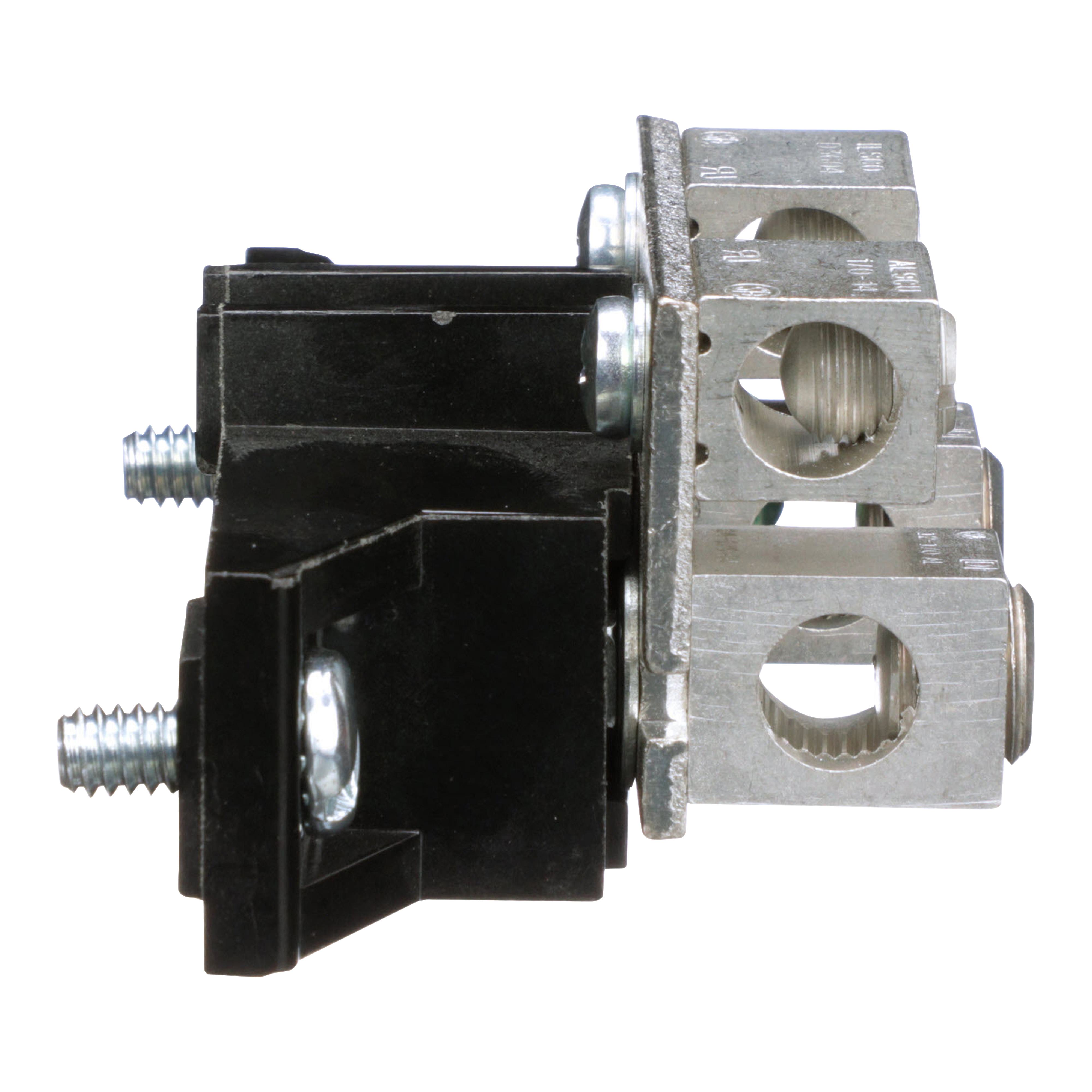

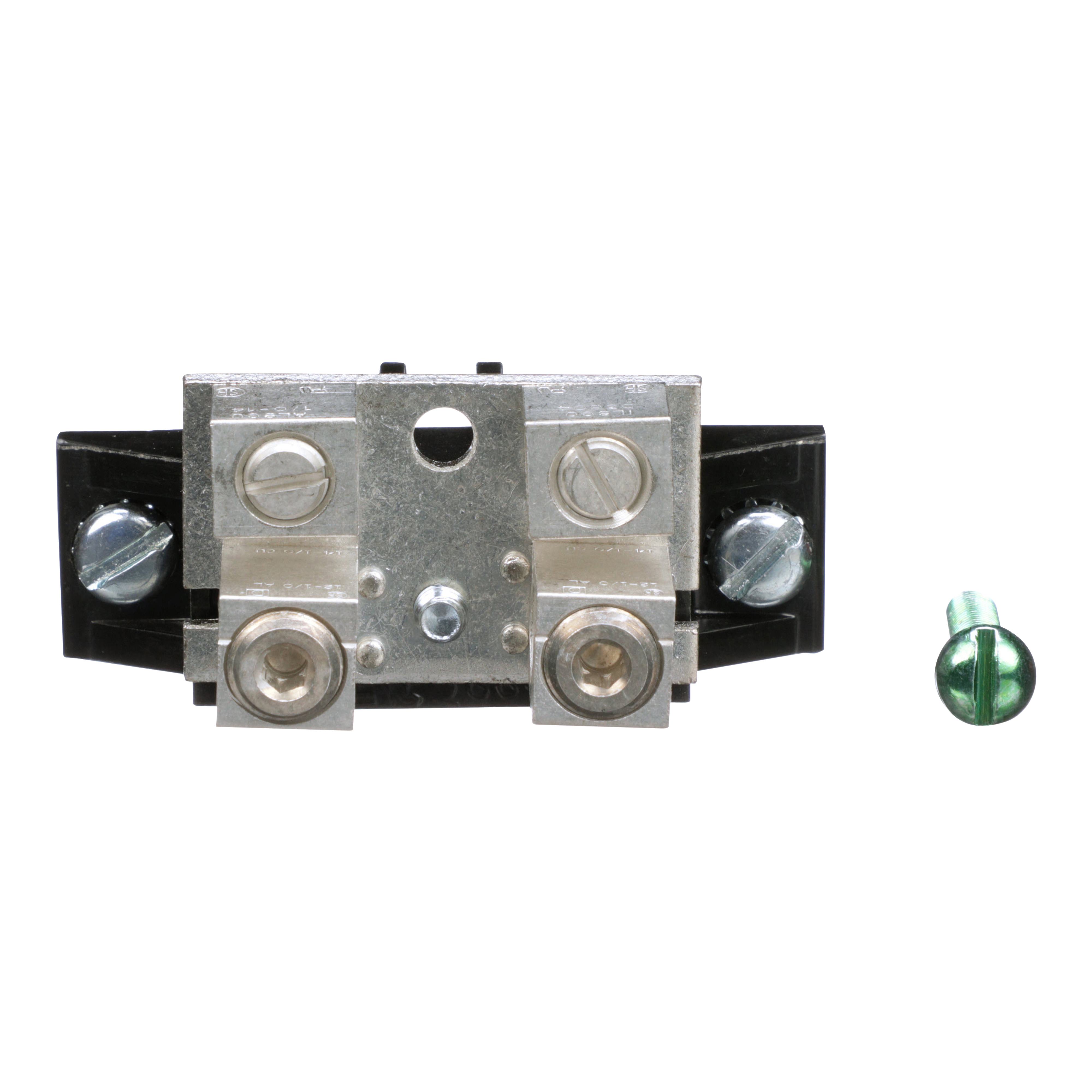

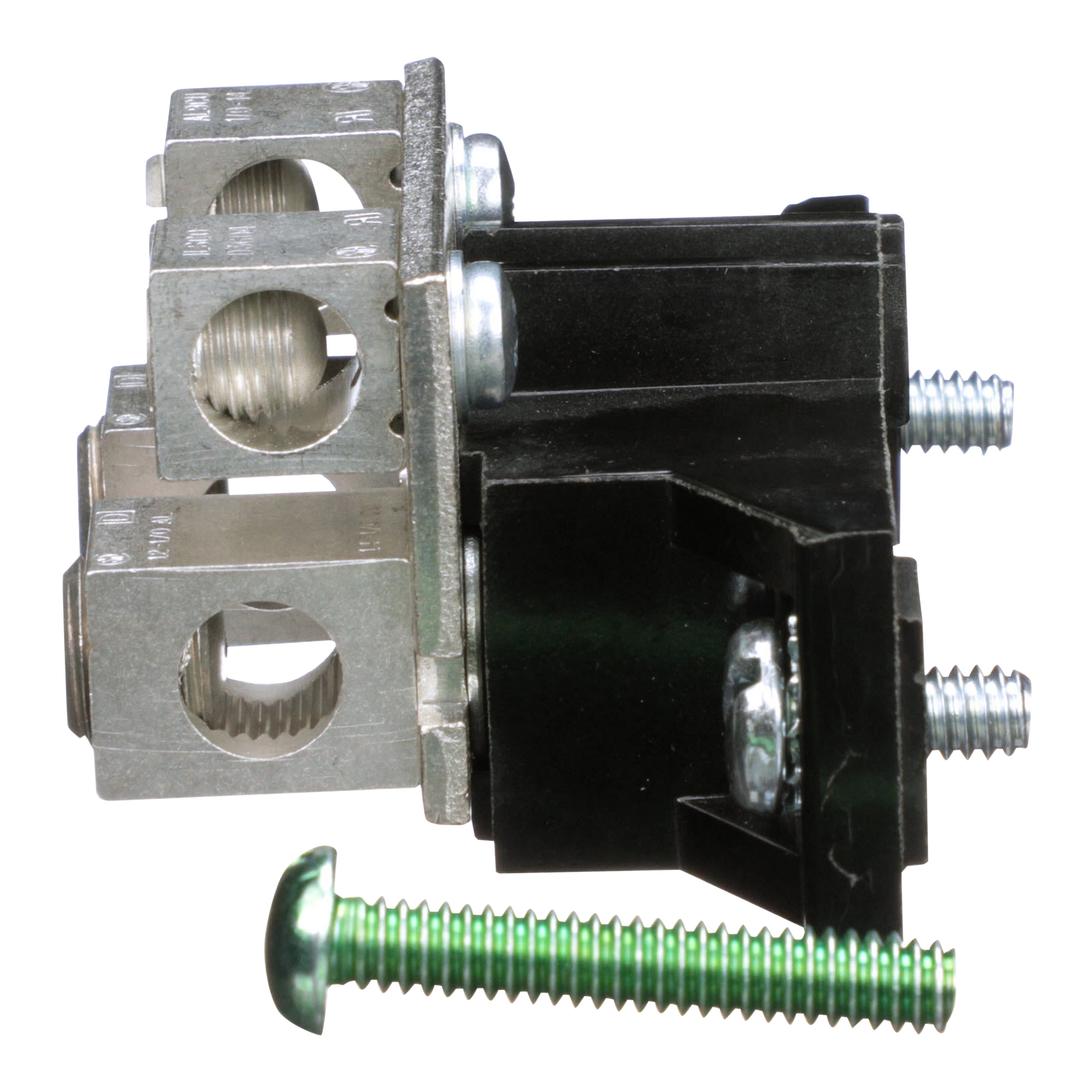

Square D™ SN100FA Groundable Insulated Standard Neutral Assembly, For Use With FAL, FHL, FCL, HDL, HGL, HJL, HLL Standard Circuit Breaker, NEMA 1/3R/4/4X/5/12/12K Enclosure
Brand: Square D™
Item ID: 58520
MPN: SN100FA
UPC: 785901461029
Login for Price
Features
- With a AWG Gauge AWG 12 - AWG 1/0, copper/AWG 14 - AWG 1/0aluminium
Description
The enclosures for the F- and L-Frame thermal-magnetic circuit breakers are UL listed and CSA certified. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit ratings of these enclosed circuit breakers are equal to the interrupter rating, at the supply voltage marked on the circuit breaker installed.
Square D™, SN100FA, Standard Neutral Assembly, Groundable Insulated, For Use With: FAL, FHL, FCL, HDL, HGL, HJL, HLL Standard Circuit Breaker, NEMA 1/3R/4/4X/5/12/12K Enclosure
Specifications
Enclosure Rating |
NEMA 1/3R/4/4X/5/12/12K |
Suitable For Use With |
FAL, FHL, FCL, HDL, HGL, HJL, HLL Standard Circuit Breaker |
Type |
Groundable Insulated |
Standard Approval |
RoHS Compliant|Buy American Act Compliant|UL Listed|CSA Certified|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HJA360506_Owners_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_HJA360506_Owners_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PJL36080U44A_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_PJL36080U44A_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_SN100FA_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_SN100FA_RoHS.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_SN100FA_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_SN100FA_Specification_Sheet.pdf
