Square D™ SSP02XDSE10A
Square D™ Surgelogic™ SSP02XDSE10A Type 2 Surge Protective Device, 208Y/120 VAC, 3 ph
Brand: Square D™
Item ID: 529245
MPN: SSP02XDSE10A
UPC: 785901085041
Login for Price
Features
- Overvoltage technology
- EMI/RFI noise rejection
- Suppression status alarm
- Coordinated fuse technology
Description

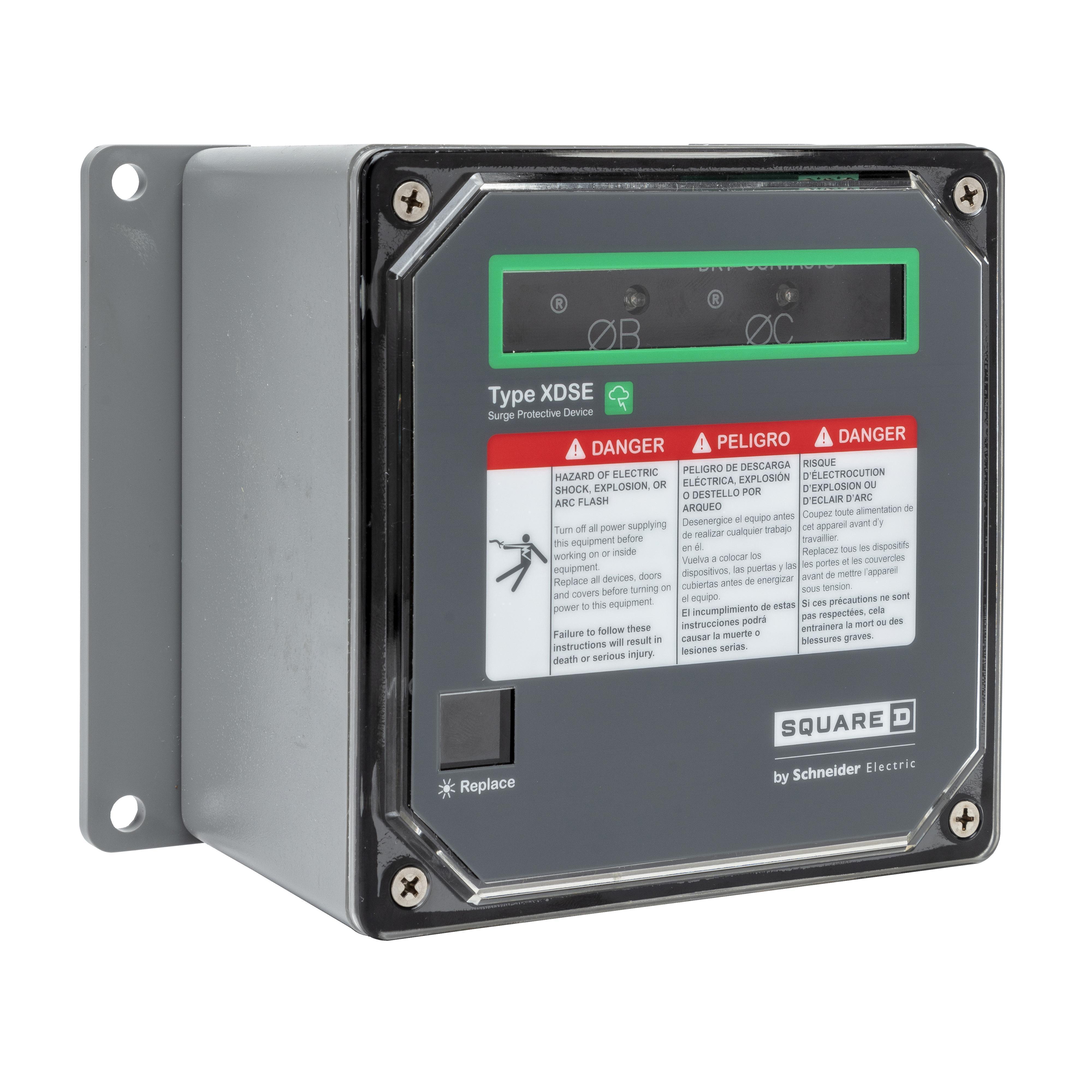

The compact design of the XDSE allows surge suppression to be externally installed adjacent to electrical distribution equipment. XDSE systems are designed to provide high-quality surge suppression for a wide variety of commercial, industrial or institutional applications. Square D™ brand XDSE devices can be used in a network of surge suppression applications or as a stand-alone surge suppressor.
Square D™ Surgelogic™ Surge Protective Device, Type 2, Series: XDSE, 208Y/120 VAC Electrical Rating, 4 Wires, 100 A Peak Surge Current, LED Indicator, 3 ph, NEMA 4X Enclosure, 5.98 in W x 3.98 in D x 5.98 in H Dimensions
Specifications
Dimensions |
5.98 in W x 3.98 in D x 5.98 in H |
Electrical Ratings |
208Y/120 VAC |
Enclosure Type |
NEMA 4X |
Indicator Type |
LED |
Number of Wires |
4 |
Peak Surge Current |
100 A |
Phase |
3 ph |
Series |
XDSE |
Specifications |

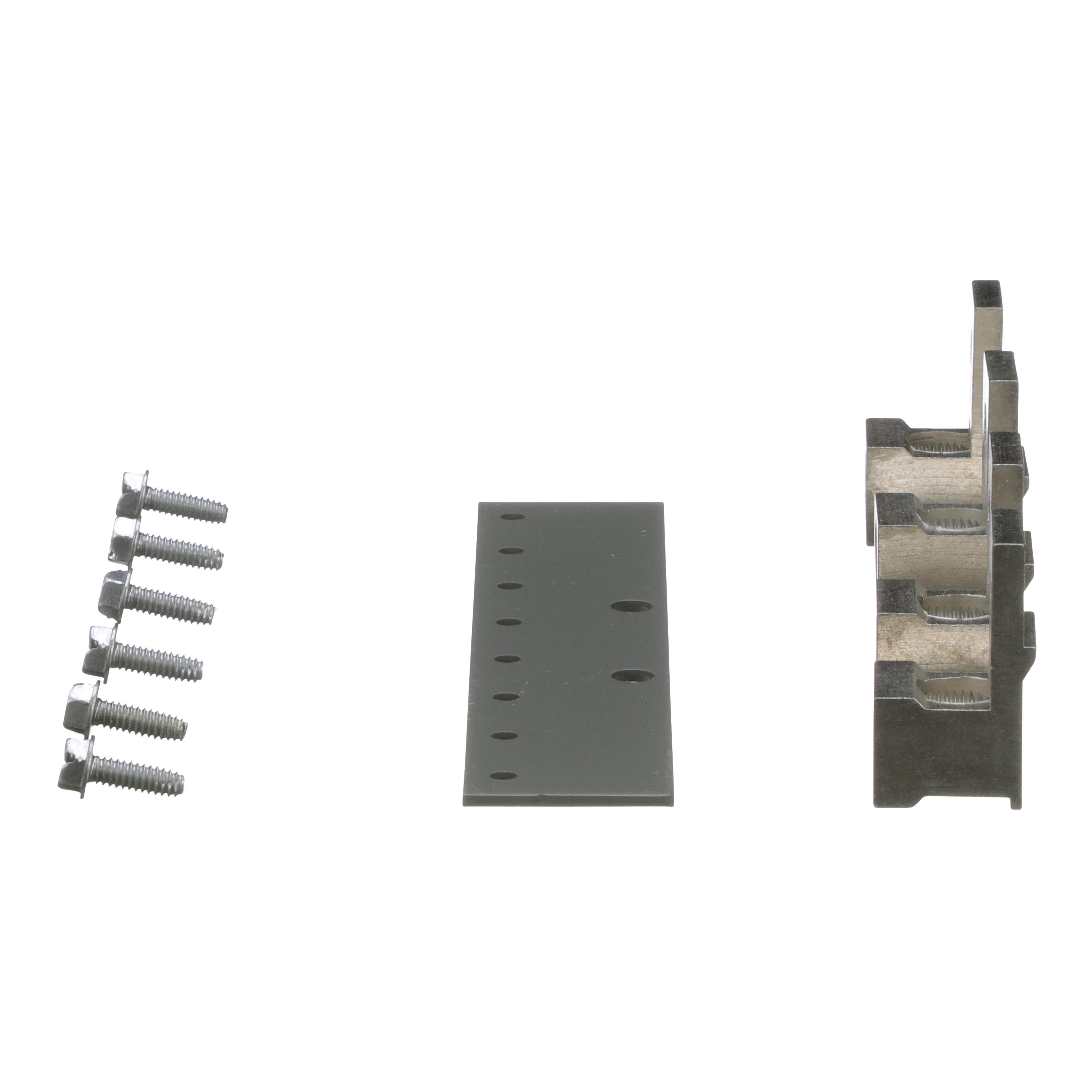

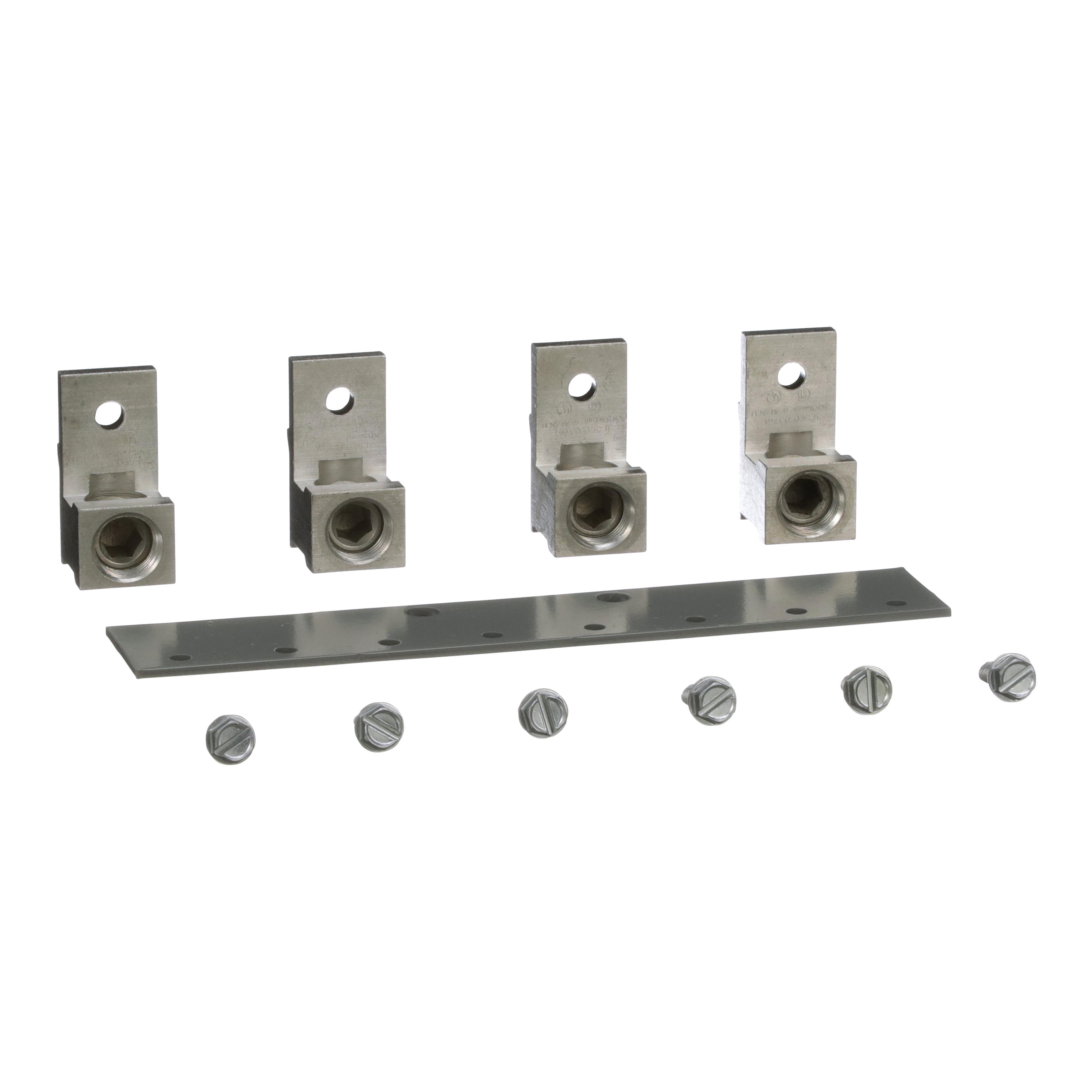

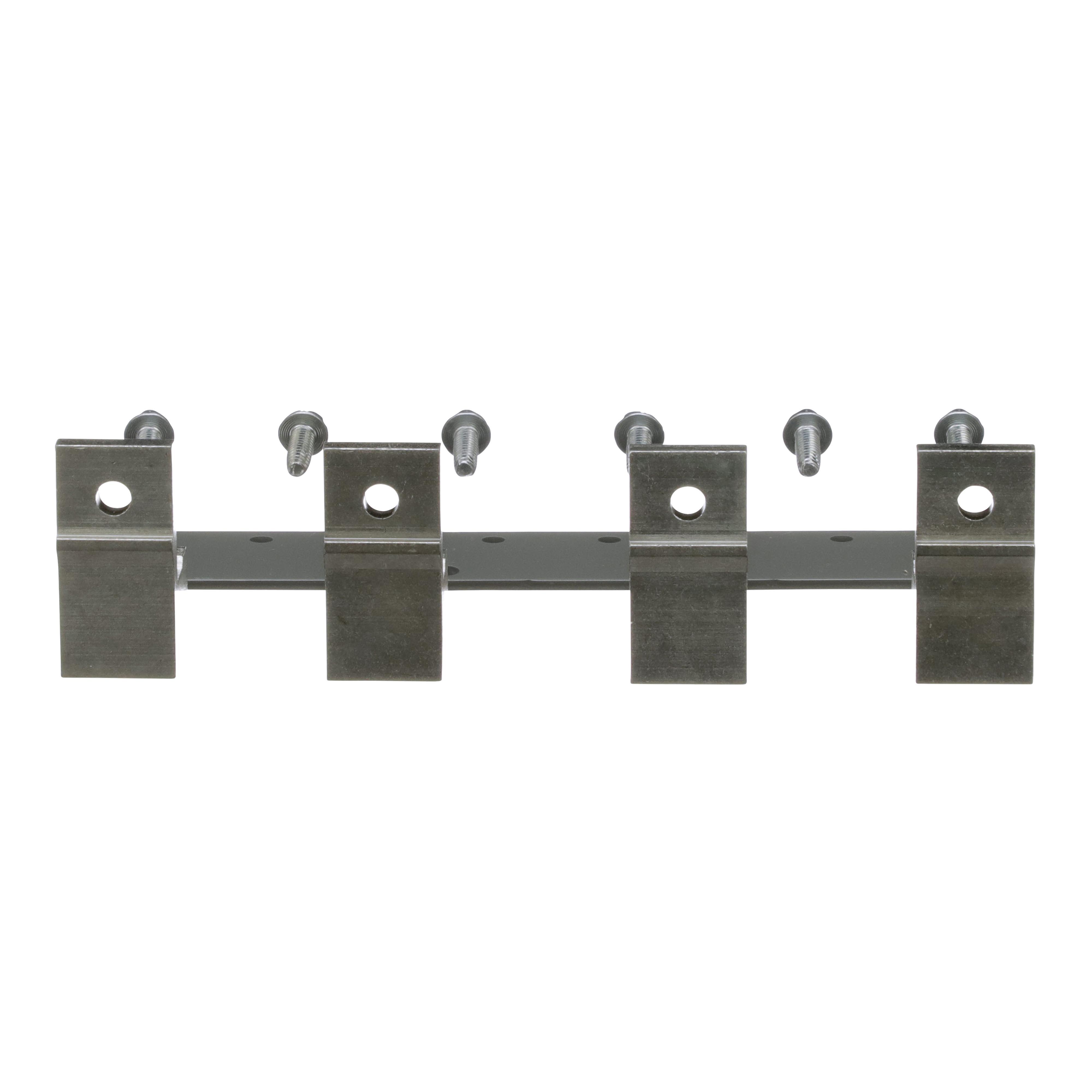

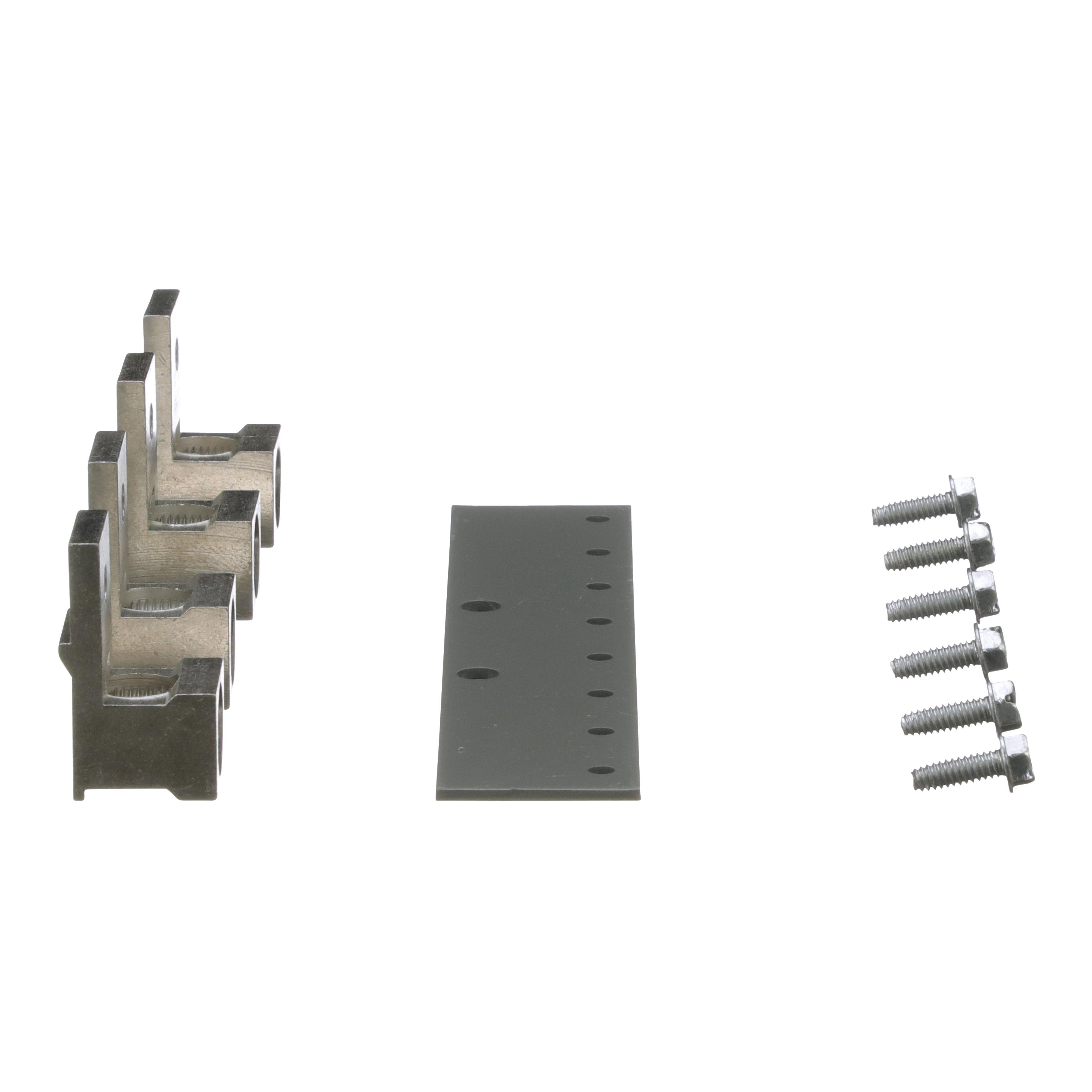

(6) 250 kcmil Al/Cu Cable, 4 Terminals |
Suitable For Use With |
LCL, LEL, LIL, LXL, LXIL, MGL, MJL, PGL and PJL Circuit Breaker |
Type |
Type 2 |
Standard Approval |
RoHS Compliant|PROP65: This product can expose you to chemicals including, Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
Application |
Provides Surge Suppression to Vulnerable Equipment Powered from Weather-Exposed Panels, Longer Product Life and Increased Tolerance to Unstable Power Conditions, Improves Surge Suppression to the Equipment, provides immediate Response if Suppressor is damaged, provides Immediate Notification through Audible and Visual Indication if reduced Suppression occurs and provides Premium Surge Suppression while managing both Thermal And Overcurrent End-of-life Events |
