Square D™ SU3040D400CB

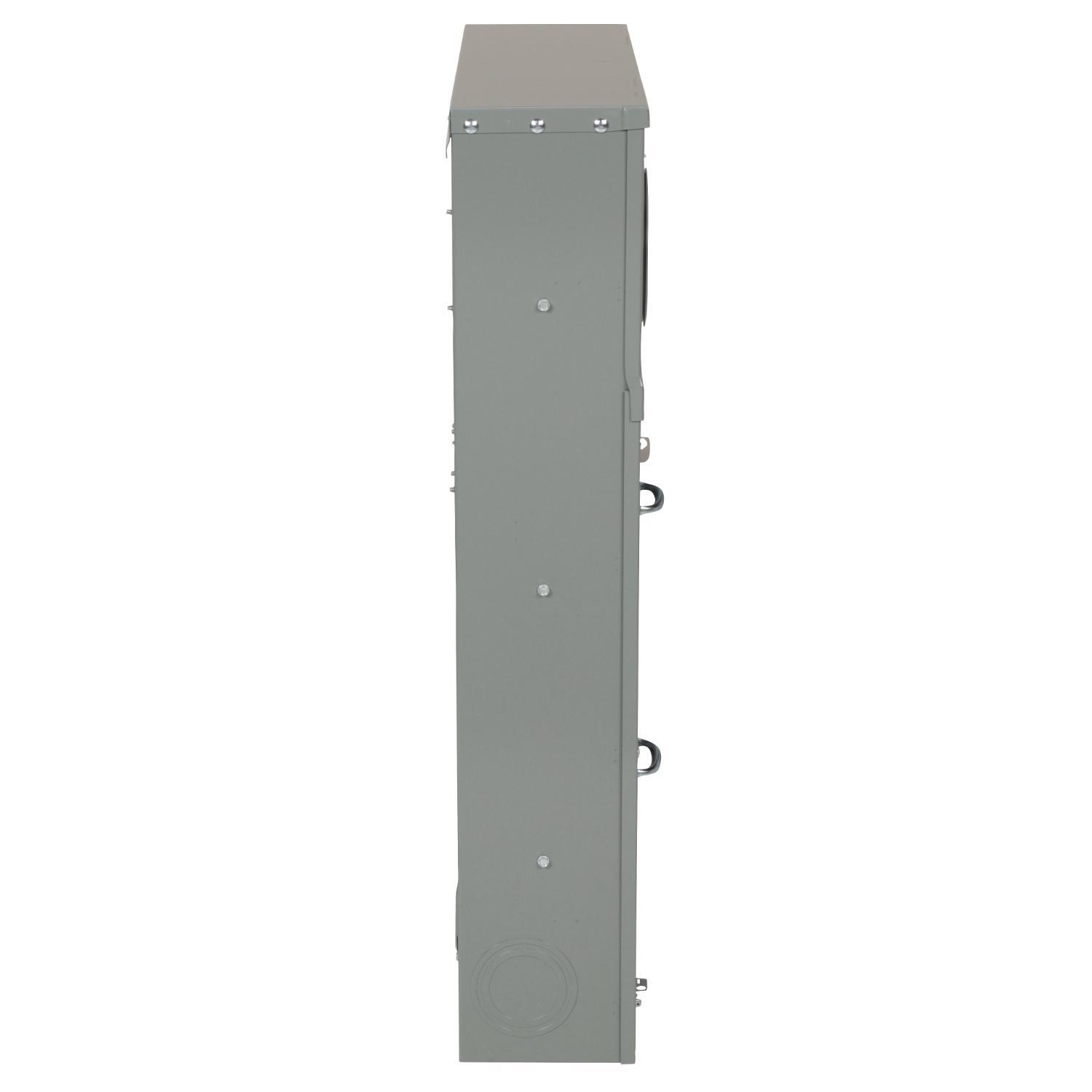

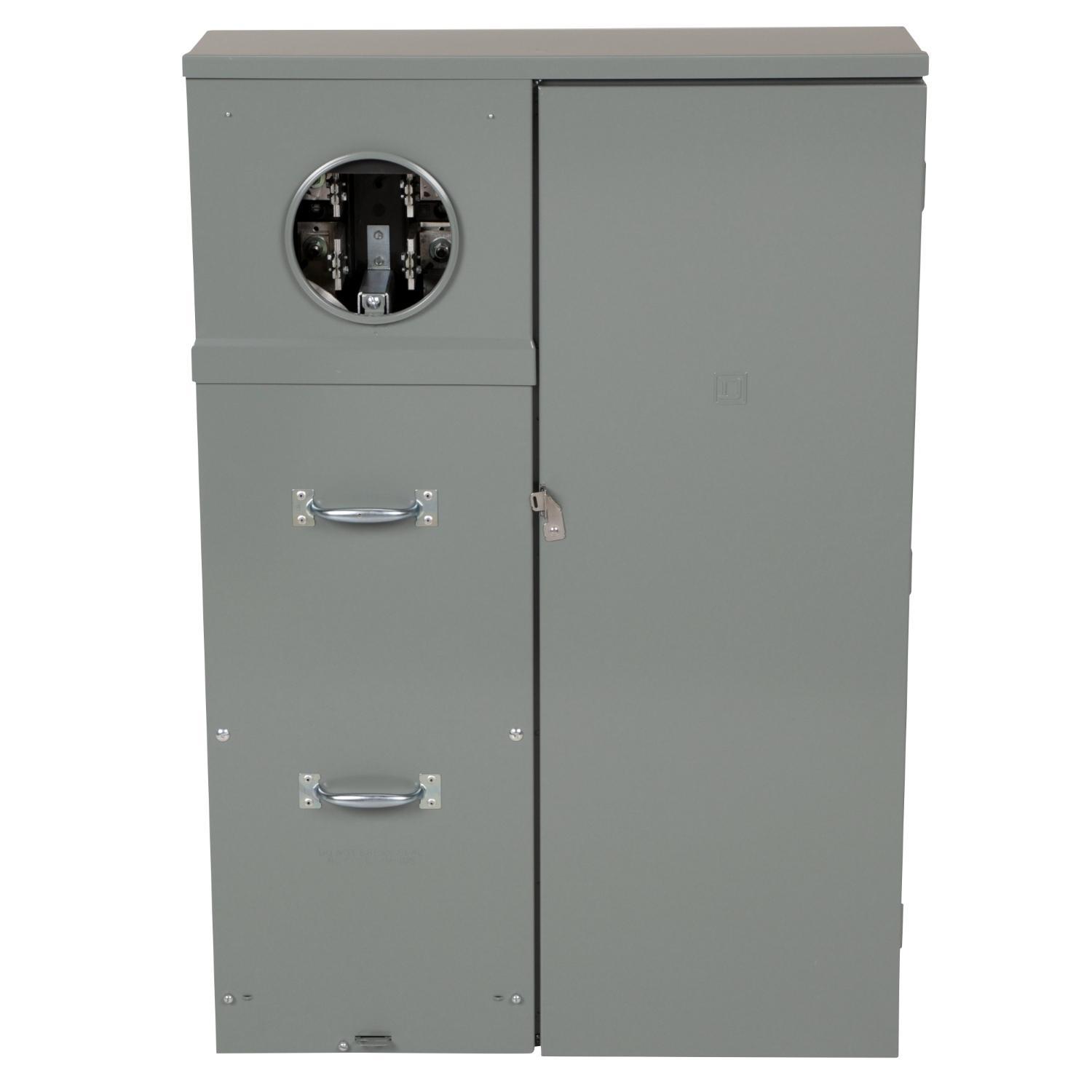

Square D™ HomeLine™ SU3040D400CB 30-Circuit 40-Space All-In-One Field Installed Rainproof Combination Service Entrance Meter Main With Class 320 Test Block Bypass, 400 A
Brand: Square D™
Item ID: 530747
MPN: SU3040D400CB
UPC: 785901521792
Login for Price
Features
- Multiple disconnect units can accommodate plug-on surge breaker™ secondary surge arrester
- Multiple disconnect units can be converted to semi-flush with addition of flange kit
- For use only on 120/240 VAC 1-phase, 3-wire system (4-jaw meter socket)
- Knockout provided in cover for use with barrel lock kit SCBRLLOCK
- Device configuration is not included in EUSERC standards
Description
Meter main devices are used in residential applications where local codes require service disconnects to be located outside the dwelling. They include the utility meter socket and factory installed and provisions for field installation of service disconnect to feed downstream devices. Meter mains are surface mount and typically used with interior mounted sub-feed load centers.
Square D™ HomeLine™ Combination Service Entrance Meter Main, 30-Circuit 40-Space All-In-One Field Installed Rainproof, 400 A, Underground Feed, 4 AWG to 250 kcmil Aluminum/Copper Wire, A-L Hub, Ring Cover, Stud Line/Service Ground Lug Terminal, Flush Mounting, 41-1/4 in H x 28-1/4 in W x 7-1/2 in D Dimensions
Specifications
Amperage Rating |
400 A |
Cover Type |
Ring |
Dimensions |
41-1/4 in H x 28-1/4 in W x 7-1/2 in D |
Feed Type |
Underground |
Hub Type |
A-L |
Mounting Type |
Flush |
Terminal Type |
Stud Line/Service Ground Lug |
Type |
30-Circuit 40-Space All-In-One Field Installed Rainproof |
Wire Size |
4 AWG to 250 kcmil Aluminum/Copper |
Standard Approval |
UL 50|UL 67|UL 414|UL File No. E6294|ANSI C12.7|NEMA PB-1|EUSERC Approved|Federal Specification W-P-115C|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|CSA Approved |
Application |
Residential Applications |
