Square D™ VH324NAWKGL

• Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
• Designed to satisfy individual requirements for all customers

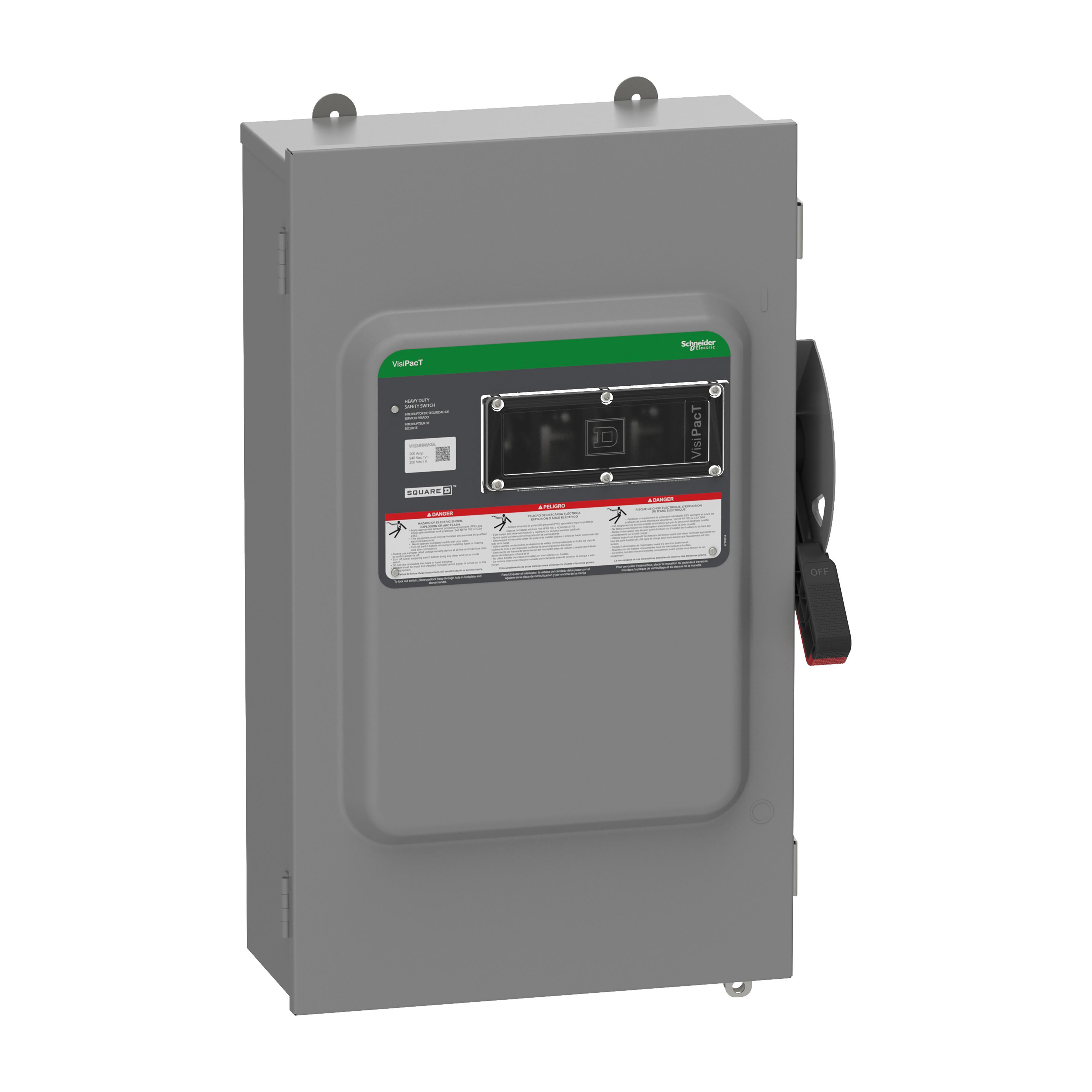

• Visipact safety switches come with a viewing window for quick visual verification of switch position
• QR code allow quick access to critical ratings and other useful product documentation
• Red and black handle indicates the ON (red) or OFF (black) condition of the switch

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade fusible heavy duty safety switch that is rated at 200A with a voltage 240 VAC and 250 VDC. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This switch is Type 12 rated with a galvannealed steel enclosure and comes with factory installed viewing window. The device accepts H,K,R fuse types as shipped and can be field modified for J fuses, unit is surface mounted. The safety switch has a 4-wire configuration with 3 poles and one solid neutral that is factory installed. The disconnect comes with factory installed equipment ground lugs. The wire range for this switch is AWG 6…250 kcmil aluminium and copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.

Square D™, VH324NAWKGL, Safety Switch, Heavy Duty Fusible Disconnect, 240 V AC/250 V DC, 200 A, 15, 25, 40, 60 hp, 1, 3 ph, 50 to 60 Hz Frequency, 3 Pole, 4 Wires, 10, 200 kA Short Circuit, 3PST Contact Form, Handle Actuator, Class H/J/K/R Insulation, NEMA 12 Enclosure, Surface Mounting, Lug Terminal, 19.25 in H x 17.01 in W x 9.02 in D Dimensions, Steel, Galvannealed
