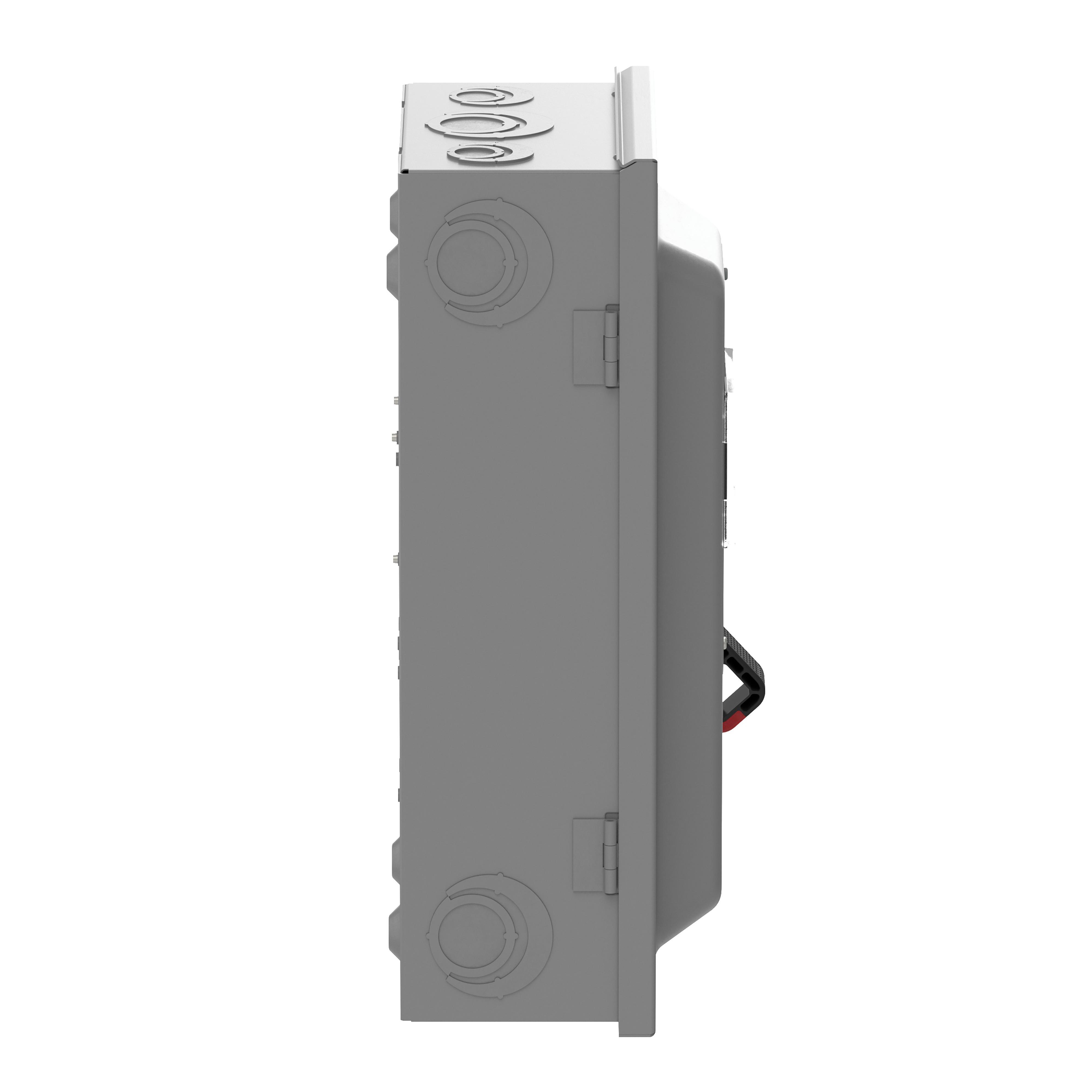

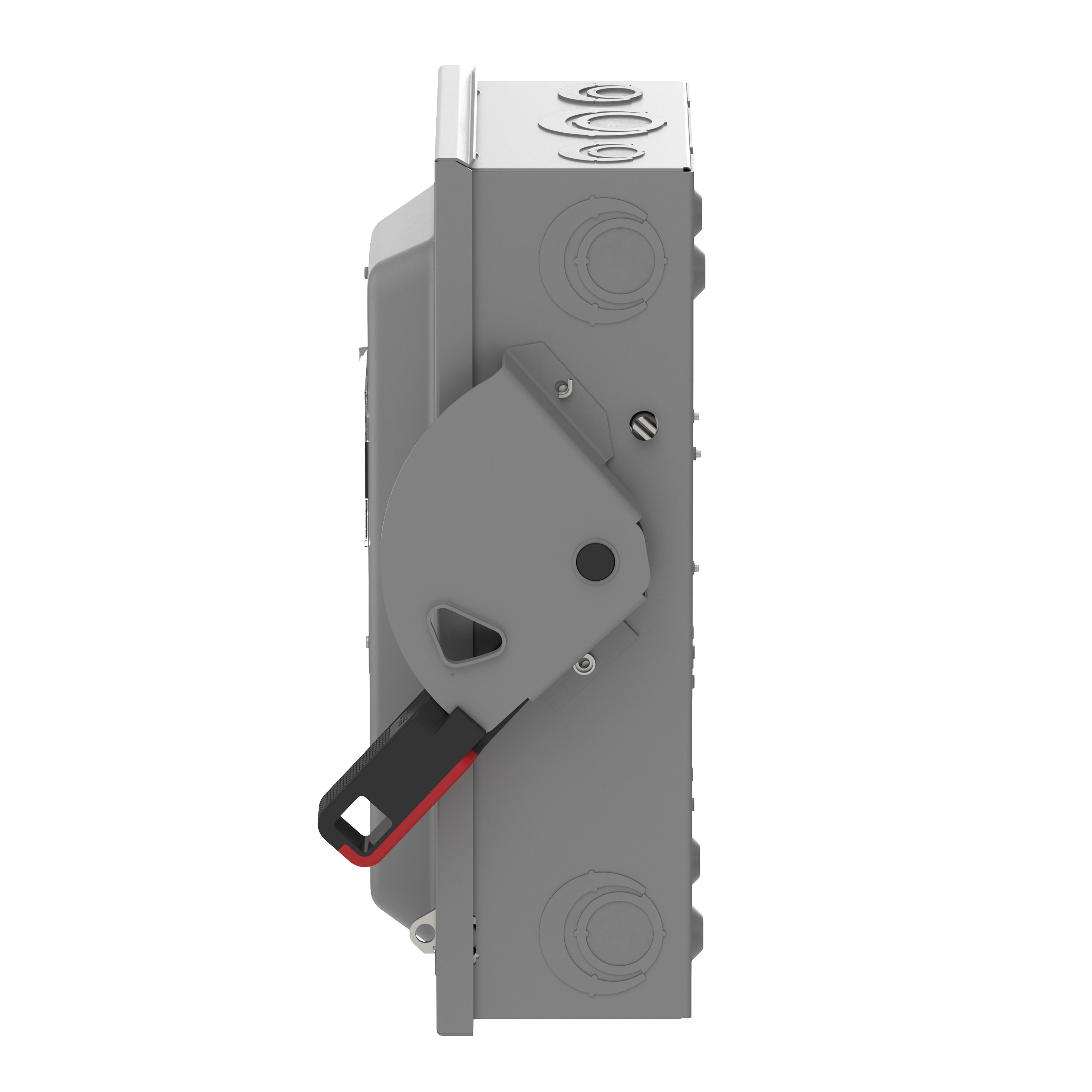

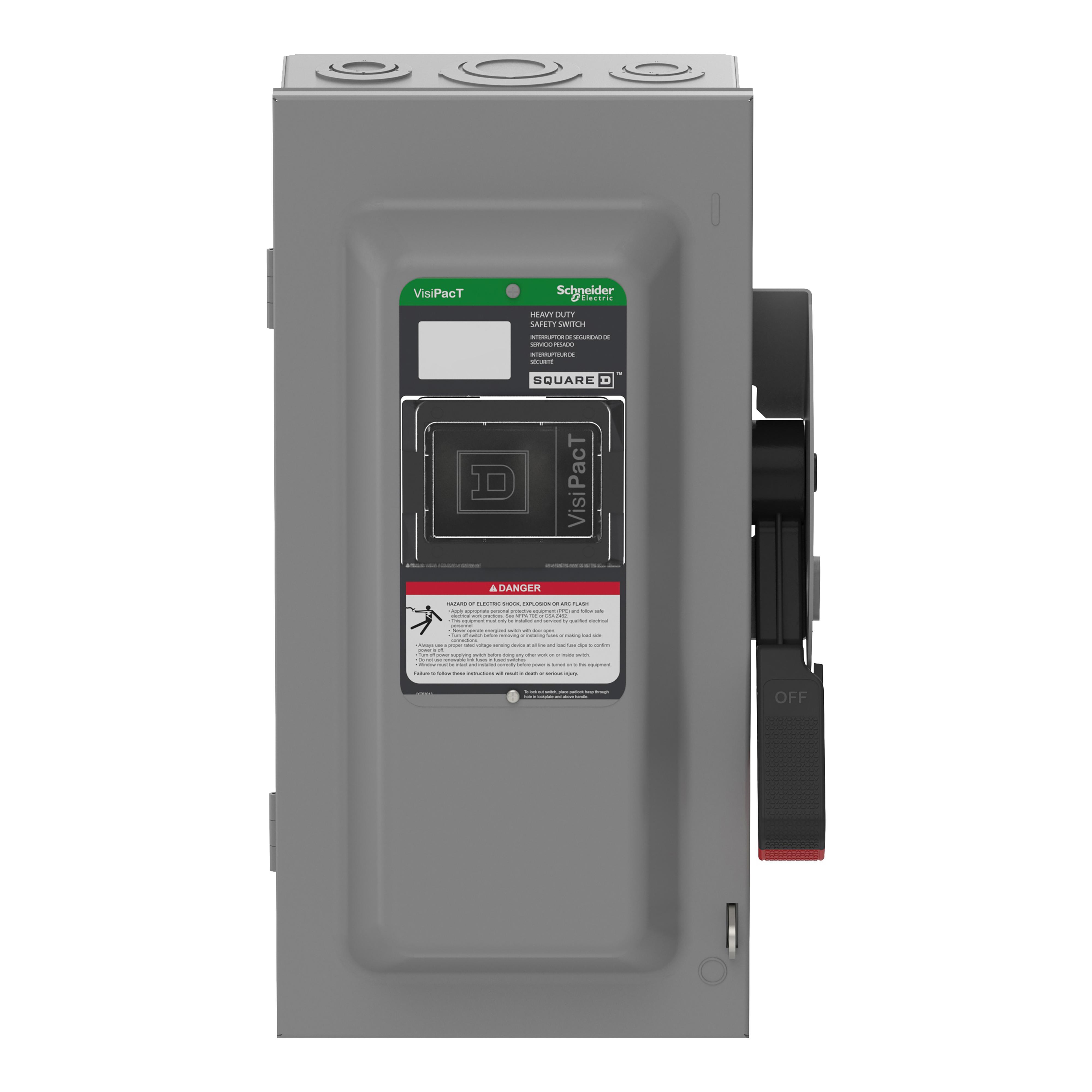

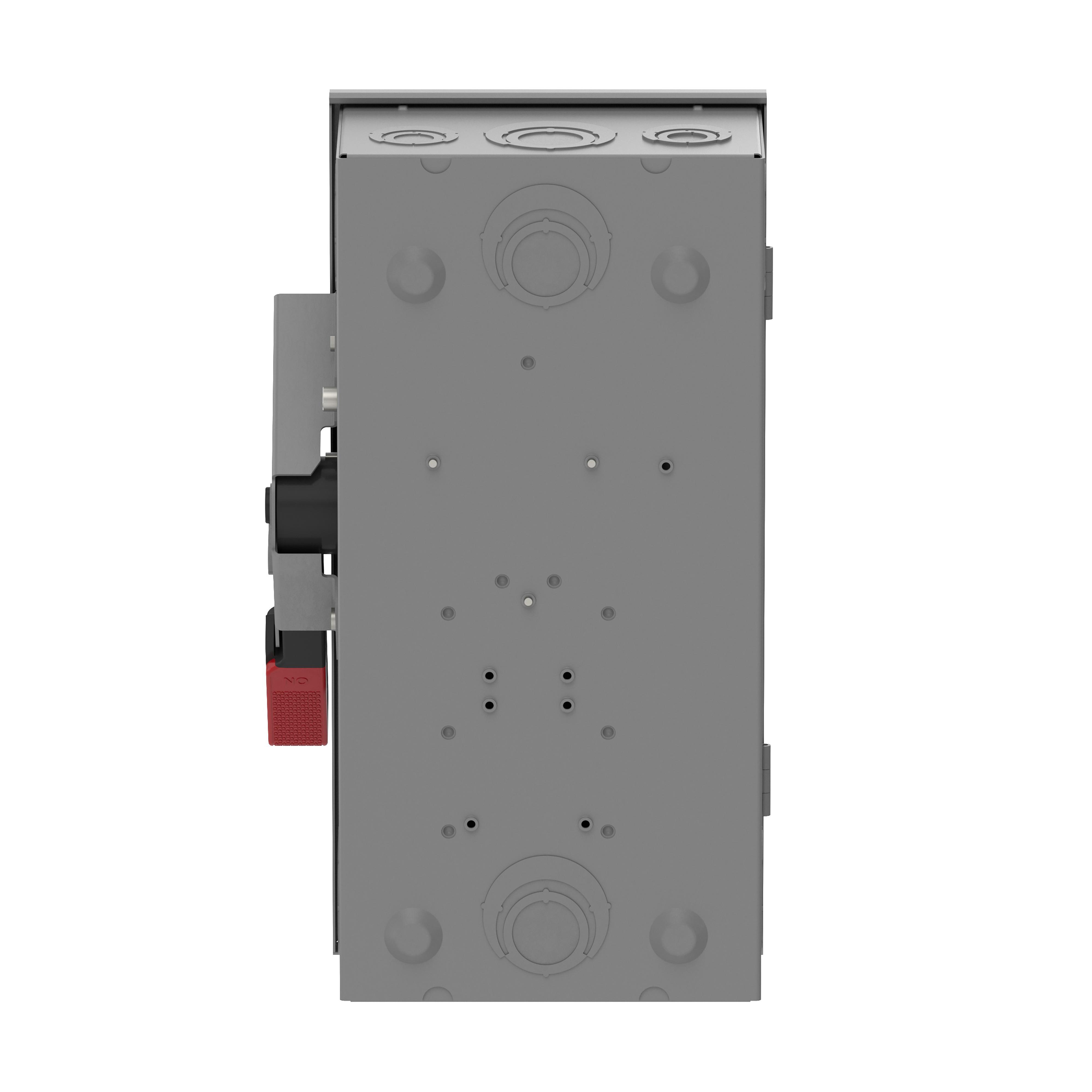

Square D™ VHU362
Square D™ VHU362 Heavy Duty Non-Fusible Disconnect Safety Switch, 600 VAC, 600 VDC, 60 A, 10, 20, 25, 30, 50, 60 hp, Single Throw Contact, 3 Poles
Brand: Square D™
Item ID: 546811
MPN: VHU362
Login for Price
Features
- Fusible and Non-Fusible options
- Rated Horsepower, 500hp maximum
- Short Circuit Current Rating, Up to 200 kA utilizing appropriate Class R and Class R Fuse kits, or Class L, or Class J fuses
Description
Square D™, VHU362, Safety Switch, Heavy Duty Non-Fusible Disconnect, 600 VAC, 600 VDC, 60 A, 10, 20, 25, 30, 50, 60 hp, 1, 3 pH, 50 to 60 Hz Frequency, 3 Pole, 3 Wires, Single Throw Contact Form, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, 18.75 in H x 8.91 in W x 7.04 in D Dimensions, Steel
Specifications
Amperage Rating |
60 A |
Contact Form |
Single Throw |
Dimensions |
18.75 in H x 8.91 in W x 7.04 in D |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50 to 60 Hz |
Horsepower |
10, 20, 25, 30, 50, 60 hp |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
3 |
Number of Wires |
3 |
Phase |
1, 3 pH |
Terminal Type |
Lug |
Type |
Heavy Duty Non-Fusible Disconnect |
Voltage Rating |
600 VAC, 600 VDC |
Standard Approval |
UL Listed File E2875 |
Application |
For Heavy application |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_VHU362_Full_Engineering_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_VHU362_Full_Engineering_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_VHU3612AWKGL_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_VHU3612AWKGL_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_VHU362_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_VHU362_RoHS.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_VHU362_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Square_D_VHU362_Specification_Sheet.pdf
