Square D™ WS363

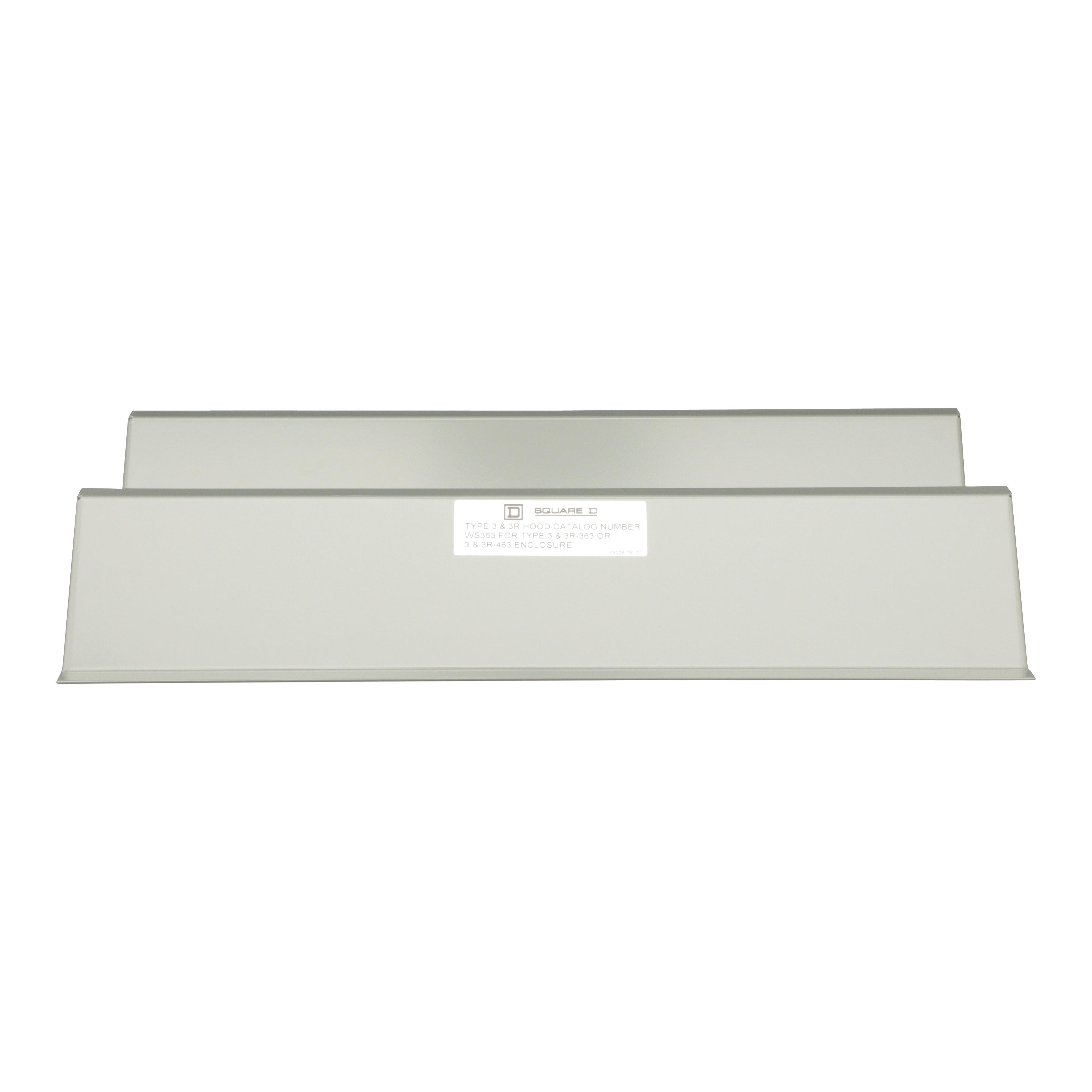

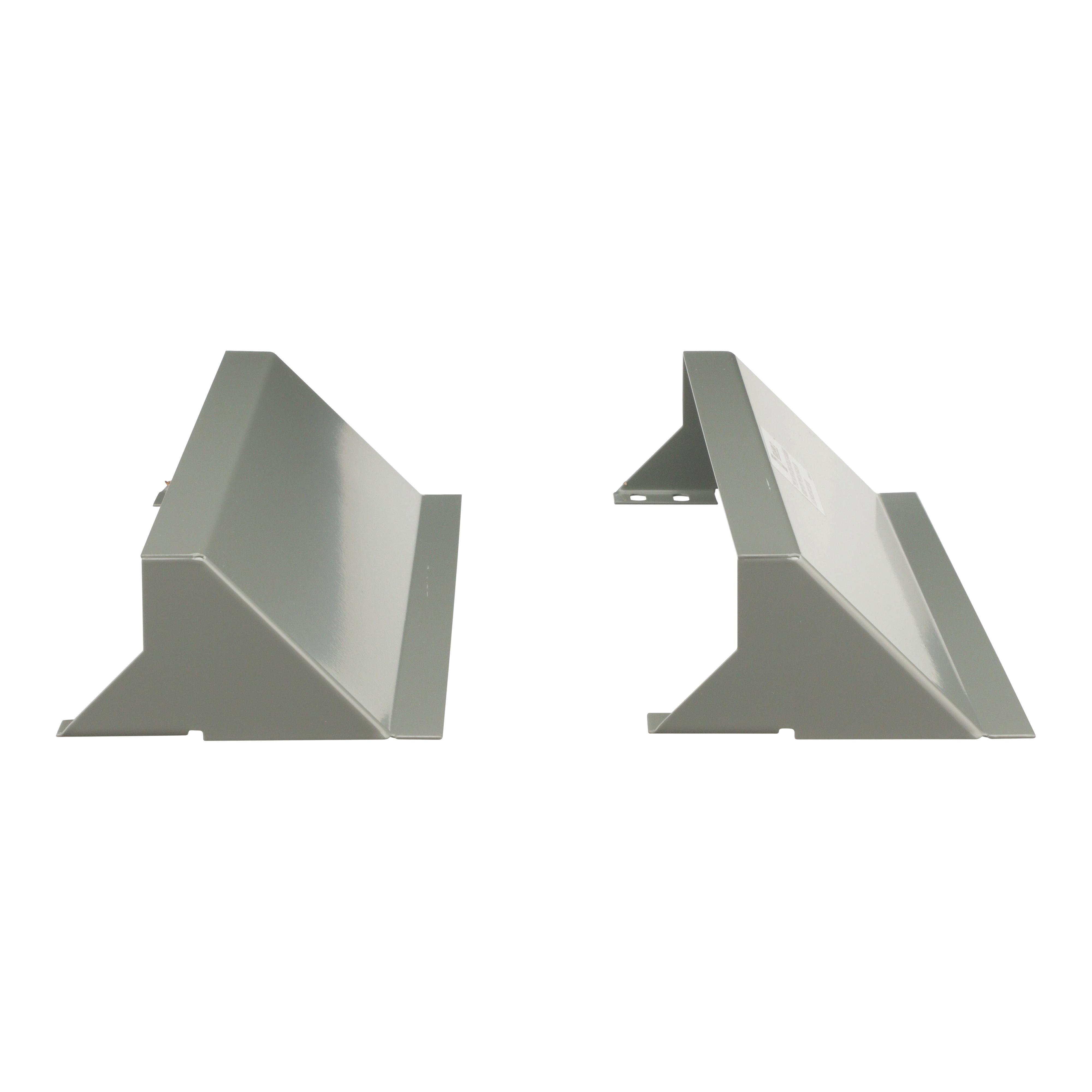

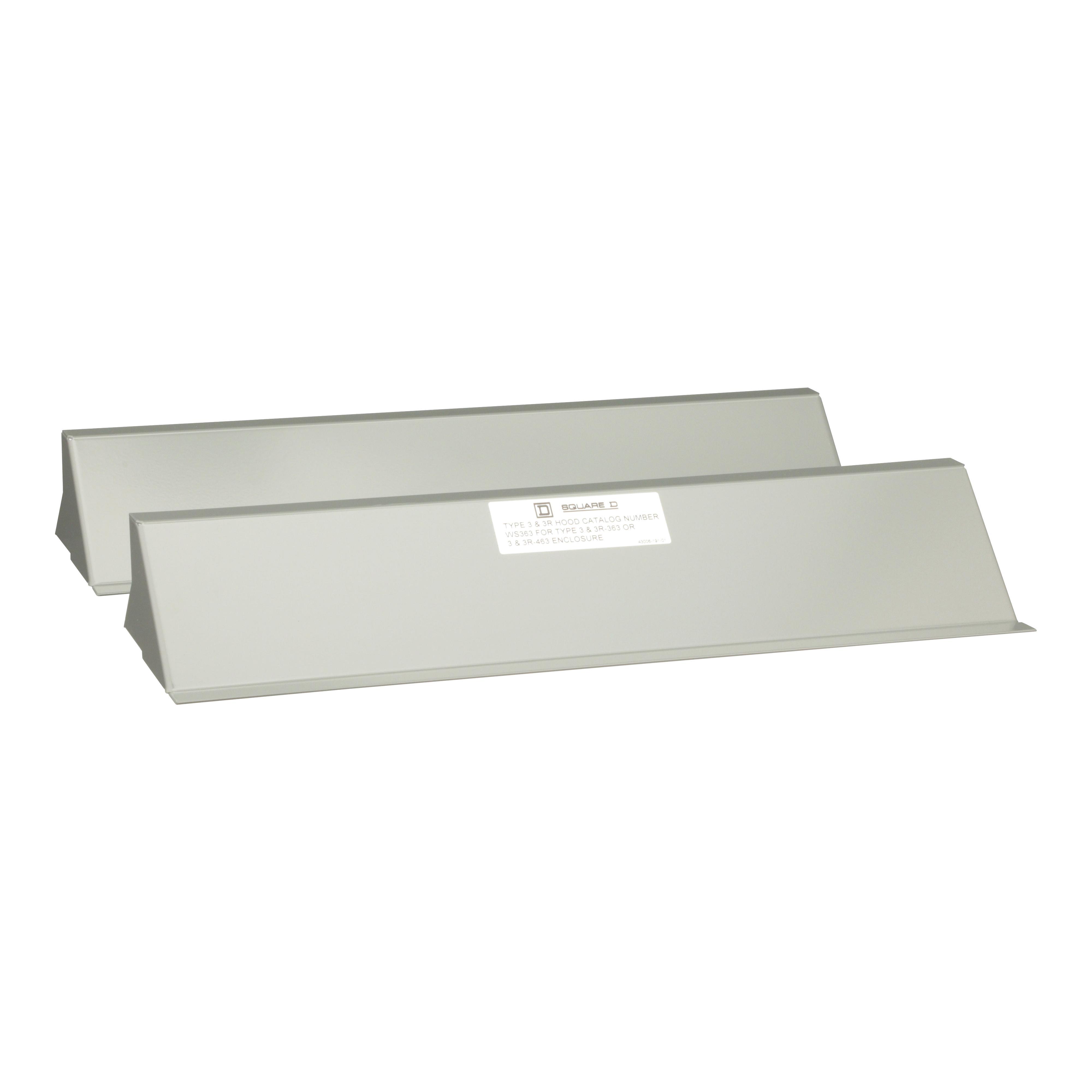

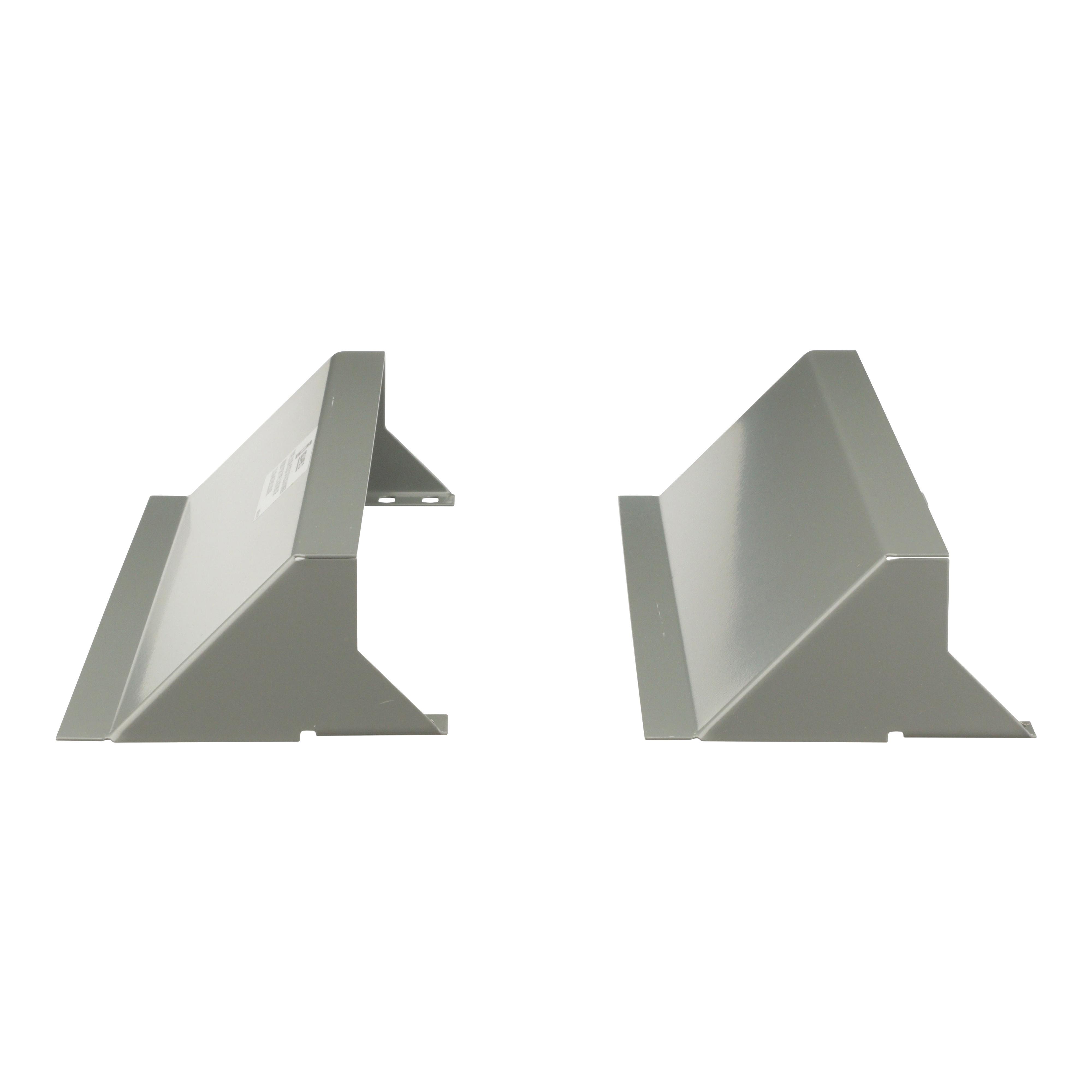

Square D™ WS363 Transformer Weathershield, For Use With D Style Enclosure, D17 and H17 Transformer
Brand: Square D™
Item ID: 525836
MPN: WS363
UPC: 785901357001
Login for Price
Features
- Direct mounting
Description

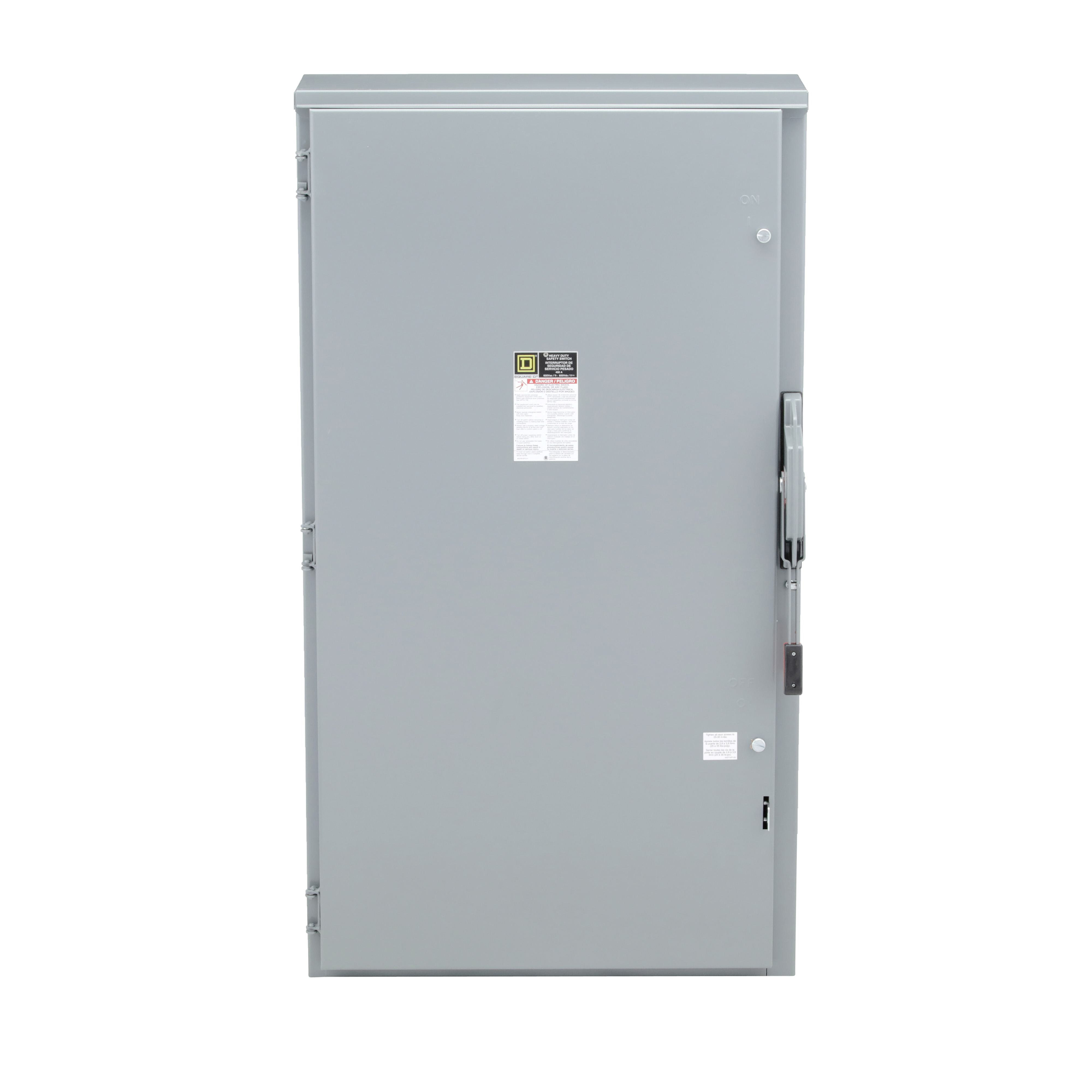

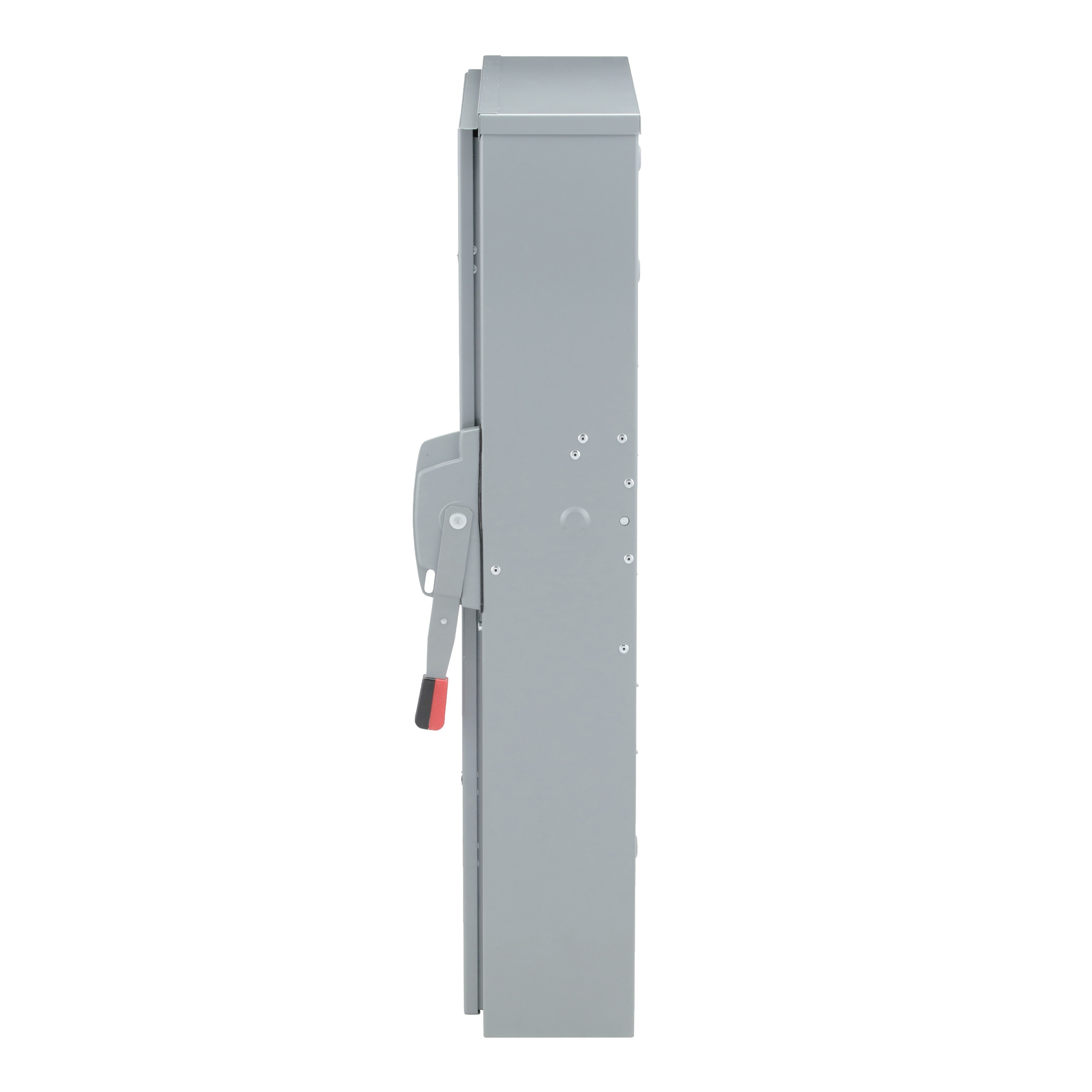

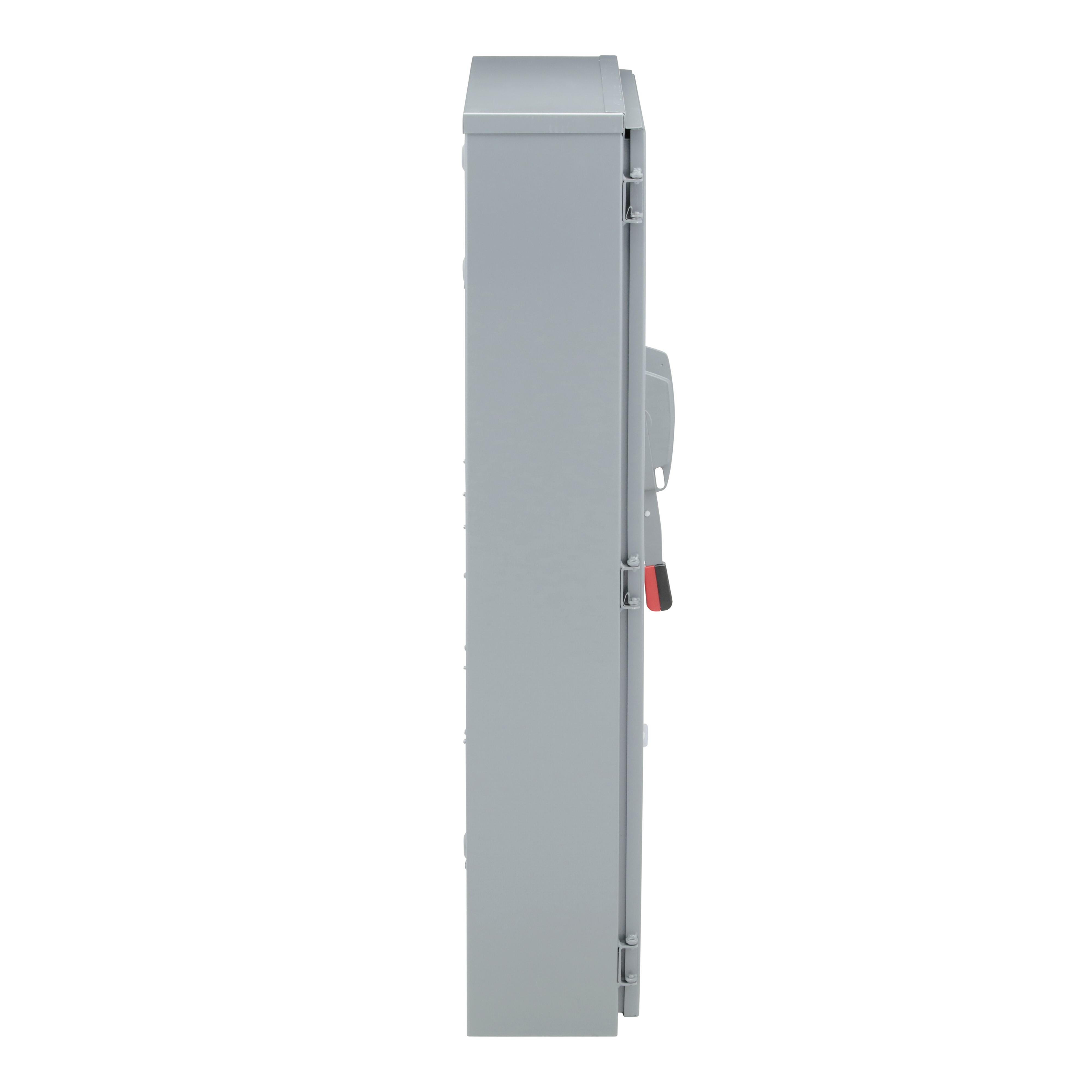

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions; from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require.
Square D™ Transformer Weathershield, NEMA 3R Enclosure, Direct Mount, For Use with: D Style Enclosure, D17 and H17 Transformer, 20 in W x 16 in D x 27 in H
Specifications
Actuator Type |
Handle |
Amperage Rating |
400 A |
Contact Form |
TPST |
Dimensions |
20 in W x 16 in D x 27 in H |
Enclosure Type |
NEMA 3R |
Finish |
Hot Dipped Galvanized |
Horsepower |
50 hp, 125 hp |
Insulation Type |
Phenolic |
Material |
Steel |
Mounting Type |
Surface |
Number of Poles |
3 |
Phase |
3 |
Short Circuit Current Rating |
10 kA |
Specifications |
NEMA 3R Enclosure, Direct Mount |
Suitable For Use With |
D Style Enclosure, D17 and H17 Transformer |
Terminal Type |
Lug |
Type |
Heavy Duty Fusible Iceproof Rainproof Sleetproof |
Voltage Rating |
600 VAC/VDC |
Standard Approval |
RoHS Compliant|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For weatherproofing transformer unit enclosures applications |
