Square D™ ZB4BX84

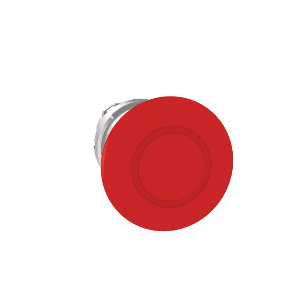

Square D™ ZB4BX84 Emergency Stop Switching Off Pushbutton Head, 22 mm, Round Shape, Red
Brand: Square D™
Item ID: 434707
MPN: ZB4BX84
Login for Price
Features
- Trigger action and mechanical latching operator
- NEMA 12/13/4/14X enclosure
- IP69, IP67, IP66 conforming to IEC 60529, IP69K degree of protection
- Chromium plated metal bezel
- Red mushroom unmarked operator profile
- Push-pull reset
- -40 to 158 deg F operating temperature
- 5 gn (f = 2 to 500 Hz) conforming to IEC 60068-2-6 vibration resistance and 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27 shock resistance
Description
Square D™ Pushbutton Head, Emergency Stop Switching Off, Series: ZB4, 22 mm Size, Round Shape, Red
Specifications
Color |
Red |
Series |
ZB4 |
Shape |
Round |
Size |
22 mm |
Type |
Emergency Stop Switching Off |
Standard Approval |
EN/IEC 60947-5-4|UL 508|EN/IEC 60947-5-1|EN/IEC 60947-5-5|JIS C 4520|GB 14048.5|IEC 60364-5-53|EN/IEC 60947-1|CSA C22.2 No 14 |
