Soladeck 0399

• Model Number: 0399

• Material: 20-gauge G90 galvanized steel

• Finish: Black powder-coated

• Mounting: Universal rail mount

• Interior Space: 162 cubic inches

• Knockouts: Four ¾” knockouts, one ¼” ground wire knockout

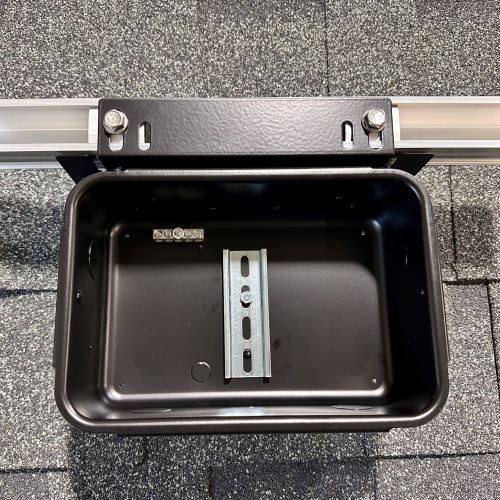

• Pre-installed Components: 35mm DIN rail, ground block

• Voltage Rating: 1000 VDC / 240 VAC

• Current Rating: 100A

• Enclosure Rating: NEMA Type 3R

• Certifications: UL 1741, UL50 Type 3R, CSA C22.2 No. 290

• Operating Temperature: -35°C to +75°C

• Dimensions: Approximately 3" height

• Weight: Approximately 2.74 lbs

• Warranty: Lifetime

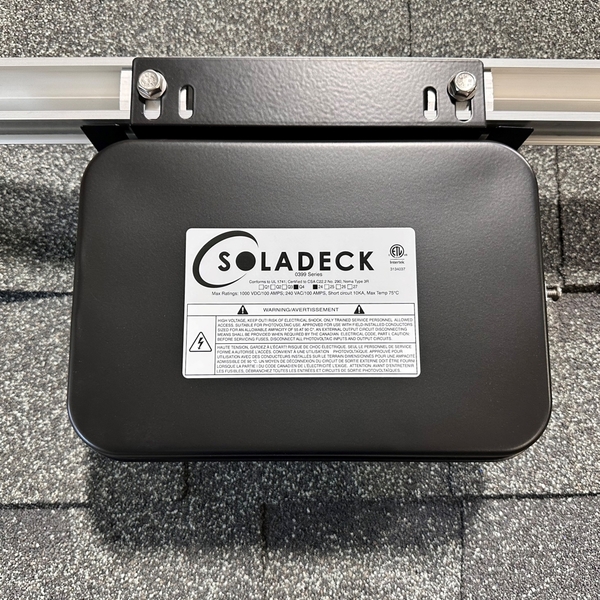

The SolaDeck 0399 is a robust, weather-resistant junction box designed for rail-mounted solar PV installations. Constructed from 20-gauge G90 galvanized steel with a black powder-coated finish, it ensures durability and corrosion resistance in harsh outdoor environments. The enclosure features a seamless stamped design, eliminating welds and weak points, and offers 162 cubic inches of interior space for complex wiring tasks. Pre-installed with a 35mm DIN rail and ground block, it streamlines installation and wiring processes. The box includes four ¾” knockouts for conduit entry, a ¼” ground wire knockout, and a slotted cover secured with a single set screw for easy access. Rated for 1000 VDC/100A and 240 VAC/100A, it complies with UL 1741, UL50 Type 3R, and CSA C22.2 No. 290 standards, making it a reliable solution for various solar applications.
