Soladeck 0799B

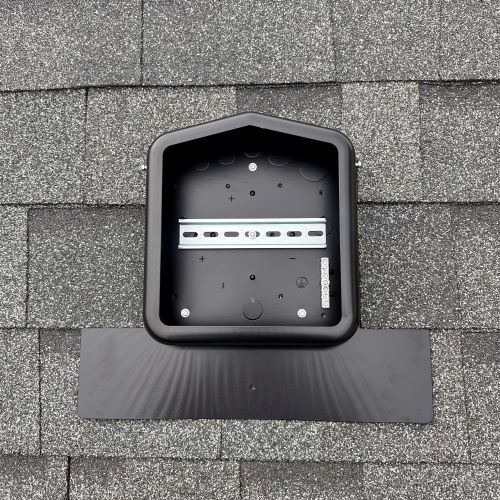

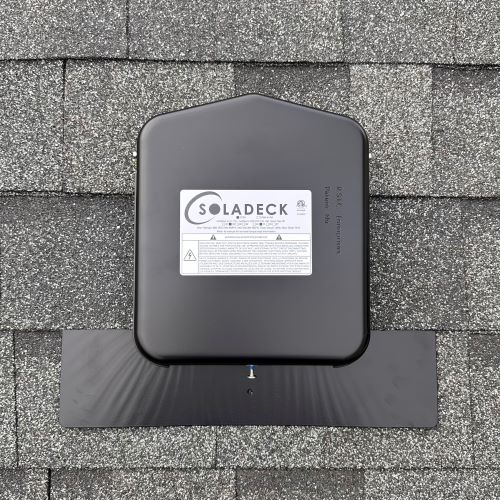

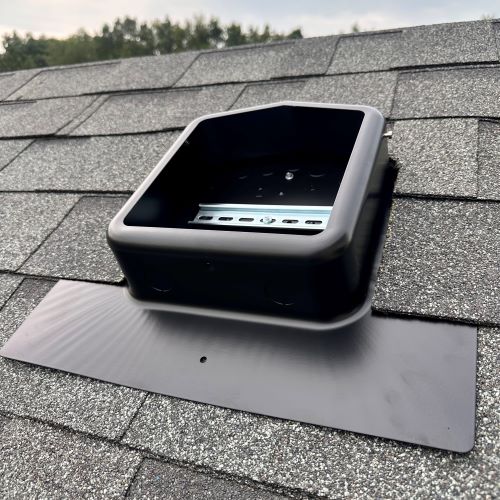

Soladeck 0799-5B Roof PV Junction Box – 600 VDC/115A, 240 VAC/60A, Galvanized Steel, NEMA 3R.
Brand: Soladeck
Item ID: 557404
MPN: 0799B
Login for Price
Features
- Designed for PV systems to ensure safe and efficient wiring connections.
- Rated for 600 VDC/115A and 240 VAC/60A for high-capacity solar applications.
- Constructed from galvanized steel for durability and corrosion resistance.
- NEMA Type 3R rated for outdoor, weather-resistant protection.
- Compatible with roof slopes from 2/12 to 12/12 for versatile installation.
- Lifetime warranty for long-term reliability and peace of mind.
Description
The Soladeck 0799-5B Roof PV Junction Box is designed for seamless and secure integration of photovoltaic (PV) systems. Built with durable galvanized steel, this junction box supports 600 VDC at 115A and 240 VAC at 60A, ensuring reliable power distribution. Its NEMA Type 3R rating provides superior weather resistance, making it ideal for outdoor rooftop installations. Compatible with roof slopes from 2/12 to 12/12, it is a perfect solution for solar energy projects and comes with a lifetime warranty for long-term reliability.
Documentation
Technical drawings with dimensions, mounting points, and layout details for the SolaDeck 0799 series roof PV junction box. https://www.revcoelectric.com//ASSETS/DOCUMENTS/ITEMS/EN/0999-Series-Drawings.pdf
Installation instructions, safety guidance, roof mounting steps, and wiring details for SolaDeck 0799 series roof PV junction boxes. https://www.revcoelectric.com//ASSETS/DOCUMENTS/ITEMS/EN/0599-0799-0999-0766-41AD-Installation-Manual-13th-Edition (1).pdf
Product ratings, construction specs, enclosure details, and application data for SolaDeck 0799 and 0999 roof PV junction boxes. https://www.revcoelectric.com//ASSETS/DOCUMENTS/ITEMS/EN/0799-0999-Spec-Sheet.pdf
