CCI® 09719

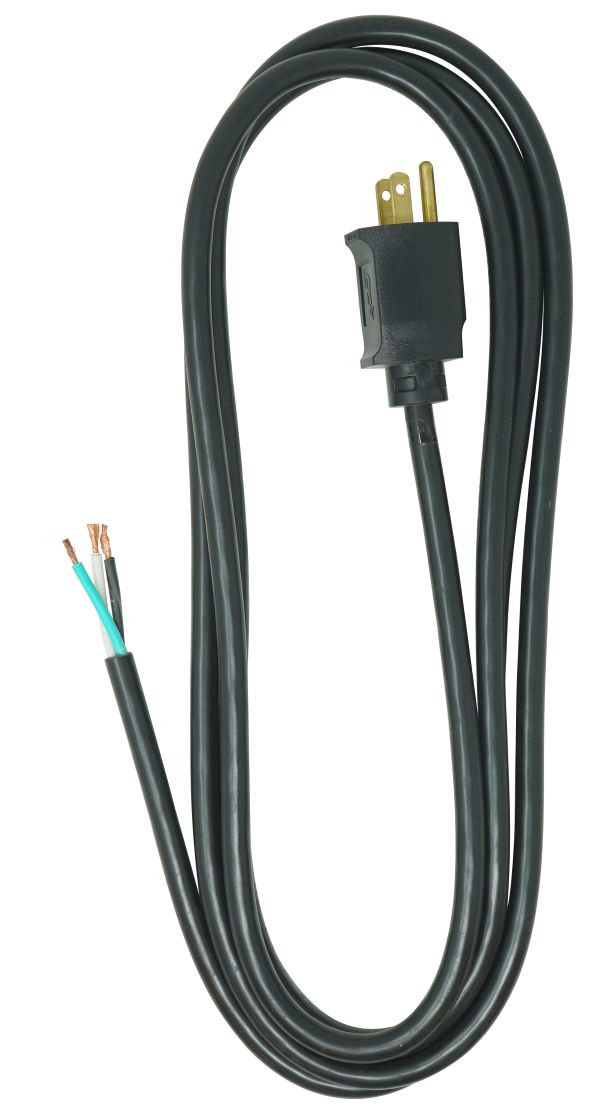

CCI® 09719 Type SJTW Replacement Power Supply Cord, 125 VAC, 15 A, 9 ft L Cord, 3 Conductors
Brand: CCI®
Item ID: 419389
MPN: 09719
Login for Price
Features
- Item Features 01=Reinforced blades help prevent accidental bending or breaking
- Item Features 02=Heavy duty strain relief protects electrical connections resulting in longer cord life
- Item Features 03=Black white green insulation colors
- Item Features 04=NEMA 5-15P attachment plug configuration
- Item Features 05=1-1/2 in ROJ, 3/8 in conductor strip open end configuration
Description
CCI® Power Supply Cord, Type SJTW Replacement, 125 VAC, 15 A Electrical Rating, 9 ft Cord Length, 3 Conductors, 14 AWG Conductor, Bare Copper Conductor, 0.37 in OD, PVC Insulation, NEMA 5-15P Enclosure, -40 to 60 deg C, Black
Specifications
Amperage Rating |
15 A |
Color |
Black |
Conductor Material |
Bare Copper |
Conductor Size |
14 AWG |
Conductor Type |
Bare Copper |
Cord Length |
9 ft |
Electrical Ratings |
125 VAC, 15 A |
Enclosure |
NEMA 5-15P |
Insulation Material |
PVC |
Jacket Color |
Black |
Jacket Material |
PVC |
Length |
9 ft |
Number of Conductors |
3 |
Outside Diameter |
0.37 in |
Strands |
41/30 |
Temperature Rating |
-40 to 60 deg C |
Type |
Type SJTW Replacement |
Voltage Rating |
125 VAC |
Standard Approval |
UL|cUL Listed |
Application |
For power tool applications |
