Southwire - Topaz 150

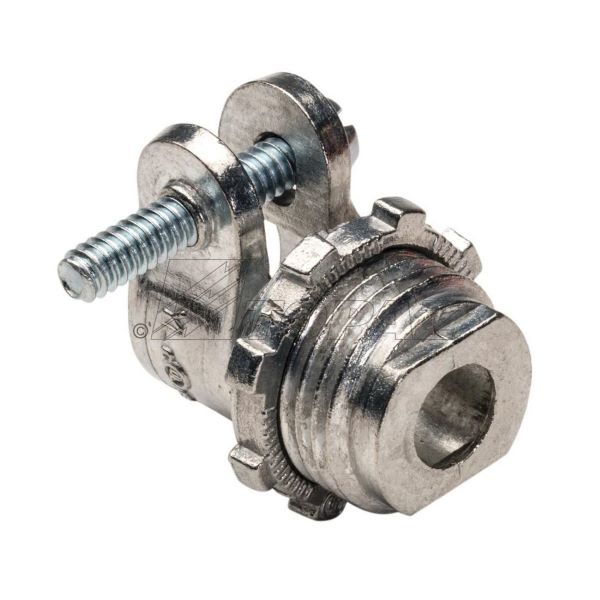

Southwire - Topaz 150 Straight Connector, 3/8 in Trade, 0.58 to 0.61 in Cable Openings, Die Cast Zinc
Brand: Southwire - Topaz
Item ID: 9292
MPN: 150
Login for Price
Description
Southwire - Topaz BX-FLEX connectors feature squeeze type straight construction and are fabricated from naturally corrosion-resistant and durable zinc die cast. Securely joins flexible metal conduit to EMT and in dry locations connects flexible metal conduit or armored cable to electrical boxes or enclosures. Single screw assembly in sizes 3/8 to 2 in, 2 screw assembly in sizes 2-1/2 to 4 in, available for conduit sizes 3/8 to 4 in, UL listed. For use in dry locations only.
Southwire - Topaz Connector, Straight, 3/8 in Trade, Cable Openings: 0.58 to 0.61 in, BX-Flex Cable, Threaded x Squeeze Connection, Die Cast Zinc, 1 in L Dimensions
Specifications
Cable Openings |
0.58 to 0.61 in |
Cable Type |
BX-Flex |
Connection Type |
Threaded x Squeeze |
Dimensions |
1 in L |
Material |
Die Cast Zinc |
Trade Size |
3/8 in |
Type |
Straight |
Standard Approval |
CSA Certified|UL Listed|UL 514B|UL File No. E148716|US Federal Specification A-A-50552|NEMA/ANSI FB-1|Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D |
Application |
For connecting flexible metallic conduit and steel AC cable to a steel outlet box, load center or other metal enclosure |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_130CSL_Catalog.pdf
