Southwire - Topaz 231S

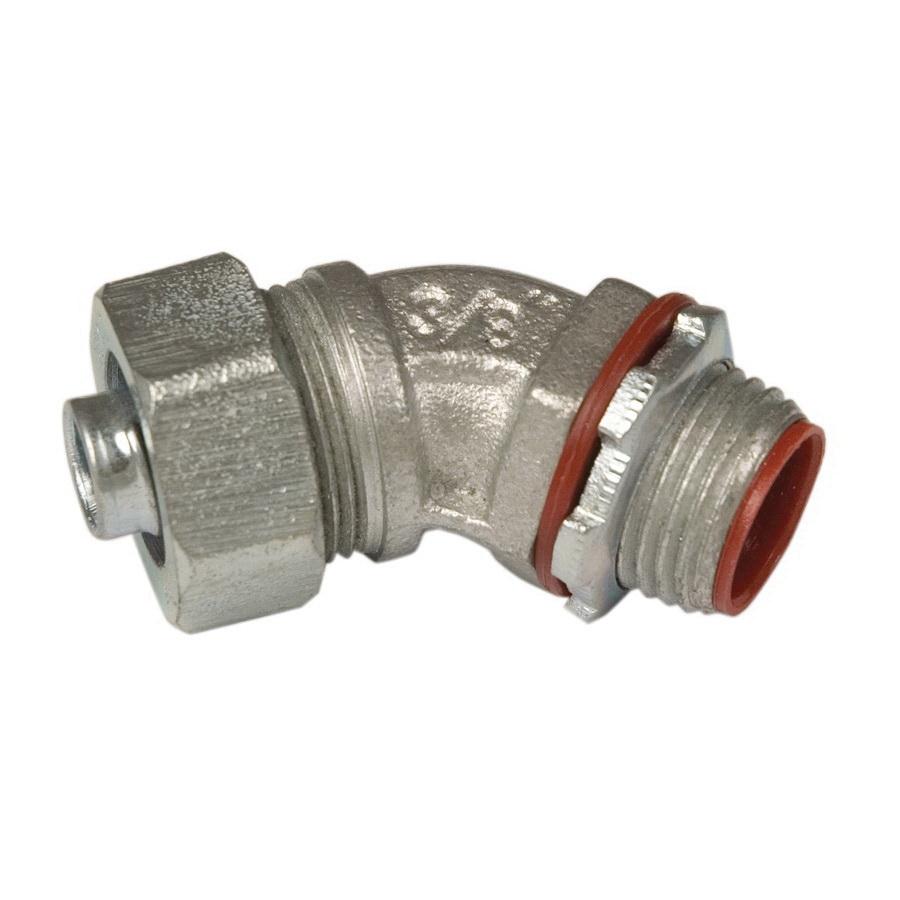

Southwire - Topaz 231S Component Liquid Tight Connector With Insulated Throat, 1/2 in Trade, 45 deg, Malleable Iron, Zinc Plated
Brand: Southwire - Topaz
Item ID: 9510
MPN: 231S
Login for Price
Features
- Liquidtight, raintight, oiltight
- Tapered threaded male hub NPT
- Insulated throat protects conductors from abrasion damage
- Compact slim diameter with small turning radius
- Zinc electro plated for excellent durability
Description
Topaz's 45° liquidtight connectors with insulated throat ensure an enduring, liquidtight connection for liquidtight conduit and can serve to terminate an external bonding conductor that runs parallel to conduit. Fabricated from strong malleable iron and assembled with a steel locknut, the connector features an insulated throat to protect against conductor abrasion. Zinc plated finish ensures additional resilience and enduring integrity; available for conduit sizes from 3/8” to 4”; UL listed for use in hazardous conditions. Complies with NEC 501-4(b), 502-4(a) (2) Class 1 Div. 2, Class II Div. 1 and 2 and Class III Div. 1 and 2.
Southwire - Topaz Liquid Tight Connector, Component, 1/2 in, 45 deg, For Use With: Ground and Seal Liquid Tight Conduit to Box/Enclosure, Malleable Iron, Zinc Plated, 1.38 in H
Specifications
Angle |
45 deg |
Dimensions |
1.38 in H |
Finish |
Zinc Plated |
Material |
Malleable Iron |
Suitable For Use With |
Ground and Seal Liquid Tight Conduit to Box/Enclosure |
Trade Size |
1/2 in |
Type |
Component |
Standard Approval |
UL 514B|UL/cULus File No. E148716|CSA Certified|Federal Specification No. A-A-50552|NEMA/ANSI FB-1|Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D|NEC 501-4(b), 502-4(a) (2) Class I Div 2|Class II Div 1 2|Class III Div 1 2 |
Application |
Hazardous and Wet Locations |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_1181_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_1181_Catalog.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9db67edd374e98c9f1a0d90e66018fdb8c05832c492bf2b85330d069d44adbe0.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9db67edd374e98c9f1a0d90e66018fdb8c05832c492bf2b85330d069d44adbe0.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_1181_Warranty.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_1181_Warranty.pdf
