Southwire® 2587SW8802

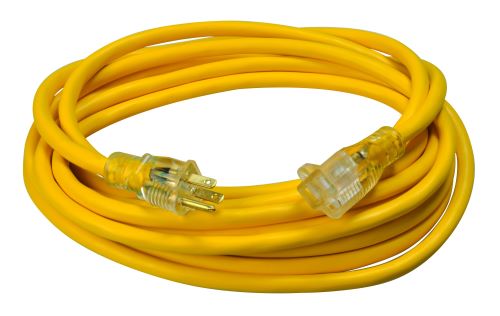

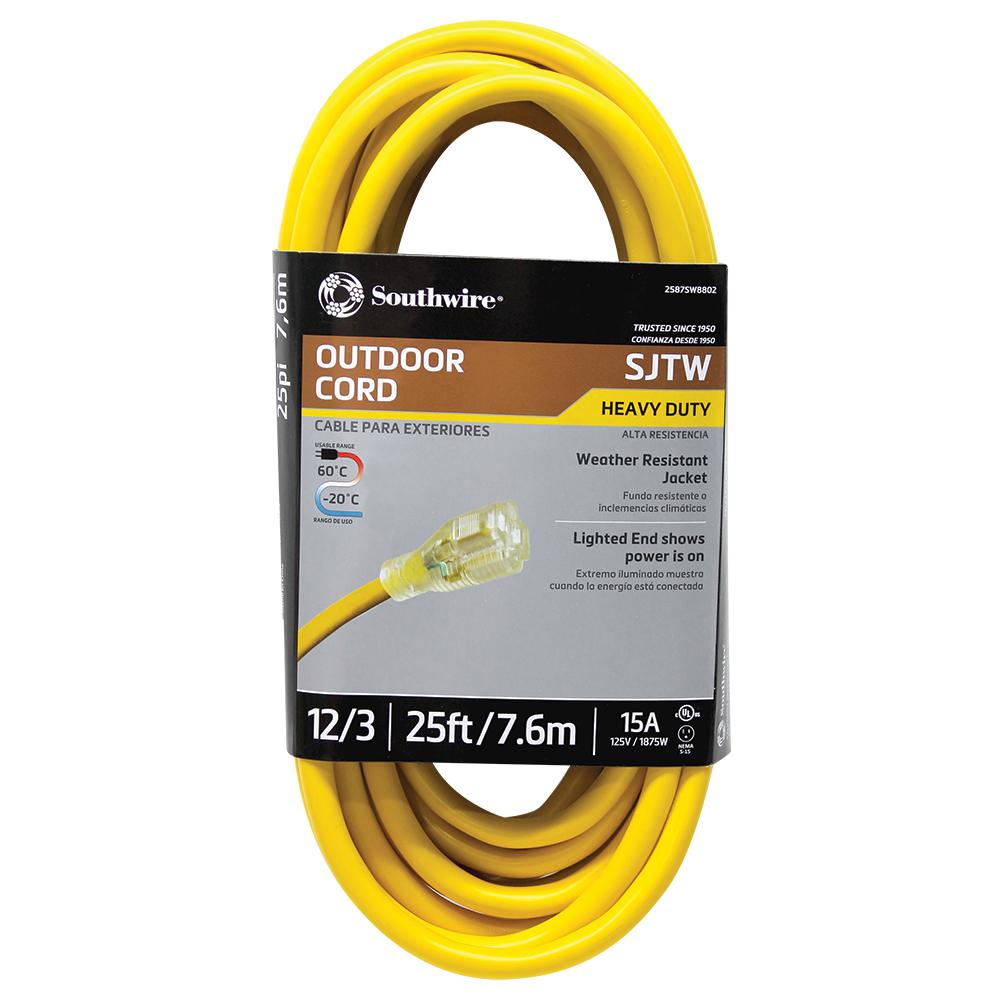

Southwire® 2587SW8802 Type SJTW Extension Cord, 15 A at 125 VAC, 25 ft L Cord, 3 Conductors
Brand: Southwire®
Item ID: 1074
MPN: 2587SW8802
Login for Price
Features

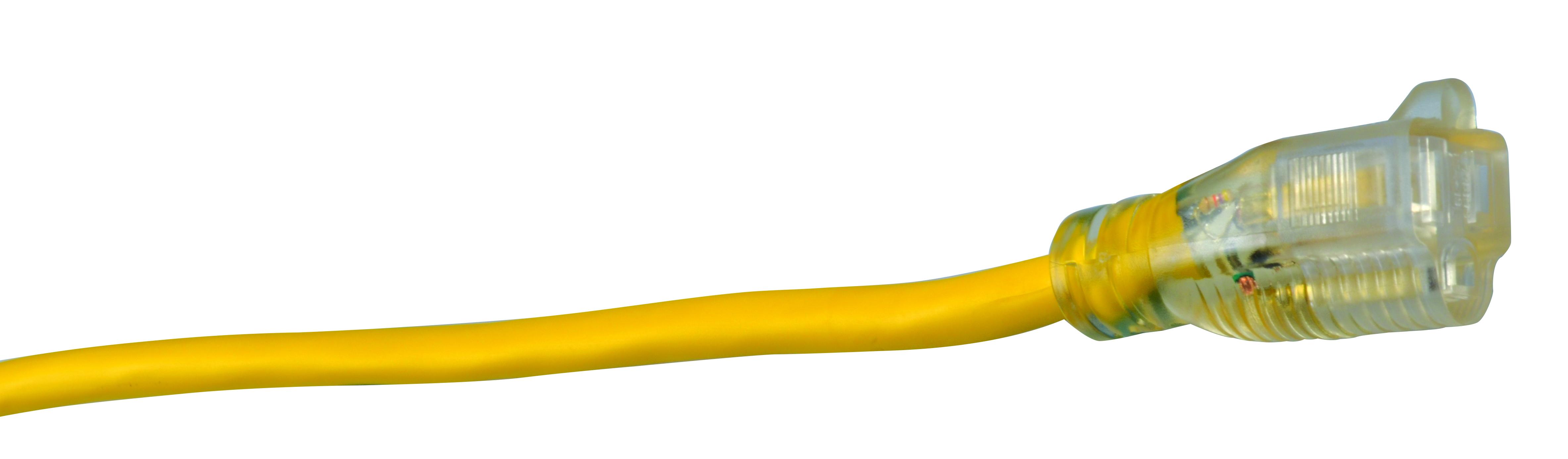

- Extension cord with power indicator light in the cord connector
- Indent print cable legend type
- Hard usage per the national electrical code cord rating

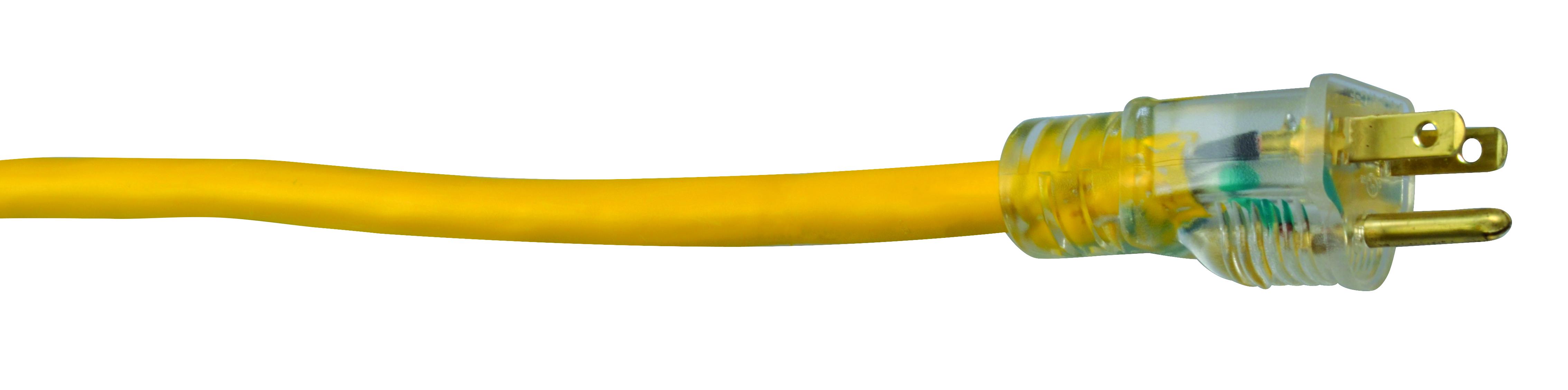

- Clear PVC, with neon power indicator lamp in the connector plug and connector material
- 65/30 strands
- 3.2 lb weight
- PVC core
- 5 +/-1 ma
Description
Southwire® Extension Cord, Type SJTW, 15 A at 125 VAC, 25 ft Cord, 3 Conductors, 12 AWG Conductor, Copper, 0.595 in Outside Dia, PVC Insulation, PVC, NEMA 5-15R Receptacle, NEMA 5-15P Plug, -40 to 60 deg C, Yellow
Specifications
Color |
Yellow |
Conductor Material |
Copper |
Conductor Size |
12 AWG |
Cord Length |
25 ft |
Electrical Ratings |
15 A at 125 VAC |
Insulation Material |
PVC |
Jacket Material |
PVC |
Number of Conductors |
3 |
Outside Diameter |
0.595 in |
Plug Type |
NEMA 5-15P |
Receptacle Type |
NEMA 5-15R |
Temperature Rating |
-40 to 60 deg C |
Type |
Type SJTW |
Standard Approval |
RoHS Compliant|CSA Certified|cUL Listed|UL 817 |
Application |
Outdoor Applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Southwire_3488SW0002_Specification_Sheet.pdf
