Southwire - Topaz 3

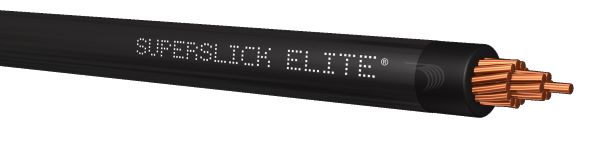

3 THHN-2 STRANDED BLACK
Brand: Southwire - Topaz
Item ID: 67042
MPN: 3
Login for Price
Features
- Color code polyvinyl chloride (PVC), heat and moisture resistant, flame retardant compound
- Stranded, uncoated bare copper per ASTM-B3, ASTM-B8 and ASTM-B787
- A tough, polyamide, nylon outer covering per UL-83 and UL-1063
Description
Southwire - Topaz Conduit Bushing, Anti-Short, 10/4, 8/2, 8/3, 1/1 AWG AC Cable Size, #3, Plastic, 0.94 in Dia x 0.68 in H
Specifications
AC Cable Size |
10/4 AWG, 8/2 AWG, 8/3 AWG, 1/1 AWG |
Amperage Rating |
115 A |
Conductor Size |
3 AWG |
Conductor Type |
Stranded Copper |
Dimensions |
0.94 in Dia x 0.68 in H |
Insulation Material |
PVC |
Jacket Color |
Black |
Jacket Material |
Nylon |
Length |
1000 ft |
Material |
Plastic |
Number of Conductors |
1 |
Outside Diameter |
0.346 in |
Packaging Type |
Reel |
Strands |
19 |
Temperature Rating |
90 deg C |
Trade Size |
#3 |
Type |
Anti-Short |
Voltage Rating |
600 VAC |
Standard Approval |
UL 514B|UL File No. E170258|US Federal Specification A-A-50552|NEMA/ANSI FB-1 |
Application |
Commercial Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_Topaz_473S_Brochure.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Encore_Wire_794280922050_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Encore_Wire_794280922050_RoHS.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6e31ddb6b32d6660f382a7da56462fa35185f02700e3770856599c5aec8e75ec.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6e31ddb6b32d6660f382a7da56462fa35185f02700e3770856599c5aec8e75ec.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e78b7f7200a80a5abbda7e76ccb5a95512e87385b9662e6829c3ebfbb134d2db.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e78b7f7200a80a5abbda7e76ccb5a95512e87385b9662e6829c3ebfbb134d2db.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f0e9e75bcd9a676b2e339042cf1b9cfc06ba71a49283182bac4d7b067b570ed.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f0e9e75bcd9a676b2e339042cf1b9cfc06ba71a49283182bac4d7b067b570ed.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_Topaz_3_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_Topaz_471S_Warranty.pdf
