Southwire - Topaz 30

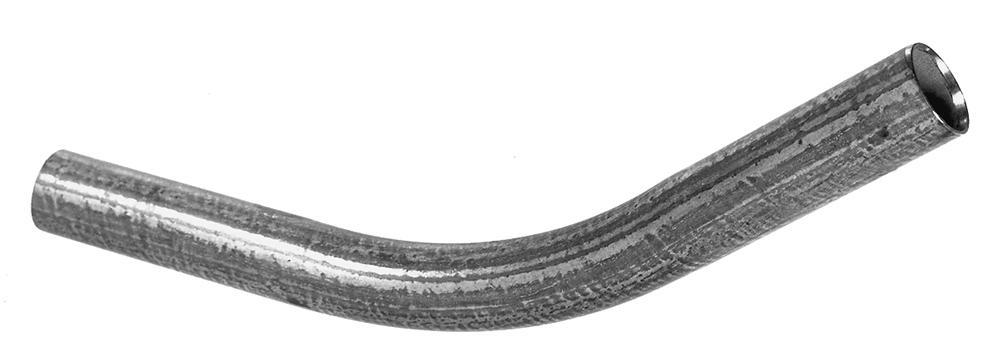

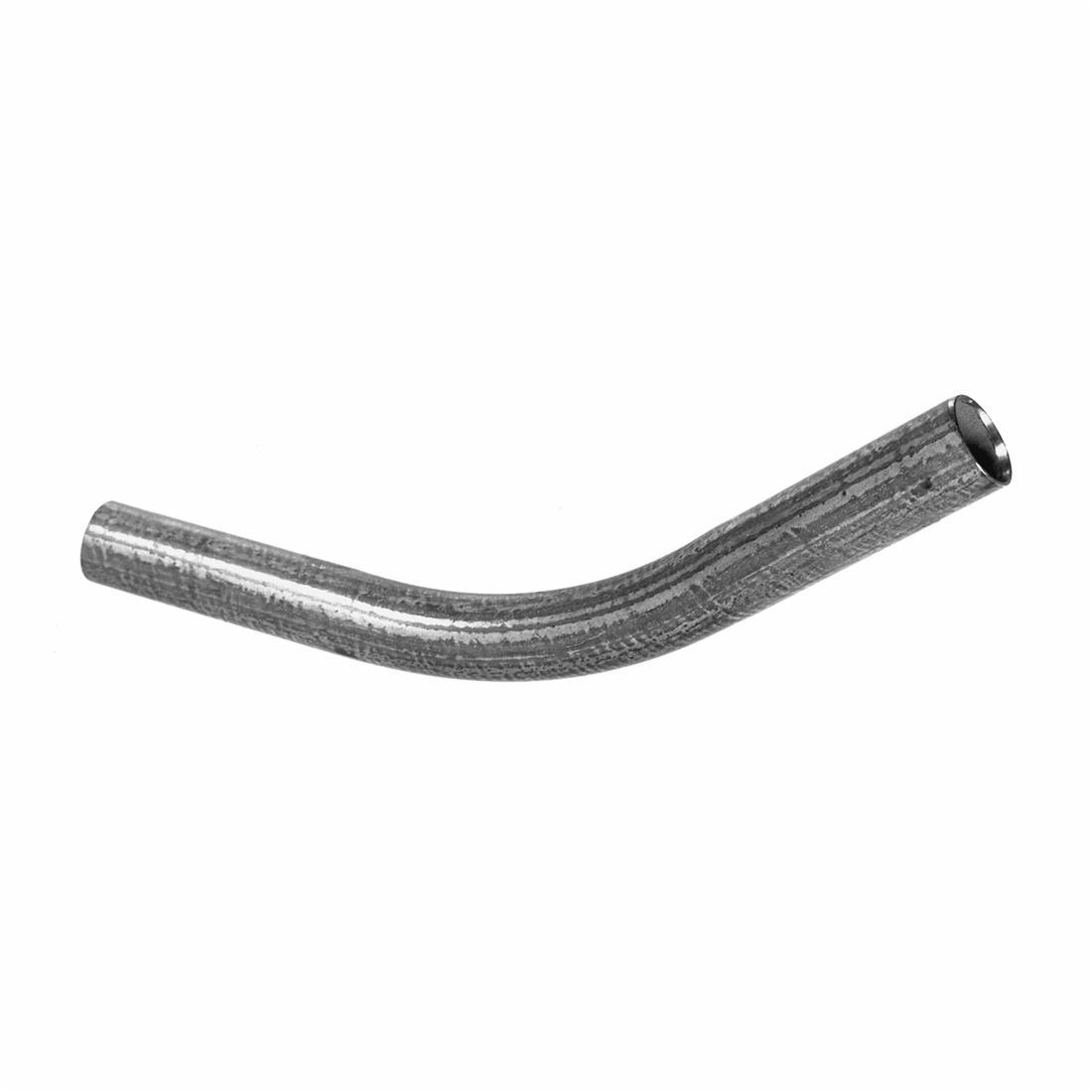

Southwire - Topaz 30 Conduit Elbow, 4 in Trade, 45 deg, Steel, Galvanized
Brand: Southwire - Topaz
Item ID: 383
MPN: 30
Login for Price
Features
- Low conductivity and high corrosion resistance
- Smooth defect free interior and exterior
Description
Southwire - Topaz EMT 45 deg elbow is precision manufactured from EMT conduit that conforms to the latest specifications and standards to deliver optimum safety and performance in all applications. Fabricated from galvanized steel for low conductivity and high corrosion resistance, all surfaces, both interior and exterior are defect free to ensure a secure connection to EMT conduit and to preserve integrity and longevity.
Southwire - Topaz Conduit Elbow, 4 in Trade, 45 deg Angle, 16 in Radius, For Use With: EMT Conduit, Steel, Galvanized, 6-15/16 in L Leg Dimensions
Specifications
Angle |
45 deg |
Dimensions |
6-15/16 in L Leg |
Finish |
Galvanized |
Material |
Steel |
Radius |
16 in |
Suitable For Use With |
EMT Conduit |
Trade Size |
4 in |
Standard Approval |
UL 514B|UL E197604|UL 797|cULus E197604 Listed|CSA Certified|US Federal Spec Number A-A-50552|NEMA/ANSI FB-1|Military Specification:W-F-406D|W-F-406E|W-F-408D|W-S-610D|ANSI C80.3|Federal Spec WW-C-563 |
Application |
For a secure connection to EMT conduit, bend enables directional changes in conduit |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_0_Catalog.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_903bd9166be9f597e437edb28dd01056dffafade15b6501a6457e4eeb6037649.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_0_Warranty.pdf
