Southwire® 4189SW8802

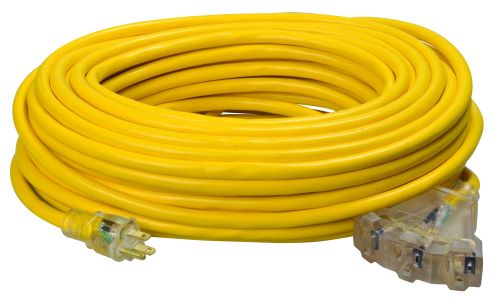

Southwire® Tri-Source® 4189SW8802 Type SJTW Extension Cord With Lighted End, 125 VAC, (3) 12 AWG Bare Copper Conductor, 100 ft L
Brand: Southwire®
Item ID: 147832
MPN: 4189SW8802
Login for Price
Features
- Hard usage per the national electrical Code® rating
- NEMA 5-15R x 3 cord connector configuration
- Clear PVC plug and connector, with a neon power indicator lamp in the cord connector block
- Multi-outlet, three-way power block, multi-outlet
Description
Innovative block provides additional outlets for power distribution. Vinyl jacket resists moisture, abrasion and prolonged exposure to sunlight. Reinforced blades help prevent accidental bending or breaking and a heavy duty strain relief protects electrical connections resulting in longer cord life.
Southwire® Tri-Source® Extension Cord, Type SJTW, 125 VAC, 15 A, 3 Conductors, Bare Copper Conductor, 12 AWG Conductor, 0.595 in OD, 100 ft Length, 65/30 Strands, PVC Insulation, PVC Jacket, Yellow Jacket, -40 to 60 deg C
Specifications
Amperage Rating |
15 A |
Conductor Size |
12 AWG |
Conductor Type |
Bare Copper |
Insulation Material |
PVC |
Jacket Color |
Yellow |
Jacket Material |
PVC |
Length |
100 ft |
Number of Conductors |
3 |
Outside Diameter |
0.595 in |
Strands |
65/30 |
Temperature Rating |
-40 to 60 deg C |
Type |
Type SJTW |
Voltage Rating |
125 VAC |
Standard Approval |
RoHS Compliant|UL Listed|cUL Listed|ETL Listed|OSHA Compliant|UL 817 |
Application |
General Indoor and Outdoor Applications |
