Southwire - Topaz 510BX

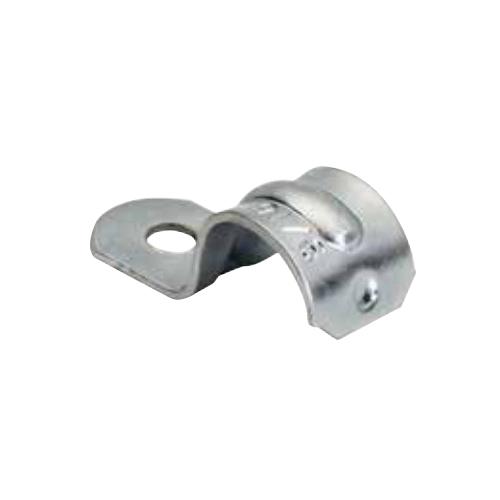

Southwire - Topaz 510BX 1-Hole Snap-On Conduit Strap, 14/2 to 10/3, For Use With EMT Conduit, Steel, Zinc Plated
Brand: Southwire - Topaz
Item ID: 9100
MPN: 510BX
Login for Price
Features
- 14/2 to 10/3 AWG cable size
- Inverted rib provides extra strength
Description
Compact, strong and dependable, Topaz's corrosion resistant one hole BX Straps help support and secure service entrance building cables. Crafted from rugged steel with zinc plated finish and inverted rib for additional strength.
Southwire - Topaz Conduit Strap, 1-Hole Snap-On, 14/2 to 10/3, For Use With: EMT Conduit, Steel, Zinc Plated, 1.25 in W x 0.48 in D
Specifications
Dimensions |
1.25 in W x 0.48 in D |
Finish |
Zinc Plated |
Material |
Steel |
Size |
14/2 to 10/3 |
Suitable For Use With |
EMT Conduit |
Type |
1-Hole Snap-On |
Standard Approval |
UL E18716, 514B|CSA Certified|US Federal Specification No. A-A-50552|NEMA/ANSI FB-1|Military Specification W-F-406D, W-F-406E, W-F-408D, W-S-610D |
Application |
For BX cable |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_510BX_Data_Sheet.pdf
