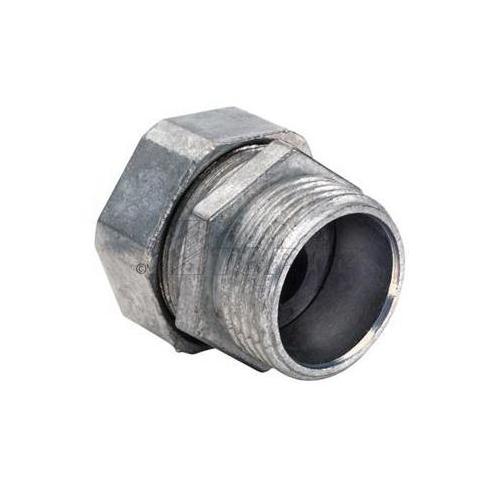

Southwire - Topaz 876A
Southwire - Topaz 876A Compression Watertight Connector With Rubber Grommet, 2 in Trade, 3 Conductors, 0.75 x 1.195 in Cable Openings, Die Cast Zinc
Brand: Southwire - Topaz
Item ID: 9701
MPN: 876A
Login for Price
Description
Make the secure connection with the Southwire - Topaz line of high performing, easy to install compression type watertight connectors. Featuring high quality, corrosion-resistant zinc die cast construction with rubber grommet. For wire sizes (3) 8 AWG through (3) 4/0 AWG. UL listed and built to last; always in stock and ready for fast delivery.
Southwire - Topaz Watertight Connector, Compression, 2 in Trade, 3 Conductors, Cable Openings: 0.75 x 1.195 in, SE/SEU Cable, Thread Connection, Die Cast Zinc, 2-1/4 in H Dimensions
Specifications
Cable Openings |
0.75 x 1.195 in |
Cable Type |
SE/SEU |
Connection Type |
Thread |
Dimensions |
2-1/4 in H |
Material |
Die Cast Zinc |
Number of Conductors |
3 |
Trade Size |
2 in |
Type |
Compression |
Standard Approval |
CSA Certified|UL 514B|UL File No. E148711|US Federal Specification A-A-50552|NEMA/ANSI FB-1|Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D |
Application |
To secure SE/SEU cable to metal enclosures and SE/SEU flat style cable two insulating conductors |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_873A_Catalog.pdf
