Southwire® 9016SW8809

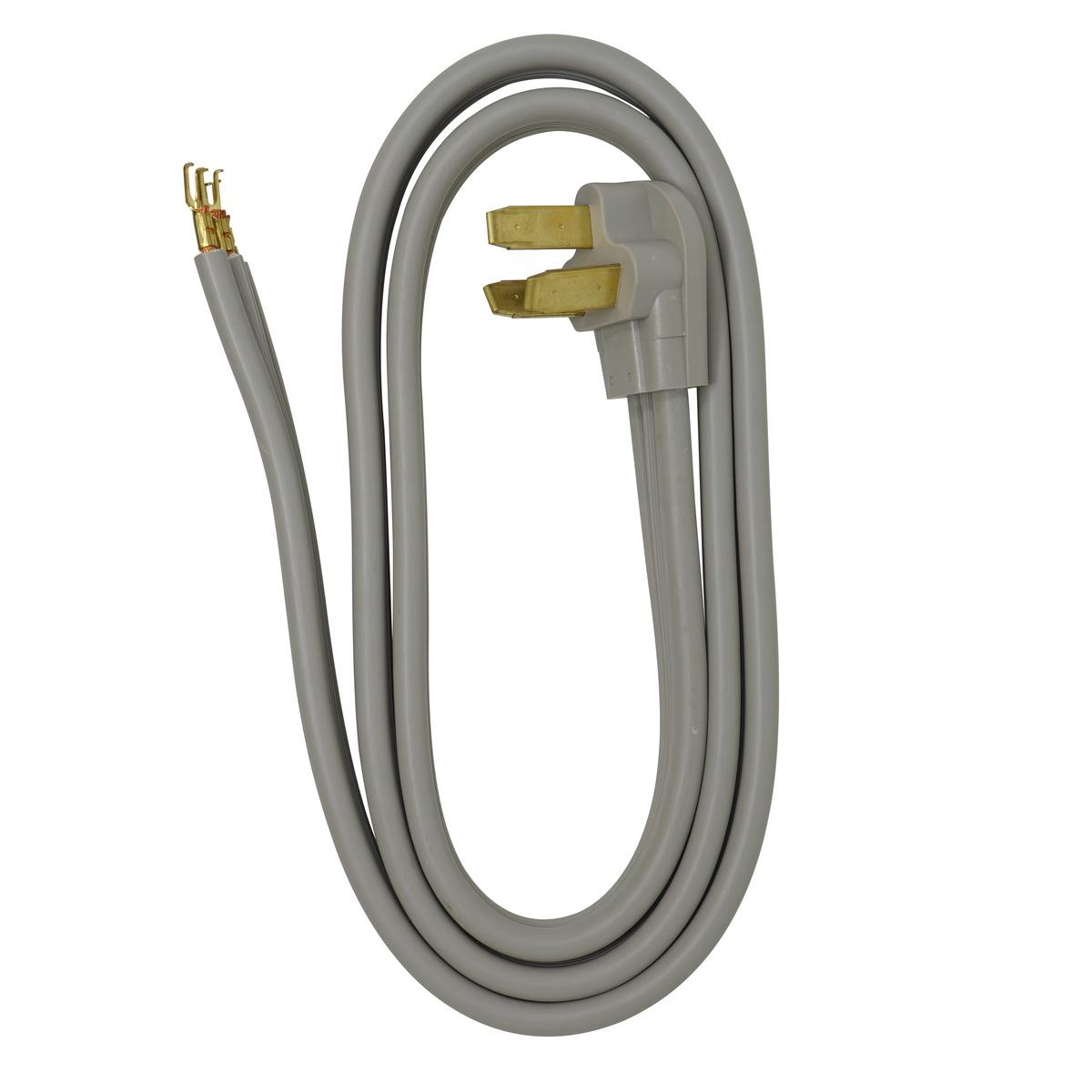

Southwire® 9016SW8809 Type SRDT Flat Range Cord Set, 125/250 VAC, NEMA 10-50P End Connection, 6 ft L Cord, 6 AWG Conductor, PVC
Brand: Southwire®
Item ID: 292682
MPN: 9016SW8809
Login for Price
Features

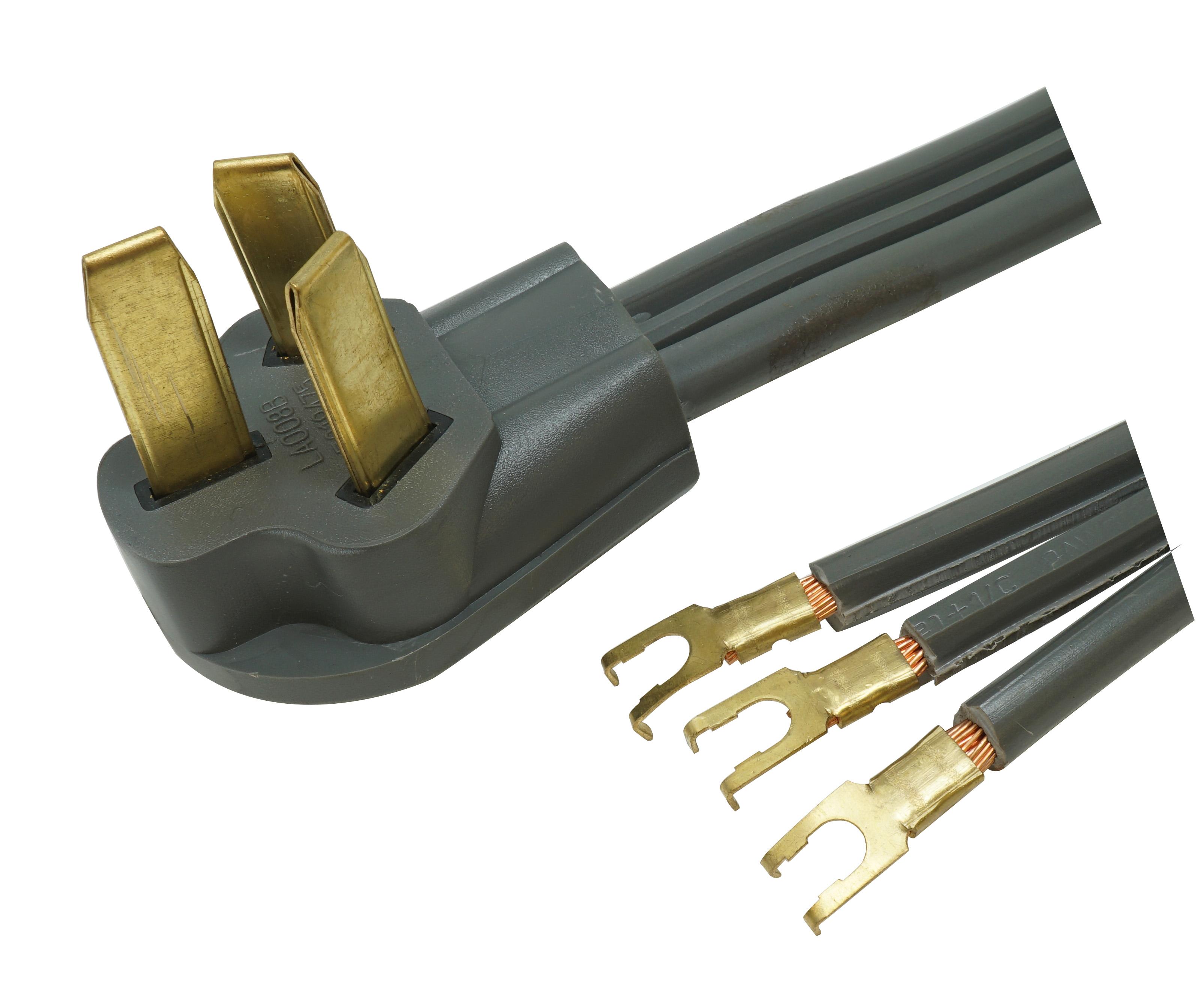

- 6/2 and 8/1 SRDT, 125/250V 50A range power supply cord kit with flanged spade terminals and metal strain relief
- PVC, integral insulation and jacket
- (2) 6 AWG bare copper
- Center conductor (8 AWG neutral) is ribbed conductor identification
- Metal, included but not attached strain relief
- PVC, gray plug material
- 1/4 in flanged spade terminal
- 90 deg inlet male plug
- 2.48 lb weight
- PVC core
- 5 +/-1 ma
- -20 to 60 deg C resistance
- Copper conductor
- PVC insulation and jacket
- 2 copper conductors
- 1.03 x 0.4 in
Description

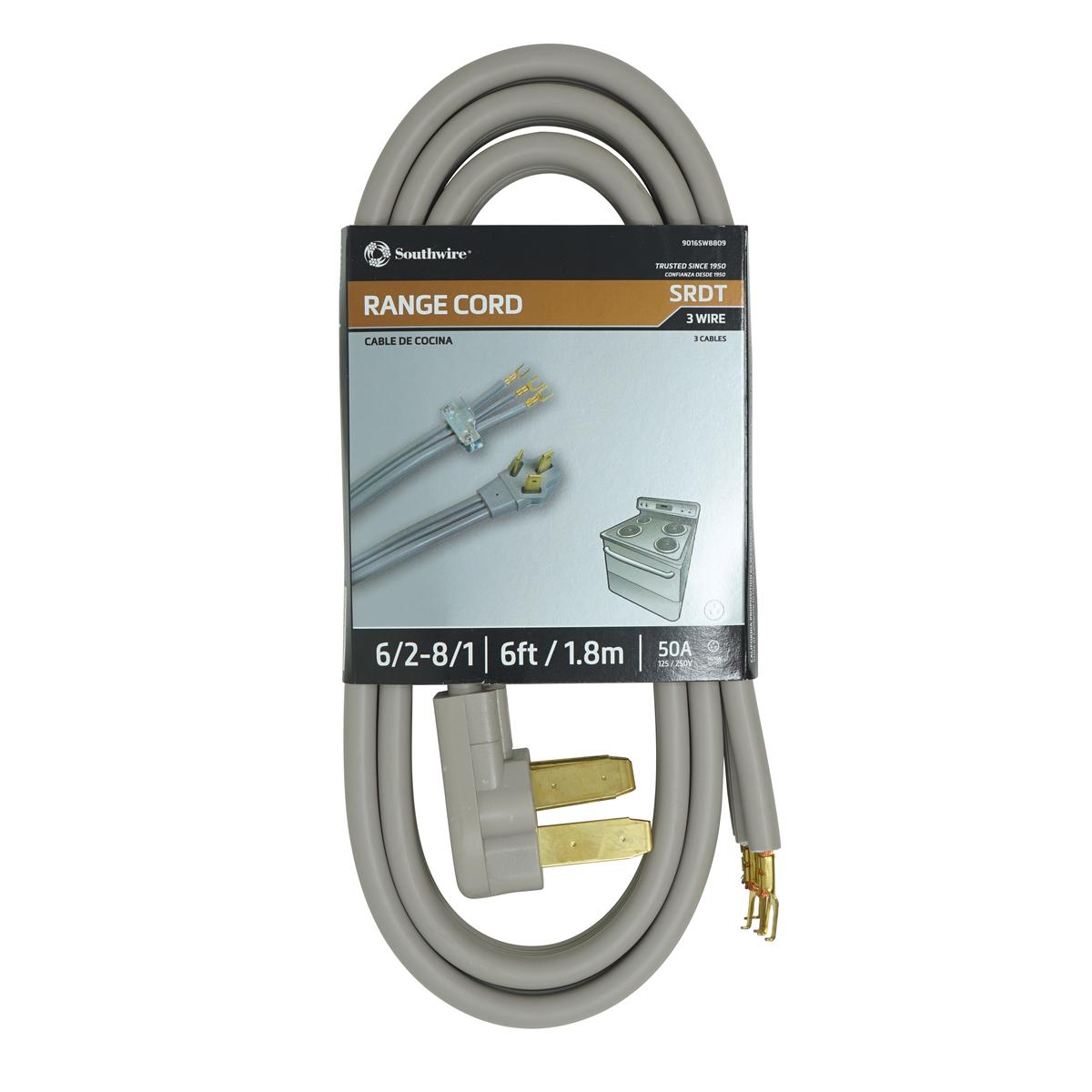

Southwire® Range Cord Set, Type SRDT Flat, 125/250 VAC, 50 A, NEMA 10-50P, Bare Copper Conductor, 6 AWG Conductor, 6 ft Cord, NEMA 10-50P Plug, PVC, Gray
Specifications
Amperage Rating |
50 A |
Color |
Gray |
Conductor Size |
6 AWG |
Conductor Type |
Bare Copper |
Cord Length |
6 ft |
End Connection Type |
NEMA 10-50P |
Material |
PVC |
Plug Type |
NEMA 10-50P |
Type |
Type SRDT Flat |
Voltage Rating |
125/250 VAC |
Standard Approval |
RoHS Compliant|UL 817|PROP65: This product contains material that, the State of California has determined, may cause cancer or reproductive harm. www.P65PROP65s.ca.gov/product |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Southwire_3488SW0002_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Southwire_3488SW0002_Specification_Sheet.pdf
