Southwire - Topaz AMC1

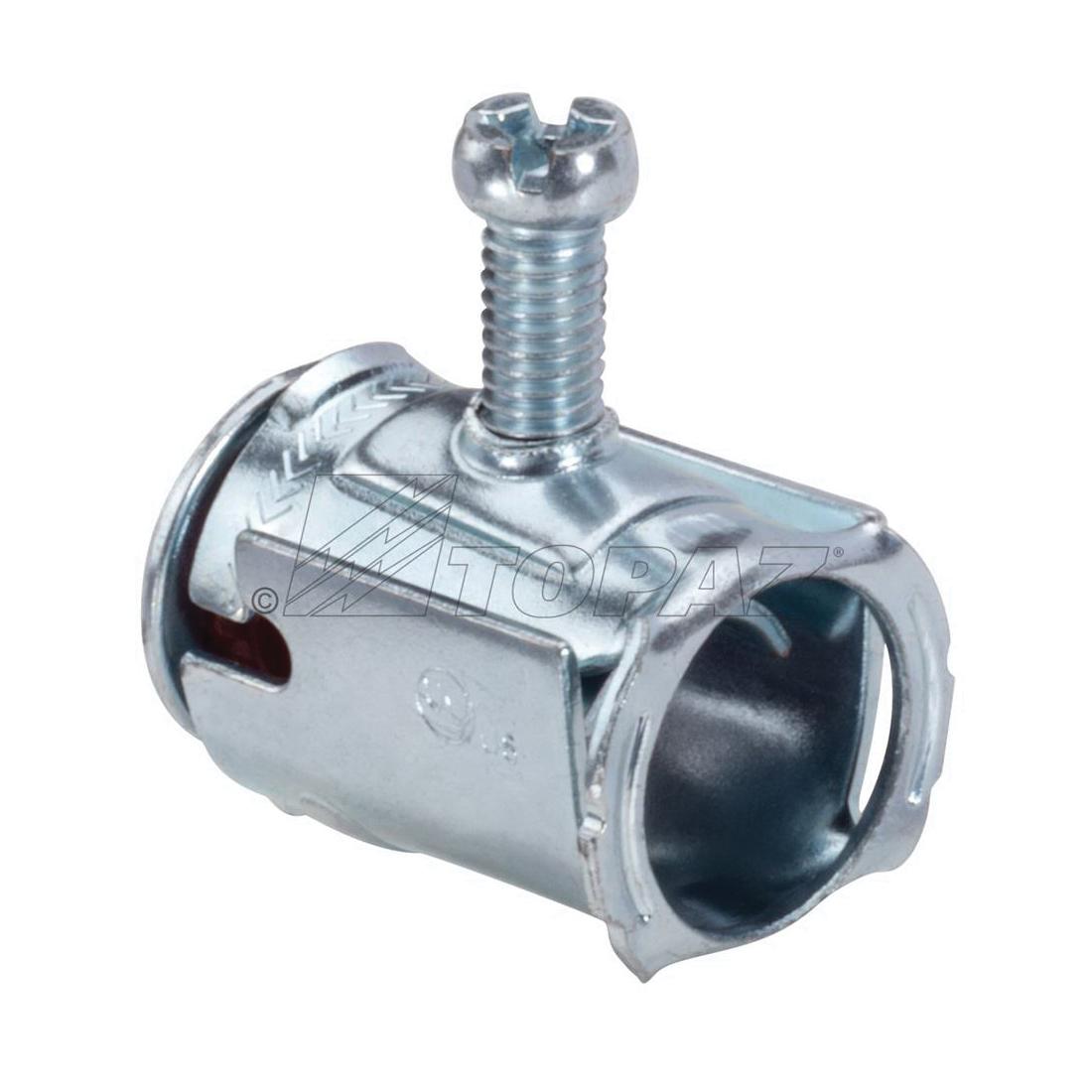

Southwire - Topaz AMC1 Duplex Connector With Insulated Throat, 1/2 in Trade, 2 Conductors, Steel, Zinc Plated
Brand: Southwire - Topaz
Item ID: 195247
MPN: AMC1
Login for Price
Features
- No locknut required
- Single unit or duplex construction with captive clamp
Description
Make a secure connection to electrical junction boxes or enclosures with Southwire - Topaz snap-in set screw type cable connectors. Insulated throat design offers superior protection, snap in, set screw assembly enables quick and easy installation, no locknuts or other components required. Fabricated from rugged steel with a zinc plated finish to ensure longevity.
Southwire - Topaz Duplex Connector, 1/2 in Trade, 2 Conductors, BX-Flex/NM/MC Cable, Snap-In x Set Screw Connection, Steel, Zinc Plated, 1.39 in L x 0.844 in H Dimensions
Specifications
Cable Type |
BX-Flex/NM/MC |
Connection Type |
Snap-In x Set Screw |
Dimensions |
1.39 in L x 0.844 in H |
Finish |
Zinc Plated |
Material |
Steel |
Number of Conductors |
2 |
Trade Size |
1/2 in |
Standard Approval |
CSA Certified|UL 514B File No. E18176|US Federal Specification A-A-50552|NEMA/ANSI FB-1|Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D |
Application |
Use to join sheathed cable into outlet boxes or enclosures |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_130CSL_Catalog.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_AMC1_Specification_Sheet.pdf
