Southwire - Topaz C2M

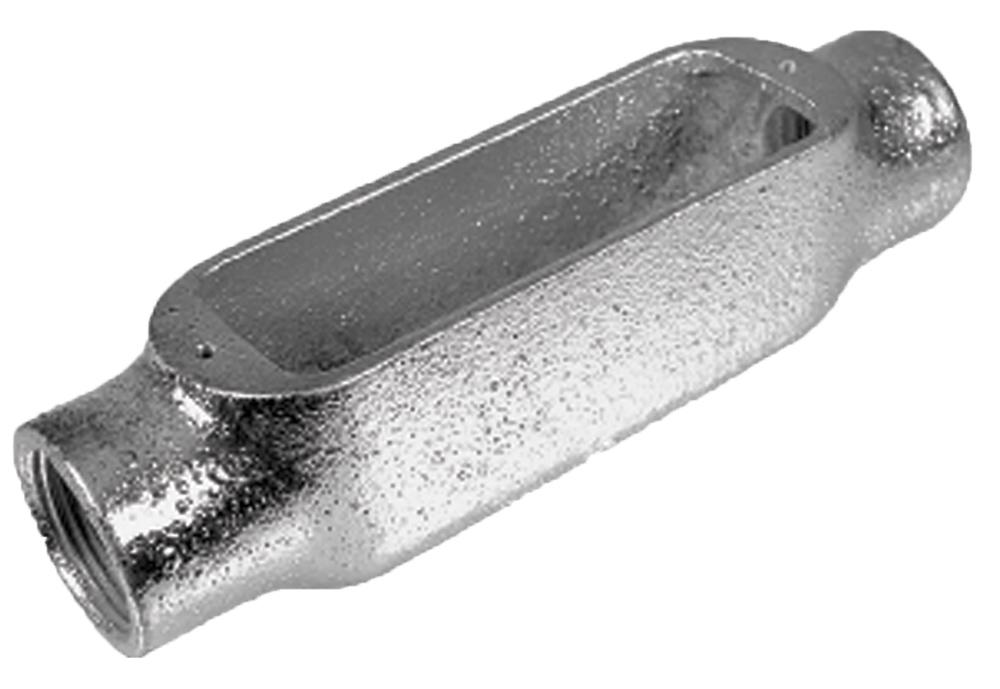

Southwire - Topaz C2M Type-C Conduit Body, 3/4 in Hub, 7.5 cu-in, Malleable Iron, Zinc Plated
Brand: Southwire - Topaz
Item ID: 488163
MPN: C2M
Login for Price
Features
- NPT tapered hubs
Description
Topaz's Malleable Iron Rigid Threaded type C Conduit Body is constructed to offer unmatched high tensile strength and ductility. Strong and resilient malleable iron fabrication is resistant to damage from corrosion and impact. C type conduit bodies are engineered with a straight through configuration and enable the easiest access for pulling and splicing. Roomy interior allows for maximum wiring space, smooth, rounded integral bushings in hubs offers protection for conductor insulation. Available in 1/2” to 4” sizes; UL listed.
Southwire - Topaz Conduit Body, Type-C, 3/4 in Hub, 2 Hubs, 7.5 cu-in, FNPT, Wall Mount, Malleable Iron, Zinc Plated, 6 in L x 1.48 in W x 1.62 in H
Specifications
Capacity |
7.5 cu-in |
Connection Type |
FNPT |
Dimensions |
6 in L x 1.48 in W x 1.62 in H |
Finish |
Zinc Plated |
Hub Size |
3/4 in |
Material |
Malleable Iron |
Mounting Type |
Wall |
Number of Hubs |
2 |
Type |
Type-C |
Standard Approval |
UL 514B|UL File No. E195124|cULus File No. E195124|CSA Certified|Federal Specification No. A-A-50553|NEMA/ANSI FB-1|Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D |
Application |
For use with rigid conduit, to provide access to conductors for maintece and future system changes, connects conduit section, suitable for use in concrete |
