Southwire - Topaz C6SSCG

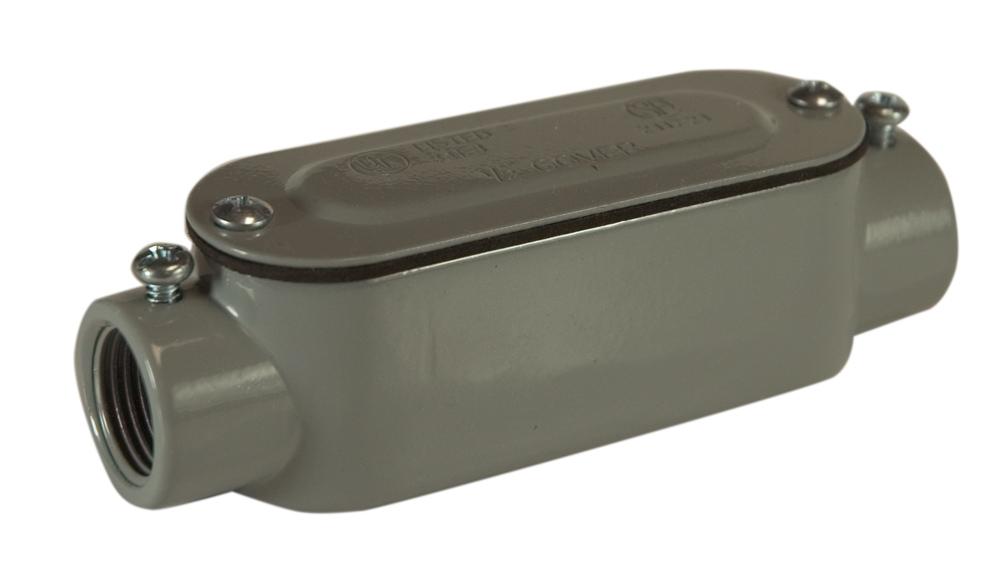

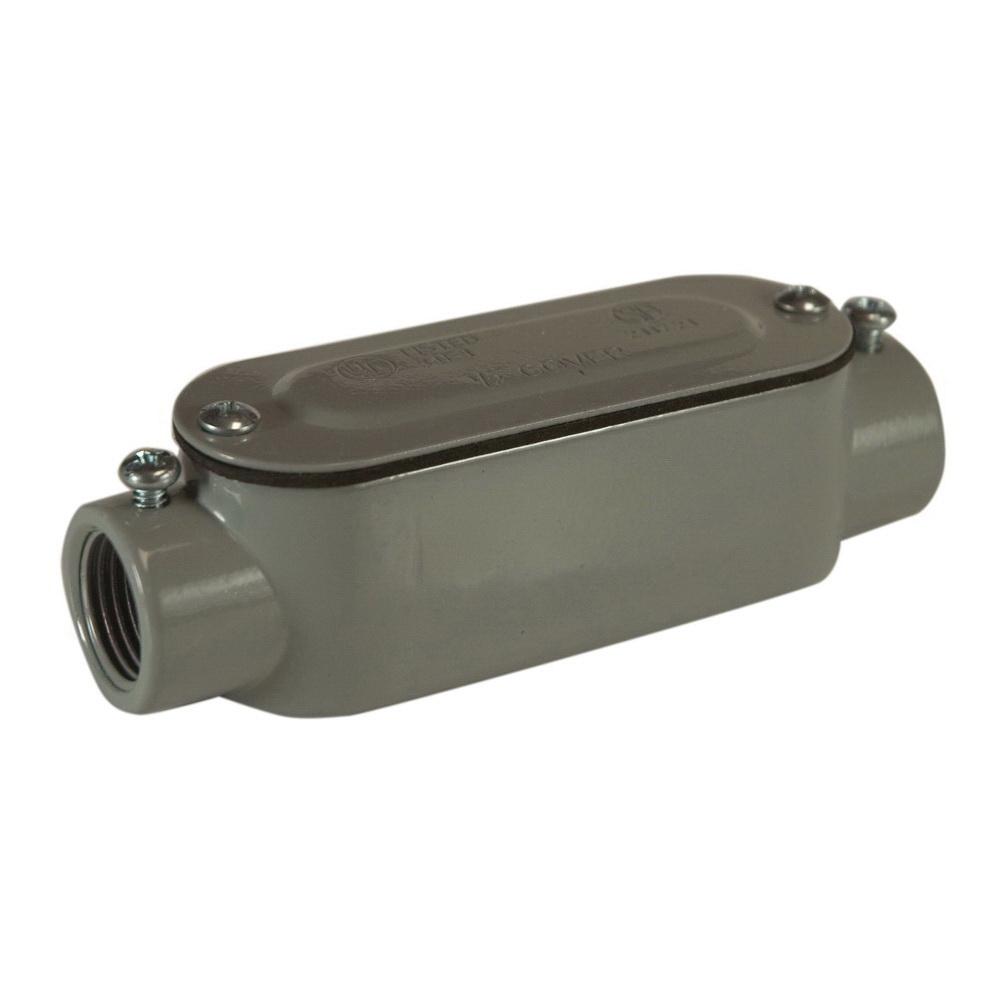

Southwire - Topaz C6SSCG EMT and Rigid Combination Type C Conduit Body With Cover and Gasket, 2 in Hub, Aluminum, Powder Coated
Brand: Southwire - Topaz
Item ID: 534631
MPN: C6SSCG
Login for Price
Features
- NPT tapered hubs
Description
Topaz's EMT and Rigid combo C type Conduit Body, with Cover and Gasket, is manufactured from naturally corrosion resistant aluminum. C type conduit bodies are engineered with a straight through configuration and enable the easiest access for pulling and splicing. Domed cover provides additional space for wiring; NEMA FB 1 rated for wet locations, use with threaded rigid metal conduit only.Smooth, rounded integral bushings in hubs offers protection for conductor insulation. Excellent ground continuity and corrosion resistance; lightweight aluminum construction; UL listed; available in sizes from 1/2” to 2”.
Southwire - Topaz Conduit Body, EMT and Rigid Combination Type C, 2 in Hub, 2 Hubs, FNPT, Wall Mount, Aluminum, Powder Coated, 11.5 in L x 3.05 in W x 3.29 in H
Specifications
Connection Type |
FNPT |
Dimensions |
11.5 in L x 3.05 in W x 3.29 in H |
Finish |
Powder Coated |
Hub Size |
2 in |
Material |
Aluminum |
Mounting Type |
Wall |
Number of Hubs |
2 |
Type |
EMT and Rigid Combination Type C |
Standard Approval |
CSA Certified|cULus File No. E170258|Federal Specification No. A-A-50552|Military Specification No. W-F-406D/408-D/406E/W-S-610D|NEMA/ANSI FB-1|UL File No. E170258/514B |
Application |
For use with rigid/EMT/IMC conduit, to provide access to conductors for pulling, splicing and maintece, suitable for use in concrete and wet locations |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_1181_Catalog_1.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_1181_Catalog_1.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_C1SSCG_Datasheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_C1SSCG_Datasheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_1181_Warranty.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_1181_Warranty.pdf
