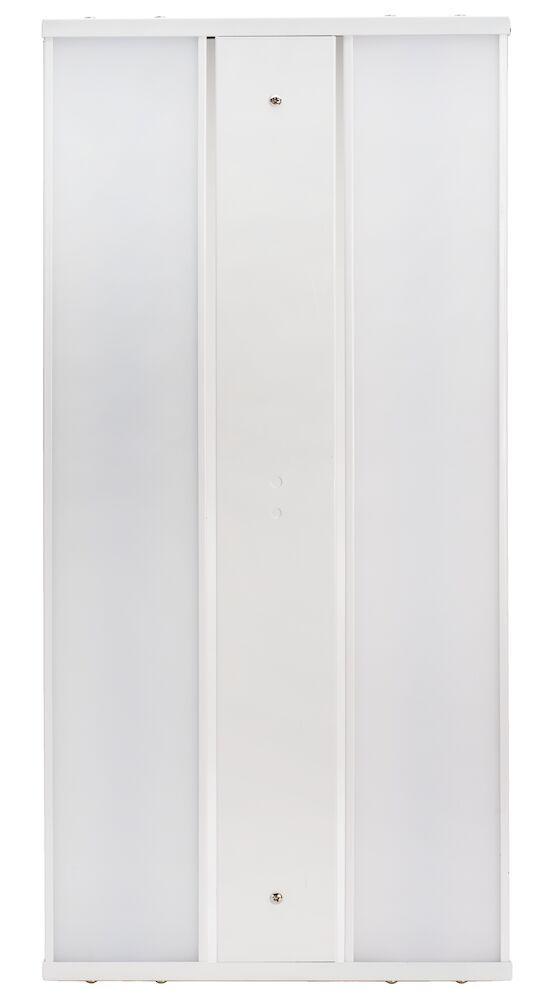

Southwire® F-LHB220W/50K/F-96
Southwire® F-LHB220W/50K/F-96 High Bay LED Fixture, HID Lamp, 120 to 277 V
Brand: Southwire®
Item ID: 485720
MPN: F-LHB220W/50K/F-96
Login for Price
Description
Topaz 220W, 5000K, LED High Bay Linear Luminaires are a sturdy solution for high bay applications in commercial, industrial, warehouse and manufacturing settings. The high-efficiency lens offers wide uniform beam distribution. Easily installed with V-hook, chain or pendant, these 220W luminaires have a functional life of 54,000 hours and are a superior energy and cost saving alternative for replacing fluorescent or 660W equivalent HID high bay fixtures.
Southwire®, F-LHB220W/50K/F-96, LED Fixture, High Bay, 120 to 277 V, 2.2, 0.8 A, LED Lighting Technology, HID Lamp, 220 W Lamp, 143 Lumens/W Light Output, 54000 hr Average Life, 5000 K Color Temperature, >80 CRI, 0 to 10 V Dimming Ballast, Frosted Acrylic Lens, 30190 Lumens, IP40 Enclosure, Chain/Hook Mounting, Steel Housing Material, 1.9 in H x 14.2 in W x 24.8 in L Dimensions
Specifications
Amperage Rating |
2.2/0.8 A |
Average Life |
54000 hr |
Ballast Type |
0 to 10 V Dimming |
Color Rendering Index (CRI) |
>80 |
Color Temperature |
5000 K |
Dimensions |
1.9 in H x 14.2 in W x 24.8 in L |
Enclosure Type |
IP40 |
Housing Material |
Steel |
Lamp Type |
HID |
Lamp Wattage |
220 W |
Lens Type |
Frosted Acrylic |
Light Output |
143 Lumens/W |
Lighting Technology |
LED |
Lumens |
30190 Lumens |
Mounting Type |
Chain/Hook |
Type |
High Bay |
Voltage Rating |
120 to 277 V |
Application |
Solution for High bay applications in commercial, Industrial, Warehouse and Manufacturing settings |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Southwire_Topaz_F_LHB220W_50K_F_96_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Southwire_Topaz_F_LHB220W_50K_F_96_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Southwire_Topaz_F_LHB220W_50K_F_96_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Southwire_Topaz_F_LHB220W_50K_F_96_Specification_Sheet.pdf
