Southwire - Topaz LB10CG

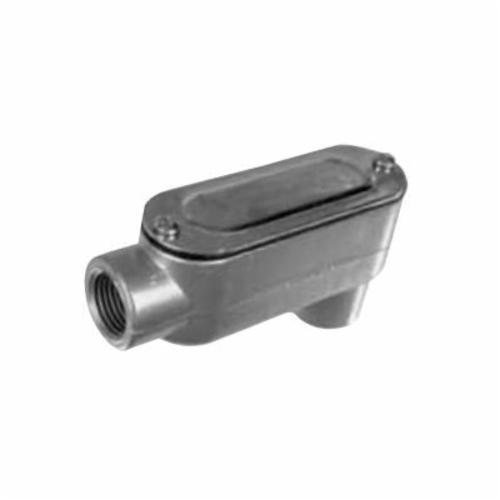

Southwire - Topaz LB10CG Type LB 3-Conductor Conduit Body with Cover and Gasket, 4 in Hub, Die Cast Aluminum
Brand: Southwire - Topaz
Item ID: 440065
MPN: LB10CG
Login for Price
Features
- Tapered threaded hubs (NPT)
Description
As an electrical conduit fittings manufacturer, Southwire - Topaz strives to exceed the expectations of our customers. with our expansive inventory of products, including Rigid, EMT connectors, EMT fittings, PVC and flexible conduit fittings, Southwire - Topaz can deliver the fittings and electrical products your customers need when they need them. our electrical fittings are always in stock and ready for fast delivery. our electrical conduit fittings are guaranteed for life to help increase your customers confidence in purchasing products from you.
Southwire - Topaz Conduit Body, Type LB 3-Conductor, 4 in Hub, 2 Hubs, NEMA FB-1 Enclosure, Tapered FNPT, Wall Mount, Die Cast Aluminum, 15.5 in L x 5.5 in W x 6.922 in H
Specifications
Connection Type |
Tapered FNPT |
Dimensions |
15.5 in L x 5.5 in W x 6.922 in H |
Enclosure |
NEMA FB-1 |
Hub Size |
4 in |
Material |
Die Cast Aluminum |
Mounting Type |
Wall |
Number of Hubs |
2 |
Type |
Type LB 3-Conductor |
Standard Approval |
UL 514B File No. E170258|CSA Certified|Federal Specification A-A-50563|ANSI FB-1|Military Specification W-F-406D, W-F-406E, W-F-408D, W-S-610D |
Application |
For providing access to conductors for pulling, slicing and maintece and concrete and wet locations |
