Southwire - Topaz LB2SSCG

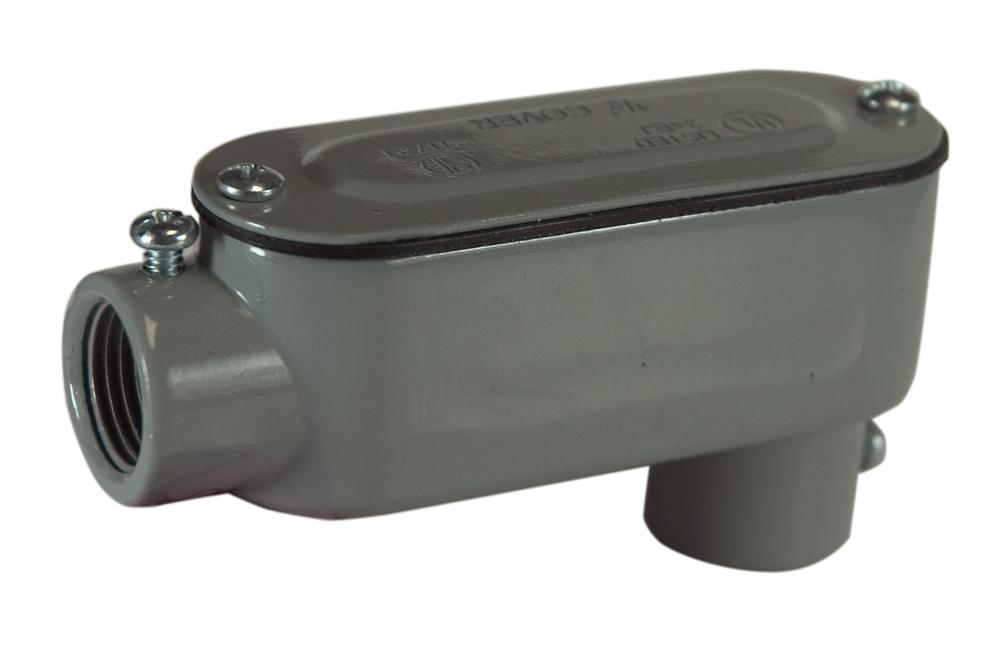

Southwire - Topaz LB2SSCG EMT and Rigid Combination Type LB Conduit Body With Cover and Gasket, 3/4 in Hub, Aluminum, Powder Coated
Brand: Southwire - Topaz
Item ID: 479910
MPN: LB2SSCG
Login for Price
Features
- NPT tapered threaded hubs
- NEMA FB-1 rated for wet locations use with threaded rigid metal conduit only
Description
Southwire - Topaz EMT and rigid combo LB type conduit body, with cover and gasket features naturally corrosion resistant aluminum construction. LB type conduit bodies have a hub on one end and one on the back side, provide easy access for splicing and can correct and change direction of conduit runs. Domed cover allows for additional wiring space, watertight gasket ensures weatherproof installations. Roomy interior allows for maximum wiring space, smooth, rounded integral bushings in hubs offers protection for conductor insulation. Excellent ground continuity and corrosion resistance, lightweight aluminum construction.
Southwire - Topaz Conduit Body, EMT and Rigid Combination Type LB, 3/4 in Hub, 2 Hubs, FNPT, Wall Mount, Aluminum, Powder Coated, 5.31 in L x 1.48 in W x 2.37 in H
Specifications
Connection Type |
FNPT |
Dimensions |
5.31 in L x 1.48 in W x 2.37 in H |
Finish |
Powder Coated |
Hub Size |
3/4 in |
Material |
Aluminum |
Mounting Type |
Wall |
Number of Hubs |
2 |
Type |
EMT and Rigid Combination Type LB |
Standard Approval |
CSA Certified|Federal Specification No. A-A-50552|Military Specification No. W-F-406D/408D/406E/W-S-610D|NEMA/ANSI FB-1|UL 514B/File No. E170258 |
Application |
For use with rigid/EMT/IMC conduit, to provide access to conductors for pulling, splicing and maintece, suitable for use in concrete and wet locations |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_1181_Catalog.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_LB1SSCG_Datasheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_1181_Warranty.pdf
