Southwire® RDL/6RND/12/5CTS

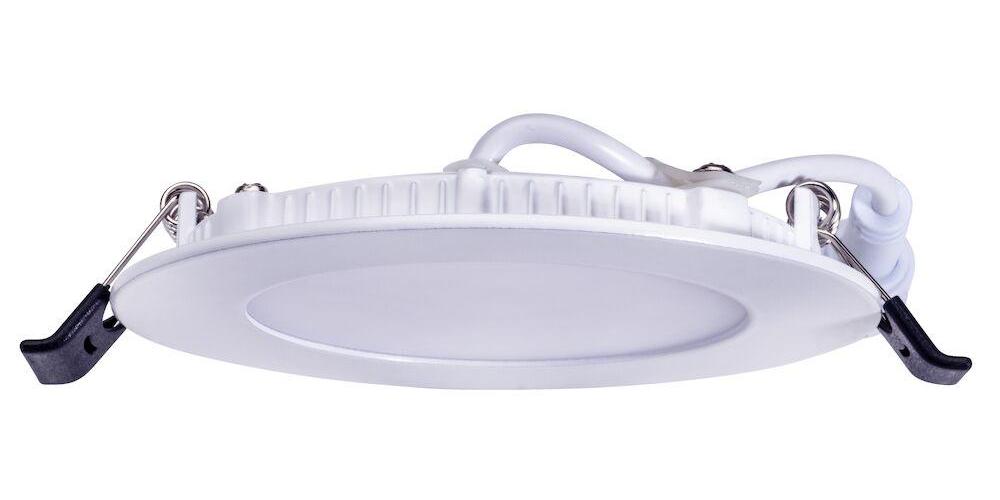

Southwire® RDL/6RND/12/5CTS Slim Fit Recessed Downlight, LED Lamp, 120 V
Brand: Southwire®
Item ID: 488415
MPN: RDL/6RND/12/5CTS
Login for Price
Features
- Enhanced low profile design with 1/2 in ultra-thin white aluminum die-cast trim and acrylic lens
- Easy to install with spring clips and quick-connects without the need of housings
- Remote J-box provides flexibility in mounting
Description

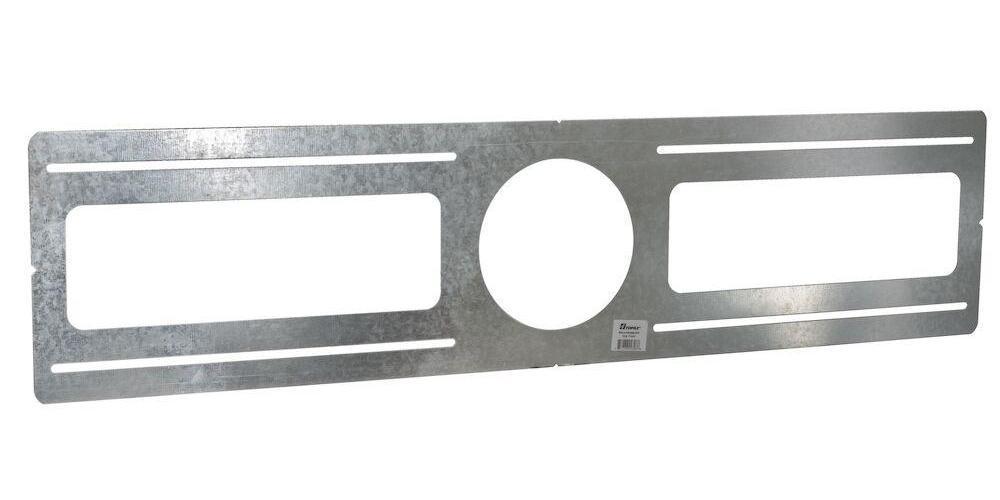

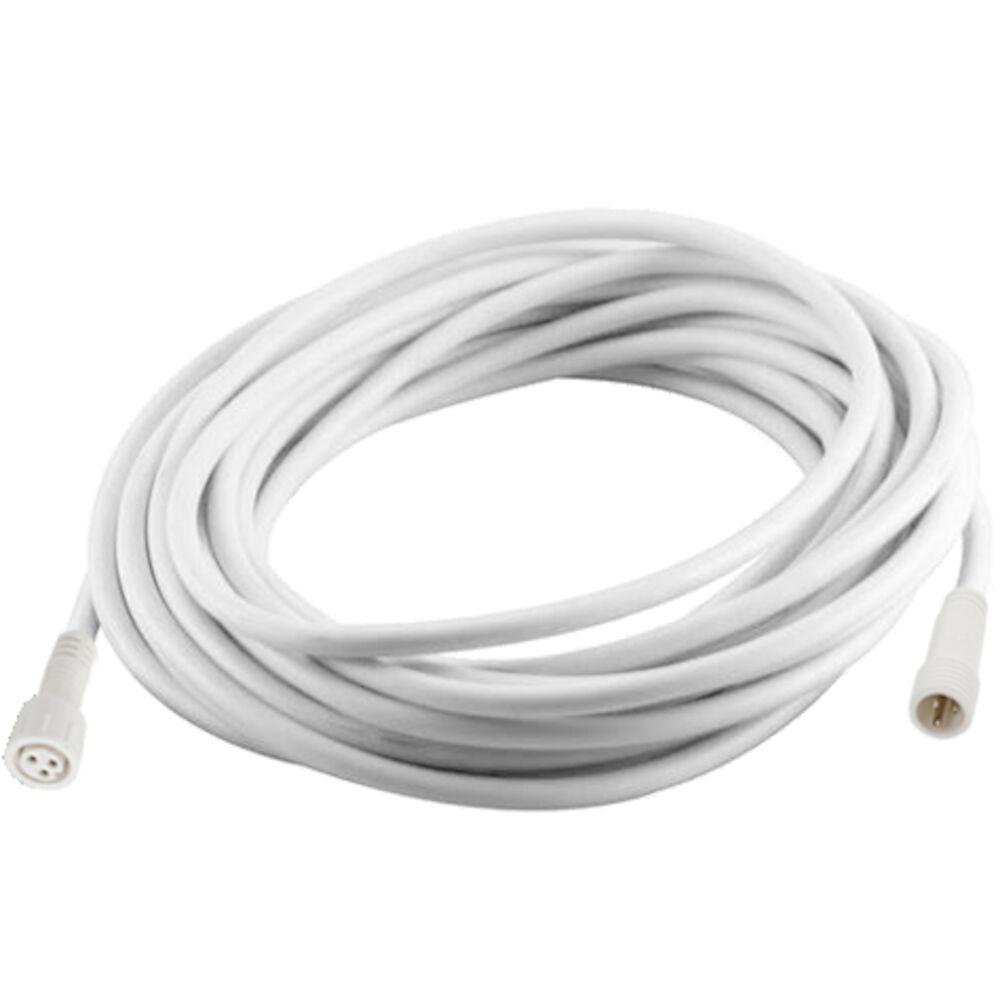

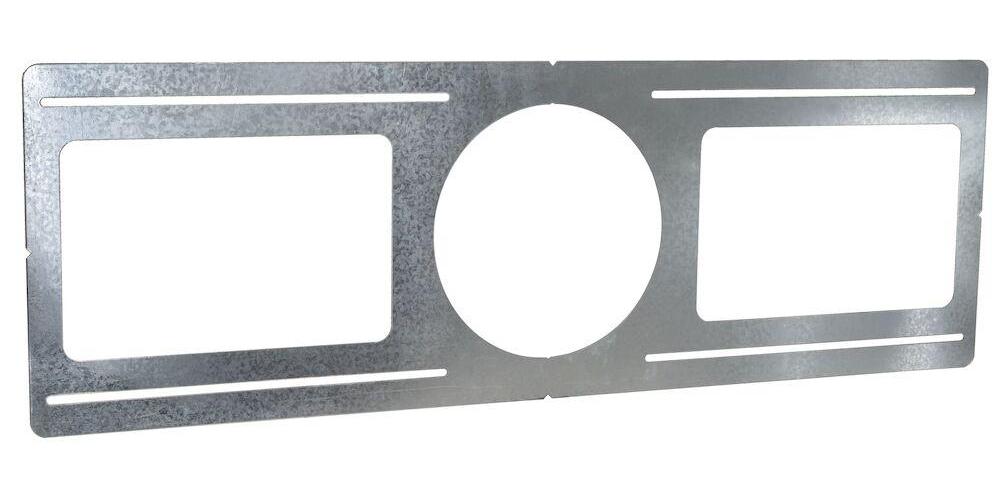

Topaz 6 Slim Fit 12W, Recessed Downlight is now 5 CCT selectable. Choose from five color temperatures with one convenient switch, right on the job site. The improved half-inch profile design is approved for IC and non-IC applications. Quick-connects and the remote J-box offer easy installation. Extension cables and frame-in kits allow for versatile applications in new construction and retrofit projects.
Southwire®, RDL/6RND/12/5CTS, Recessed Downlight, Slim Fit, 120 V, 0.15 A, LED Lamp, 12 W Lamp, 50000 hr Average Life, 90 CRI, Acrylic Lens, 850 Lumens
Specifications
Amperage Rating |
0.15 A |
Average Life |
50000 hr |
Color Rendering Index (CRI) |
90 |
Lamp Type |
LED |
Lamp Wattage |
12 W |
Lens Type |
Acrylic |
Lumens |
850 Lumens |
Type |
Slim Fit |
Voltage Rating |
120 V |
Standard Approval |
ASTM-E283 |
Application |
For use in insulated ceiling and non-insulated ceiling |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Southwire_Topaz_RDL_6RND_12HL_5CTS_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Southwire_Topaz_RDL_6RND_12HL_5CTS_Installation_Manual.pdf
