Southwire - Topaz T3SSCG

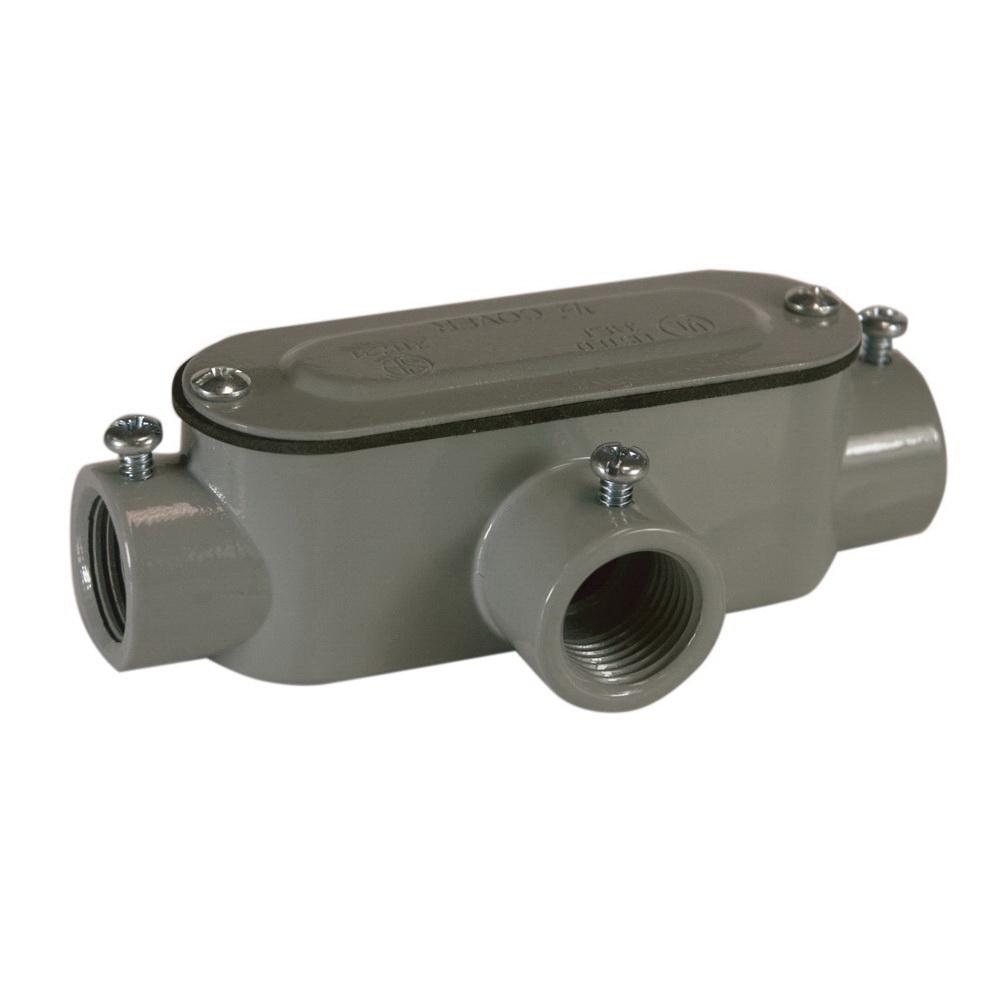

Southwire - Topaz T3SSCG Type T Combination Conduit Body With Stamped Steel Cover, Neoprene Rubber Gasket, 1 in Hub, Die Cast Aluminum, Powder Coated
Brand: Southwire - Topaz
Item ID: 480722
MPN: T3SSCG
Login for Price
Features
- NPT tapered threaded hubs
- NEMA FB-1 rated for wet locations use with threaded rigid metal conduit only
Description
Southwire - Topaz EMT and rigid combo T type conduit body, with cover and gasket features aluminum construction with a powder coated body and cover for enhanced durability. Smooth, rounded integral bushings in hubs offers protection for conductor insulation. Excellent ground continuity and corrosion resistance, lightweight aluminum construction.
Southwire - Topaz Conduit Body, Type T Combination, 1 in Hub, 3 Hubs, FNPT, Wall Mount, Die Cast Aluminum, Powder Coated, 7.06 in L x 2.56 in W x 1.88 in H
Specifications
Connection Type |
FNPT |
Dimensions |
7.06 in L x 2.56 in W x 1.88 in H |
Finish |
Powder Coated |
Hub Size |
1 in |
Material |
Die Cast Aluminum |
Mounting Type |
Wall |
Number of Hubs |
3 |
Type |
Type T Combination |
Standard Approval |
UL File No. E170258|CSA Certified|UL 514B|Federal Specification No. A-A-50552|NEMA/ANSI FB-1|Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D |
Application |
For use with rigid/EMT/IMC conduit, to provide access to conductors for pulling, splicing and maintece, suitable for use in concrete and wet locations |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_1181_Catalog.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_T1SSCG_Datasheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Topaz_1181_Warranty.pdf
