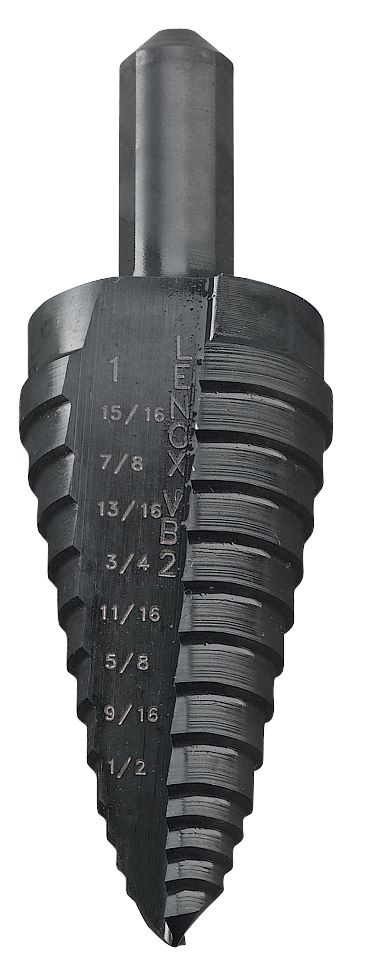

Lenox® 30882VB2
Lenox® Vari-Bit® 30882VB2 Step Drill Bit, 1/2 in Dia Min Hole, 1 in Dia Max Hole, 9 Steps, HSS, 9 Hole Sizes, 3/8 in Shank
Brand: Lenox®
Item ID: 461576
MPN: 30882VB2
Login for Price
Features
- Accurate, patented two flute design with burr-free holes, cuts fast, clean and round holes
- Split point design for faster penetration and less walking
- Steam oxide coating adds durability
- Enhanced flute design removes chips rapidly
- Eliminates the problem of tip breakage on standard drill bit
- Use of LENOX® BANDSAW PROTOOL Lube® recommended to extend tool life
- Starts On Contact
- Long Tool Life
- E6 Piece Vari-Bit Step Drill Bit Kit Vb1, Vb2, Vb6, Vb7, Vb8, Vb11
Description
Lenox® Vari-Bit® Step Drill Bit, Imperial, 1/2 in Diameter Minimum Hole, 1 in Diameter Maximum Hole, 3 in Overall Length, 9 Steps, 1/16 in Step Depth, 9 Hole, 2 Flutes, 3/8 in Shank, Round with 3-Flat Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Oxide, Applicable Materials: Most Metals and Stainless Steel
Specifications
Applicable Materials |
Most Metals and Stainless Steel |
Cutting Direction |
Right Hand |
Cutting Edge Material |
HSS |
Drill Diameter Measurement System |
Imperial |
Finish |
Steam Oxide |
Material |
HSS |
Maximum Hole Diameter |
1 in |
Minimum Hole Diameter |
1/2 in |
Number of Flutes |
2 |
Number of Hole Sizes |
9 |
Number of Steps |
9 |
Overall Length |
3 in |
Point Angle |
135 deg |
Point Type |
Split |
Shank Size |
3/8 in |
Shank Type |
Round with 3-Flat |
Step Depth |
1/16 in |
Standard Approval |
ARRA Compliant|Buy American Act Compliant |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lenox_30881_Catalog.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6bae5bb6308e6ec9f90da986911740f6039f089fac67cb575e81d13180701825.pdf
