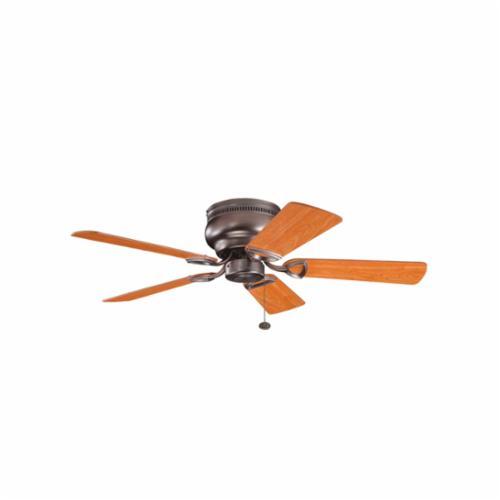

Kichler® 339017OBB
Kichler® 339017OBB Stratmoor 339017 Traditional Ceiling Fan, 42 in Blade, 12 deg Blade Pitch, MDF/Steel Housing, Wood Blade, 4098/2880/1538 cfm Flow Rate
Brand: Kichler®
Item ID: 404070
MPN: 339017OBB
Login for Price
Features
- Walnut/light cherry blade finish
- 153 x 12 mm motor size
- Flush mount
- 9-1/4 in W hanging
- 8-3/4 in Dia base backplate
- 12 in L lead wire
- Without remote control box
- Oil brush bronze finish
Description
This 42 in Stratmoor fan features a timeless, oil brushed bronze finish that will effortlessly blend with your existing styling and accent a range of spaces in your home.
Kichler® Ceiling Fan, Traditional, Series: Stratmoor 339017, Light Kit: No, 42 in Blade, 12 deg Blade Pitch, 4098/2880/1538 cfm Flow Rate, 240/169/87 rpm Speed, 59/29/10 W Power, 120 VAC, 0.49/0.36/0.21 A, 60 Hz Frequency, 3 Speed, 5 Blades, 69/101/162 cfm/W Air Flow Efficiency, Pull Chain Control, Non-Reversible Blade, Wood Blade, AC Induction Motor, MDF/Steel Housing Material, 8-1/4 in Overall Height, 7-1/2 ft Minimum Ceiling Height, 6-1/2 in Blade to Ceiling Height, Import
Specifications
Air Flow Efficiency |
69/101/162 cfm/W |
Amperage Rating |
0.49/0.36/0.21 A |
Blade Material |
Wood |
Blade Pitch |
12 deg |
Blade Size |
42 in |
Blade Type |
Non-Reversible |
Blade to Ceiling Height |
6-1/2 in |
Control Type |
Pull Chain |
Domestic/Import |
Import |
Flow Rate |
4098/2880/1538 cfm |
Frequency Rating |
60 Hz |
Housing Material |
MDF/Steel |
Light Kit |
No |
Minimum Ceiling Height |
7-1/2 ft |
Motor Type |
AC Induction |
Number of Blades |
5 |
Number of Speeds |
3 |
Overall Height |
8-1/4 in |
Power Rating |
59/29/10 W |
Series |
Stratmoor 339017 |
Speed |
240/169/87 rpm |
Standard Approval |
CSA Certified|UL Listed for Dry Locations |
Application |
For indoor applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b001ac7a96a9c4e6bf183bb58d869dd56b015cb3b23f6e6dbf55b786f177fc66.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_76bd7b72a89243301d8348c86d2d11e8837fb33dc496d92d0061b1e2fbe0705c.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Kichler_339017OBB_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Kichler_339017OBB_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Kichler_42546CH_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Kichler_42546CH_Specification_Sheet.pdf
Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_400ccb8296be36d9bc643b7e7b61fc087983ad04a1061924b8522d2b0a4cb395.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Kichler_339017OBB_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Kichler_339017OBB_Warranty_Information.pdf
