Vericom HT184-02547

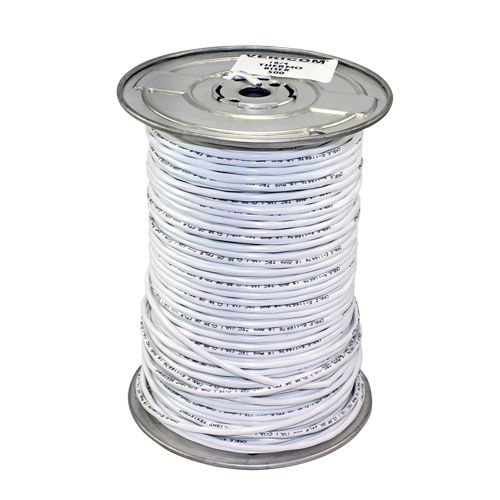

Vericom HT184-02547 Thermostat Cable, Spool Packaging, 300 V, (4) 18 AWG Solid Copper Conductor, 500 ft L
Brand: Vericom
Item ID: 66984
MPN: HT184-02547
Login for Price
Features
- Suitable for residential and commercial use
- Standard color coded conductor jackets
Description
Designed especially for low voltage applications such as thermostats, our thermostat cable is manufactured for residential or commercial use. The standard color coded conductor jackets make installation simple and accurate. The 4 conductors are made from 18 AWG solid copper for optimum conductivity. This cable also features a UL listed, CL2R white PVC jacket.
Vericom Thermostat Cable, Spool Packaging, 300 V, 4 Conductors, Solid Copper Conductor, 18 AWG Conductor, 3.5 mm OD, 500 ft Length, 6.5 Ohm/m at 20 deg C Resistance, Polypropylene Insulation, PVC Jacket, White Jacket, -20 to 60 deg C
Specifications
Conductor Size |
18 AWG |
Conductor Type |
Solid Copper |
Insulation Material |
Polypropylene |
Jacket Color |
White |
Jacket Material |
PVC |
Length |
500 ft |
Number of Conductors |
4 |
Outside Diameter |
3.5 mm |
Packaging Type |
Spool |
Resistance |
6.5 Ohm/m at 20 deg C |
Temperature Rating |
-20 to 60 deg C |
Voltage Rating |
300 V |
Standard Approval |
RoHS Compliant|UL 13|UL 1685 Type CL2R|NEC Article 725|OSHA NEC Type CL2R |
Application |
For thermostats, HVAC controls, heat pumps, intercom systems, remote control units, doorbells, alarms and other low voltage applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7014d2e66d87b8bafd61c83e9bc03585e124b239c99889242659d4fc26586ec2.pdf
