WAC 5031-30BZ

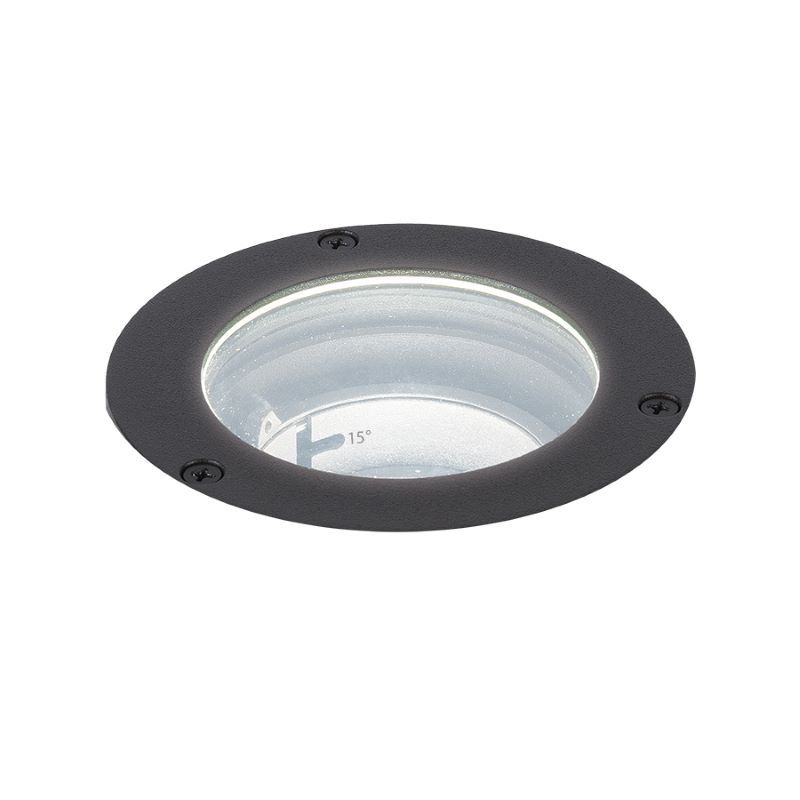

WAC 5031-30BZ Tyler Pathway Lighting, (1) Lamps LED Lamp, 12 W Fixture, 12 VAC, Bronze Housing
Brand: WAC
Item ID: 454936
MPN: 5031-30BZ
Login for Price
Features
- Tiltable and adjustable beam angle
- Integral dimmer
- Drive over up to 4500lbs
- Available Concrete Pour Kit
- 6ft lead wire and direct burial gel-filled wire nuts included
- Maintains constant lumen output against voltage drop
- MLV dimmable with remote MLV dimmer
- Transformer required
Description
WAC, 5031-30BZ, Pathway Lighting, Series: Tyler, 12 VAC, 12 W Fixture, LED Lamp, 1 Lamps, 55000 hr Average Life, 3000 K Color Temperature, 85 CRI, Integral Dimming Ballast, Clear Glass Lens, 580 Lumens, 6 ft Lead Cord, IP67 Enclosure, Recessed Mounting, Aluminum Housing Material, Bronze Housing Finish, 6.25 in H x 4.58 in W x 4.58 in L Dimensions
Specifications
Average Life |
55000 hr |
Ballast Type |
Integral Dimming |
Color Rendering Index (CRI) |
85 |
Color Temperature |
3000 K |
Cord Type |
6 ft Lead |
Dimensions |
6.25 in H x 4.58 in W x 4.58 in L |
Enclosure Type |
IP67 |
Fixture Wattage |
12 W |
Housing Finish |
Bronze |
Housing Material |
Aluminum |
Lamp Type |
LED |
Lens Type |
Clear Glass |
Lumens |
580 Lumens |
Mounting Type |
Recessed |
Number of Lamps |
1 |
Series |
Tyler |
Voltage Rating |
12 VAC |
Standard Approval |
cULus Listed |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WAC_5031_30BZ_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WAC_5031_30BZ_Instruction_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WAC_5031_30BZ_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WAC_5031_30BZ_Specification_Sheet.pdf
