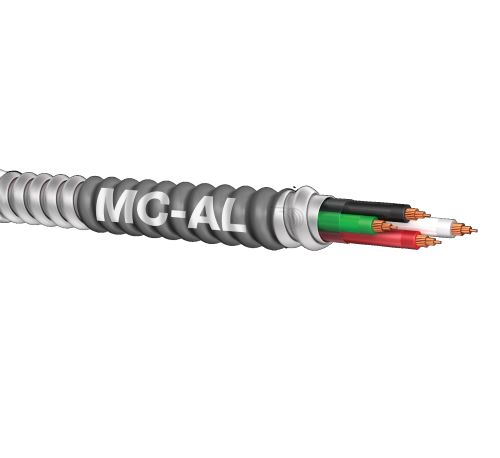

WIRE 10/3 MC ALUMINUM JACKET - 1000FT Reel
10/3 MC Cable, Aluminum Jacket, 1000 ft – Durable for indoor branch circuits and power distribution.
Brand: WIRE
Item ID: 358748
MPN: 10/3 MC ALUMINUM JACKET - 1000FT Reel
Login for Price
Features
- Black/white/red conductor color
Description
SmartColorID® Armor Conductor Cable, Type MC, Reel Packaging, 600 VAC, 30 A, 4 Conductors, Ground Solid Aluminum Conductor, 10 AWG Conductor, 1000 ft Length, 90 deg C
Specifications
Amperage Rating |
30 A |
Conductor Size |
10 AWG |
Conductor Type |
Ground Solid Aluminum |
Length |
1000 ft |
Number of Conductors |
4 |
Packaging Type |
Reel |
Temperature Rating |
90 deg C |
Type |
Type MC |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|REACH Compliant|UL File No.E-301130|Buy American Act Compliant |
Application |
For services, feeders and branch circuits in industrial, commercial and multi-residential building applications |
