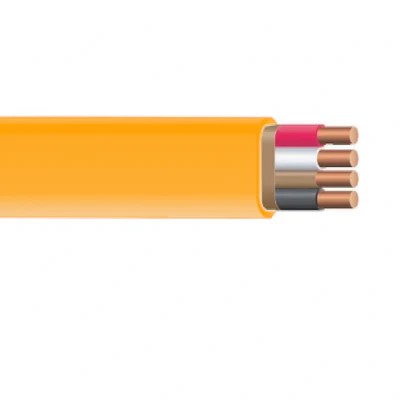

WIRE 10/3 NM-B W/GRD - 1000FT REEL
10/3 NM-B Cable with Ground, 1000 ft – Ideal for indoor wiring in branch circuits and appliances.
Brand: WIRE
Item ID: 73450
MPN: 10/3 NM-B W/GRD - 1000FT REEL
Login for Price
Features
- Color code polyvinyl chloride compound meeting the required thickness or type THHN or THWN-2 with a heat stabilized nylon jacket rated for 90 deg C is dry locations
- Solid 14 to 10 AWG soft, uncoated copper conductor per ASTM-B3
- Soft, uncoated copper grounding conductor per ASTM-B3 or ASTM-B8
- A 30 mil, color coded, flame retardant and moisture resistant PVC jacket is applied over the completed assembly
Description
Non-Metallic Sheathed Cable, Type NM-B, Reel Packaging, 600 VAC, 30 A, 4 Conductors, Solid Ground Copper Conductor, 10 AWG Conductor, 0.43 in OD, 1000 ft Length, PVC Insulation, PVC Jacket, Orange Jacket, 90 deg C
Specifications
Amperage Rating |
30 A |
Conductor Size |
10 AWG |
Conductor Type |
Solid Ground Copper |
Insulation Material |
PVC |
Jacket Color |
Orange |
Jacket Material |
PVC |
Length |
1000 ft |
Number of Conductors |
4 |
Outside Diameter |
0.43 in |
Packaging Type |
Reel |
Temperature Rating |
90 deg C |
Type |
Type NM-B |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|REACH Compliant|UL File No.E-123775|NEMA RV 2-2011|Buy American Act Compliant |
Application |
For residential wiring of luminaries, devices and appliances |
