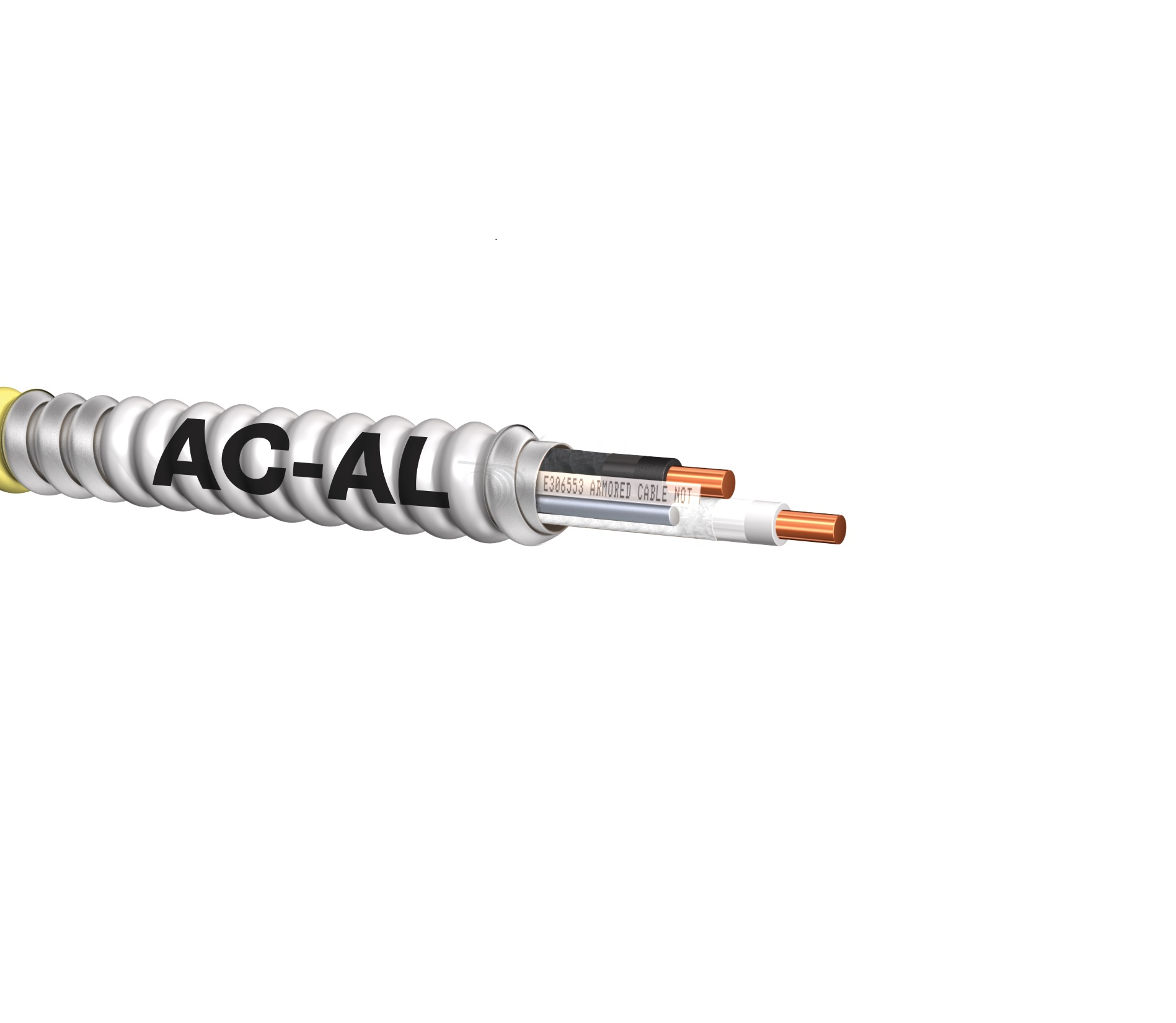

WIRE 12/2 BX ALUMINUM JACKET
12/2 BX Aluminum Jacket 250 ft Coil – Armored cable for branch circuits, offering protection for indoor installations.
Brand: WIRE
Item ID: 6494
MPN: 12/2 BX ALUMINUM JACKET
Login for Price
Features
- Interlocked aluminum armor is applied over the assembly
Description
Encore Wire's Armored Cable is available in sizes 14 AWG through 2 AWG. Armored Cable is constructed with soft-drawn copper, Type THHN conductors. Each insulated conductor is individually wrapped with a moisture-resistant paper covering which has flame retardant properties. These conductors, are cabled together to form the cable core. 16 AWG solid aluminum bond wire is placed longitudinally underneath the armor and remains in contact with the armor throughout the entire length. Interlocked aluminum armor is applied over the entire assembly.
SmartColorID® Armor Conductor Cable, Type AC-AL, EZ Pack Packaging, 600 VAC, 2 Conductors, Solid Aluminum Conductor, 12 AWG Conductor, 0.451 in OD, 250 ft Length, 90 deg C
Specifications
Conductor Size |
12 AWG |
Conductor Type |
Solid Aluminum |
Length |
250 ft |
Number of Conductors |
2 |
Outside Diameter |
0.451 in |
Packaging Type |
EZ Pack |
Temperature Rating |
90 deg C |
Type |
Type AC-AL |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|REACH Compliant|UL File No.E-306553|Buy American Act Compliant |
Application |
For services, feeders and branch circuits in industrial, commercial and multi-residential building applications |
