WIRE 12/2 HOSPITAL GRADE

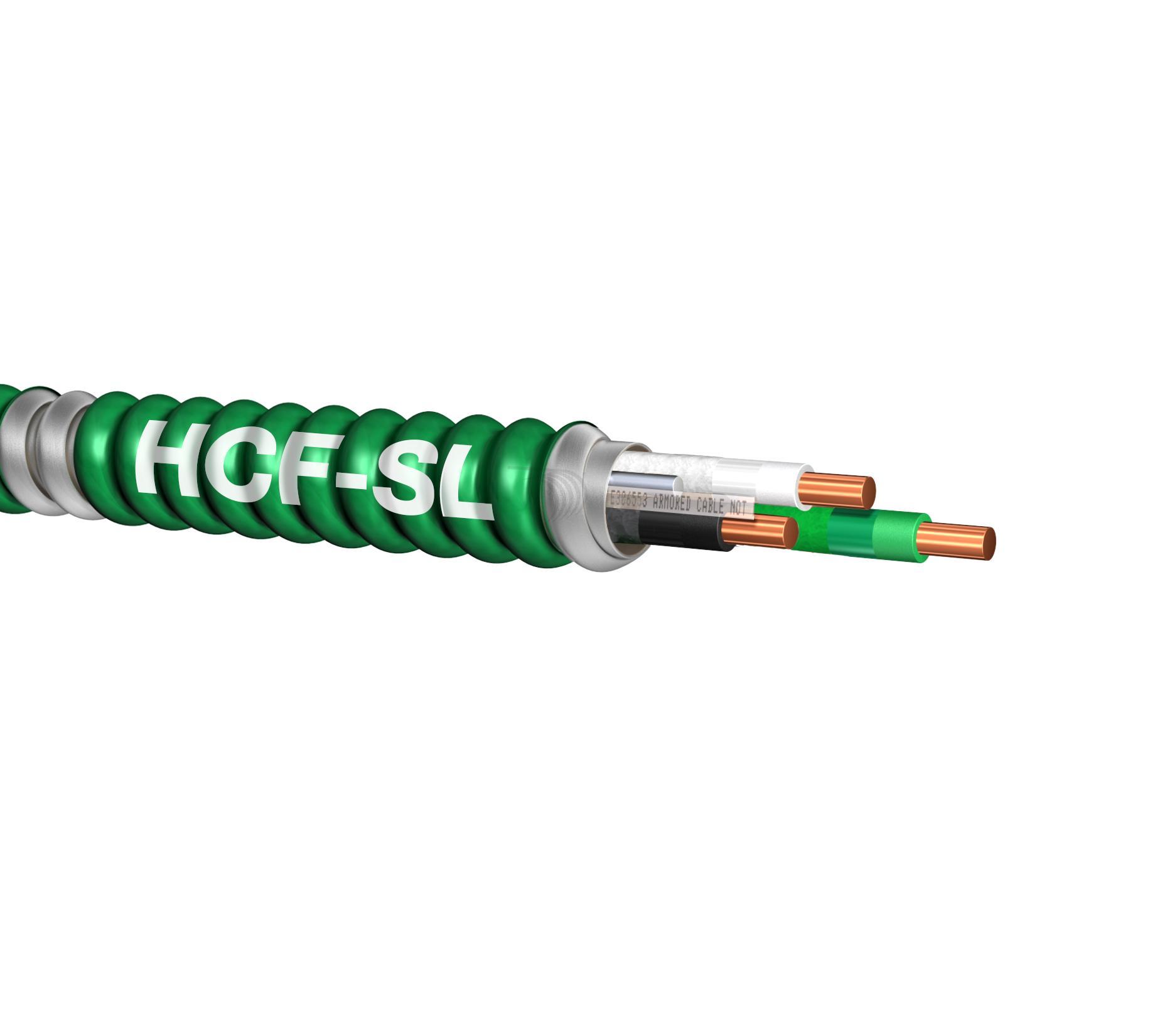

12/2 Hospital AC HCF-SL Steel Jacket Blk/Wht Sol - 1000ft Reel: Code-compliant cable for healthcare wiring.
Brand: WIRE
Item ID: 480810
MPN: 12/2 HOSPITAL GRADE
Login for Price
Features
- Constructed with soft drawn copper, type THHN conductor
- Each insulated conductor is individually wrapped with a moisture-resistant paper covering which has flame retardant properties
- Interlocked steel armor is applied over the entire assembly
Description
SmartColorID® Armor Conductor Cable, Type AC-SL-HCF, Reel Packaging, 600 VAC, 20 A, 3 Conductors, Ground Solid Copper Conductor, 12 AWG Conductor, 0.471 in OD, 1000 ft Length, 90 deg C
Specifications
Amperage Rating |
20 A |
Conductor Size |
12 AWG |
Conductor Type |
Ground Solid Copper |
Length |
1000 ft |
Number of Conductors |
3 |
Outside Diameter |
0.471 in |
Packaging Type |
Reel |
Temperature Rating |
90 deg C |
Type |
Type AC-SL-HCF |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|REACH Compliant|UL File No.E-306553|Buy American Act Compliant |
Application |
For commercial applications requiring branch and feeder circuits for non-essential, general purposes electrical systems in patient care areas of health care facilities or for use in essential electrical systems |
