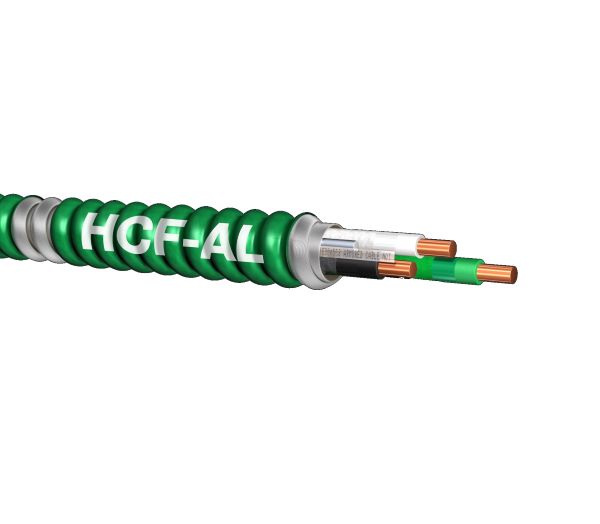

WIRE 12/2 HOSPITAL MC ALUMINUM
12/2 Hospital MC Aluminum – Armored cable with enhanced grounding, ideal for hospital-grade branch circuits and medical environments.
Brand: WIRE
Item ID: 438199
MPN: 12/2 HOSPITAL MC ALUMINUM
Login for Price
Features
- Encore metal clad cable is constructed with soft drawn copper, type THHN/THWN conductor rated 90 deg C dry locations
- All conductor are individually wrapped with flame retardant colored protective paper with print legend and cable together to for the cable core
- Interlocked aluminum armor is applied over the assembly
Description
SmartColorID® Armor Conductor Cable, Type MC HCF-SG, Reel Packaging, 600 VAC, 20 A, 3 Conductors, Solid Aluminum Conductor, 12 AWG Conductor, 0.515 in OD, 1000 ft Length, 90 deg C
Specifications
Amperage Rating |
20 A |
Conductor Size |
12 AWG |
Conductor Type |
Solid Aluminum |
Length |
1000 ft |
Number of Conductors |
3 |
Outside Diameter |
0.515 in |
Packaging Type |
Reel |
Temperature Rating |
90 deg C |
Type |
Type MC HCF-SG |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|REACH Compliant|UL File No.E-301130|Buy American Act Compliant |
Application |
For applications requiring branch and feeder circuits for non-essential, general purposes electrical systems in patient care areas of health care facilities or for use in essential electrical systems and commercial applications |
