WIRE 12/2 MC ALUMINUM

Features

• SIMpull Technology: Reduces pulling force for easier installation.
• Lightweight Aluminum Armor: Provides durability while minimizing weight.
• THHN/THWN Insulation: Ensures reliable performance in various environments.
• Green Insulated Ground Wire: Facilitates proper grounding.
• Versatile Applications: Suitable for concealed or exposed installations.
• Compliance: Meets UL standards and NEC requirements; listed for use in UL 1, 2, and 3-hour through-penetration firestop systems.

Specifications

• Manufacturer: Southwire
• Product Name: 12/2 MC Aluminum SIMpull Cable
• Conductor Size: 12 AWG
• Conductor Material: Solid Copper
• Number of Conductors: 2
• Insulation Type: THHN/THWN
• Ground Wire: Green Insulated
• Armor Material: Aluminum Interlocked
• Voltage Rating: 600V
• Length: 250 ft Coil
• Outside Diameter: 0.471 inches
• Weight: 107 lbs per 1,000 ft
• Temperature Rating: 90°C (dry), 75°C (wet)
• Certifications: UL Listed, NEC Compliant
• Country of Origin: USA

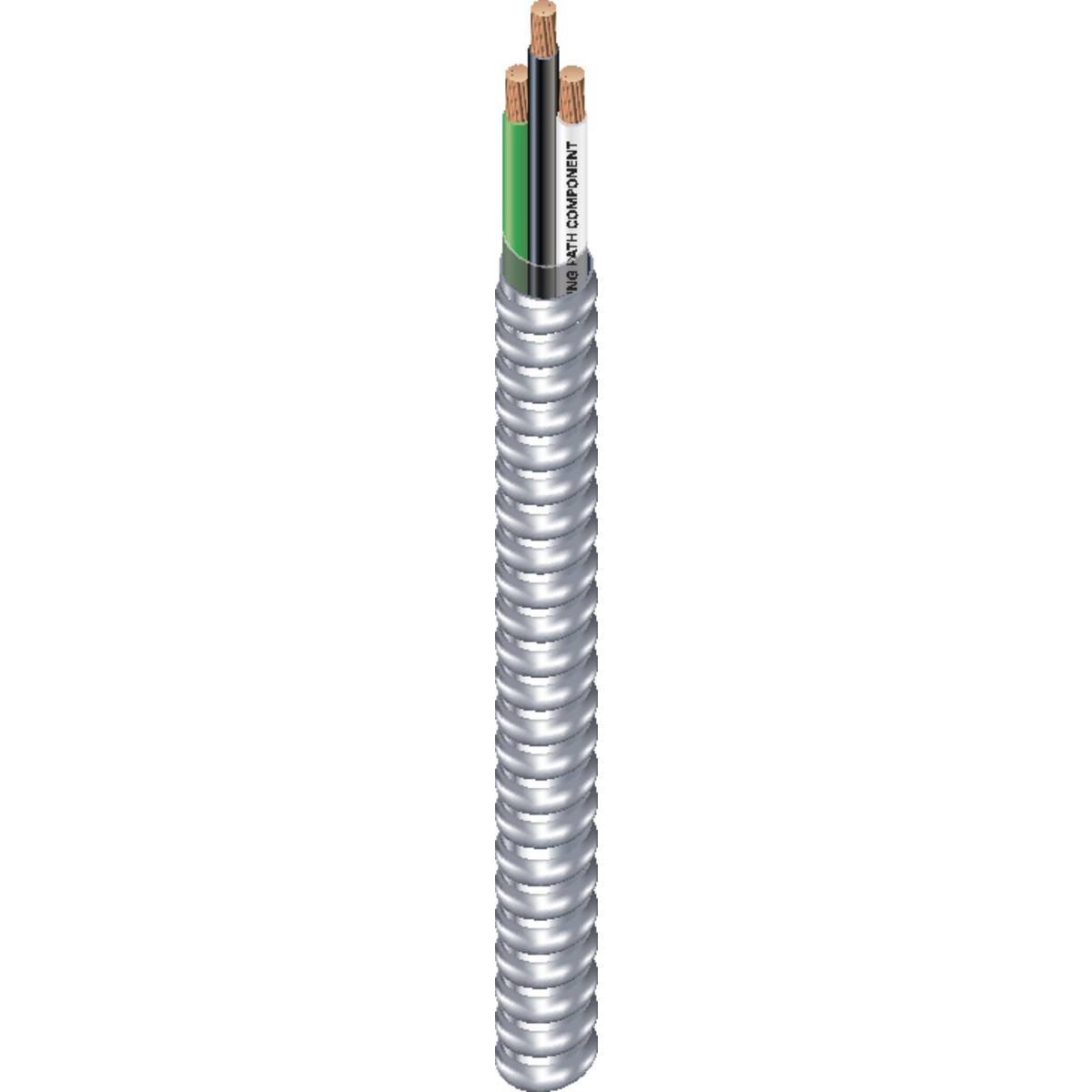

The Southwire 12/2 MC Aluminum SIMpull Cable features two 12 AWG solid copper conductors with THHN/THWN insulation, a green insulated ground wire, and a lightweight aluminum interlocked armor. Rated for 600 volts, this cable is suitable for branch, feeder, and service power distribution in commercial, industrial, institutional, and multi-residential buildings. The SIMpull technology enhances ease of installation by reducing friction during pulls. This cable is UL listed, NEC compliant, and made in America, meeting Buy American and Buy America Act requirements.
